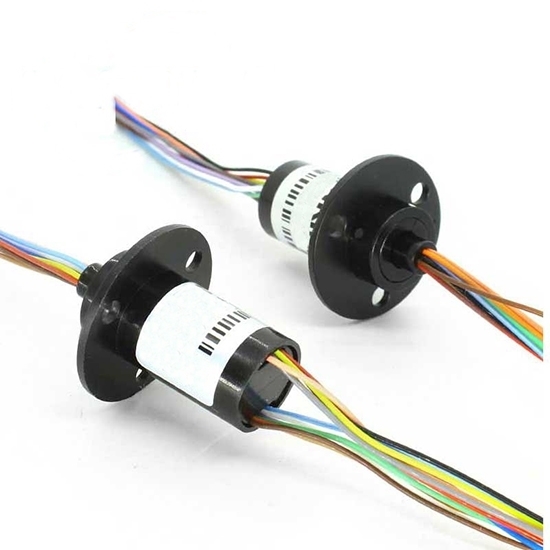

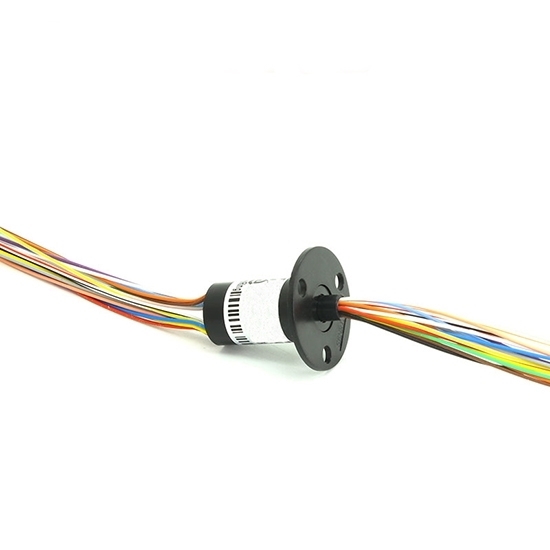

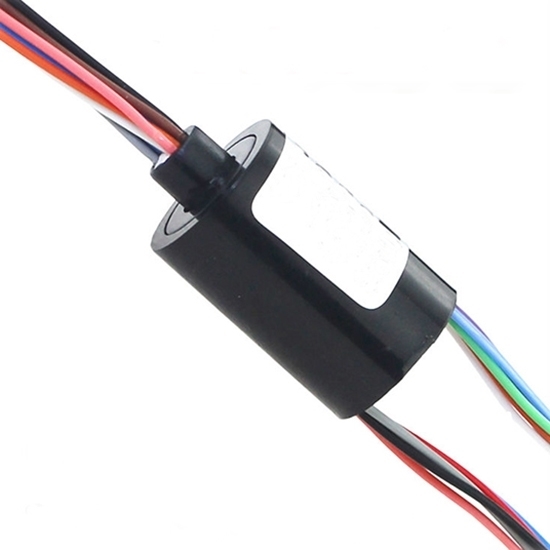

12.5mm Miniature Slip Ring, 2/4 Wires 5A, 6/12/18 Wires 2A

$72.92

Miniature slip ring with quite compact size of 12.5mm outer diameter, can transmit current and electrical signal in 360°

SKU: CHN-MNTSR-125

Free Shipping Worldwide

Delivery date: 6-12 days

Application: High-speed dome, children intelligent toys, stage lights, drones, robots, stabilizer, smart home appliance…

Features

Compact design, other outer diameters of 6.5mm~30mm can be customized.
Adopt advanced processing technology for key materials, military level gold-gold contacts points ensure ultra-low contact resistance and long working life.
Low torque, low loss, low electrical noise, maintenance free.

Specification

Model	CHN-MNTSR-M125
Outer Diameter	12.5mm
Rotating Speed	250 rpm
Working Temp.	-30℃~80℃
Working Humidity	0~85% RH
Contact Material	gold-gold
Housing Material	plastic
Torque	0.05N.m (+0.01N.m/6 circuits)
Working Life	10 millions for ref (depends on working conditions)
Rated Voltage	0~240VAC/VDC
Lnsulation Resistance	≥300MΩ/300VDC
Lead Wire Spec.	refer to model list
Lead Wire Length	standard 150mm (can be customized)
Certification	CE, RoHS
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	<0.01Ω
IP Grade	IP51

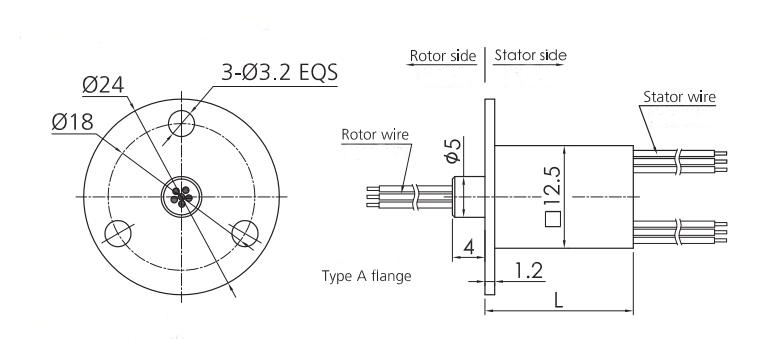

Dimension Drawing of 12.5mm Miniature Slip Ring (Type A Flange)

Dimension Drawing of 12.5mm Miniature Slip Ring (Type C Flange)

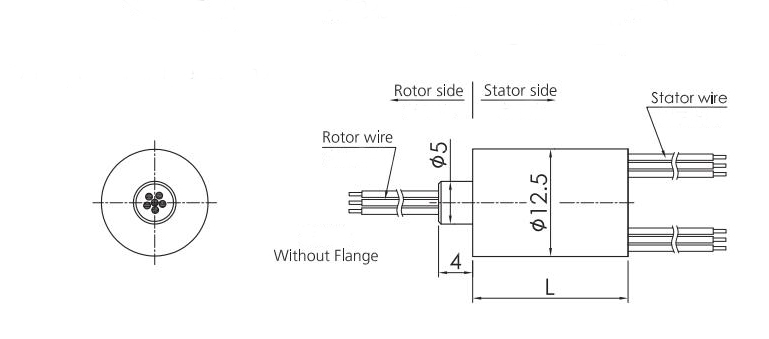

Dimension Drawing of 12.5mm Miniature Slip Ring (No Flange)

Standard Model List

Color Code of Lead Wire

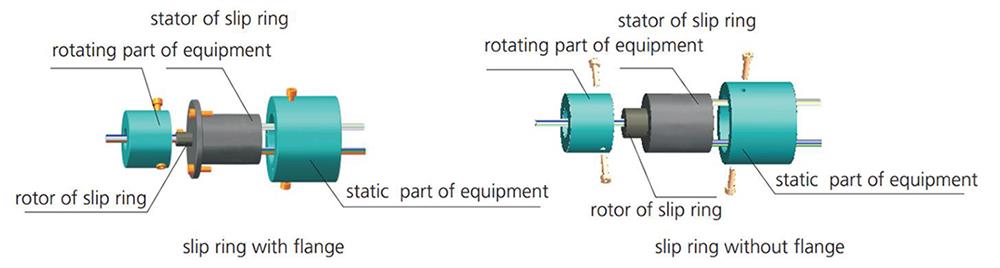

Tips: Miniature Slip Ring Installation

Place the cap of the miniature slip ring on the bushing of the instrument to be installed.
Fix the miniature slip ring rotor part. The miniature slip ring has very low torque, so the rotor does not need to be fixed. Just wire the wires.
Fix the miniature slip ring stator part. Tighten the screws on the flange of the slip ring so that the cap of the slip ring is attached to the device and remains fixed at all times.
