High frequency coaxial slip ring is used transmitting of analog and digital signal, 1 ~ 2 channel, can be used for satellite antenna, vehicle, radar, microwave antenna test bench, etc.

Specification

• Model: CHN-HF0103-17
• Number of Channel: 1 ~ 2 Channel
• Frequency: DC~3GHz, DC~18GHz
• Connector Type: coax RG405 (can add SMA, MCX, MMCX connectors)
• Phase WOW (Max Degree): 1°
• VSWR: 1.7@DC to 3GHz
• VSWR Fluctuation: 0.05
• Insertion Loss: 0.25dB@DC to 1.5GHz, 0.30dB@10 to 3GHz
• Insertion Loss Fluctuation: 0.05dB
• Peak Power: 500W
• Average Power: 200W@1.5GHz, 500W@3GHz
• Rotating Speed: 250 rpm
• Working Life: >10 Millions for Ref (Depends on Working Conditions)
• Starting Torque: 0.5N.cm
• Rotating Torque: 0.5N.cm
• Connector Axial Load: 0.1N
• Connector Radial Load: 0.1N
• Insulating Material: PTFE
• Protection Grade: IP 40 acc. EN 60529
• Electrical Noise: < 0.01Ω
• Work Temperature: -55℃ to +85℃, 95%RH
• Storage Temperature: -55℃ to +85℃, 85%RH

Dimension Drawing (Unit: mm)

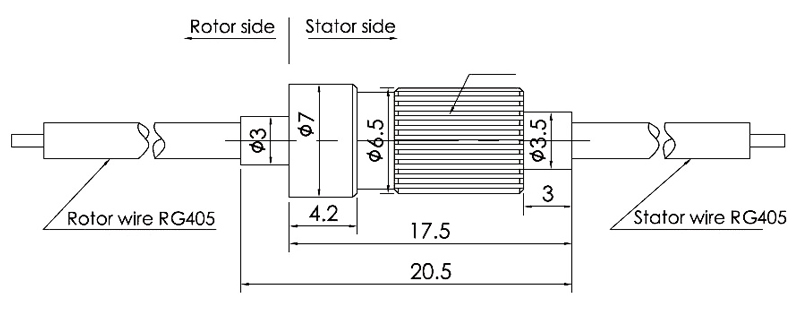

Single Channel, DC~3GHz, OD: 7mm

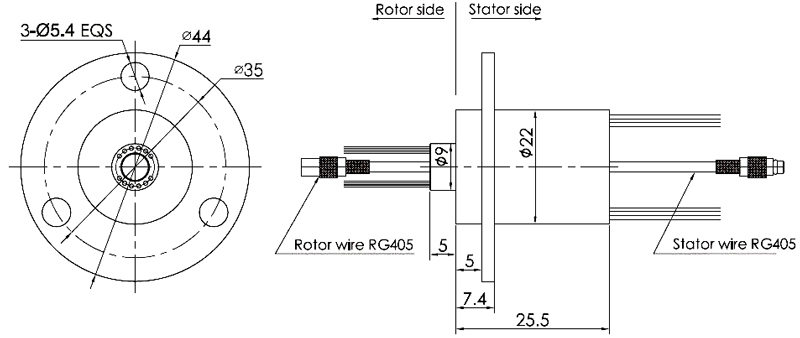

Single Channel, DC~3GHz, OD: 22mm

Standard Model List

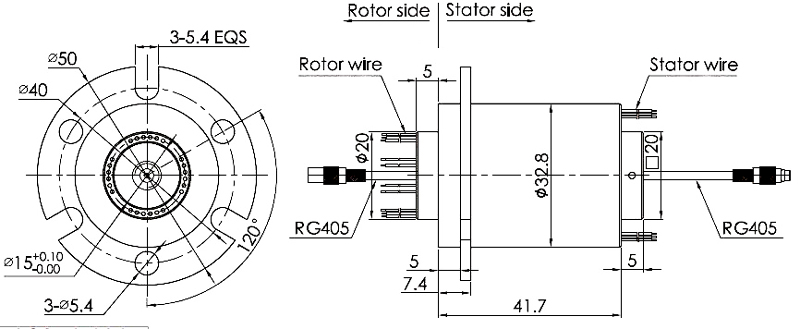

Single Channel, DC~3GHz, OD: 32.8mm

Standard Model List

Note: Please contact us if you have special requirements for ATO slip ring. The package includes the controller. Click ATO High Frequency Slip Ring Catalog (PDF) for more models and specifications.

Tips: What is a high frequency slip ring?

High frequency slip ring is a product developed to meet high-speed serial digital signal and analog signal transmission, which plays a very important role in the entire signal transmission equipment. The maximum transfer rate is 40GHz. It supports the independent transmission of one-way or multi-channel high-frequency signals, and also supports the mixed transmission of high frequency signals and 24V control signals, communication signals, power supply, and fluid media. The high frequency signal adopts a 50 characteristic impedance RF coaxial structure head.
