Features

• Rotating speed is up to 1500 rpm. Customizable speed, hole diameter, circuits wires number, current and other specifications.
• High performance permanent lubricated bearings, high wear resistance and lifetime maintenance free.
• Key materials are made of world advanced technology, high-quality gold-plated rings, ensure reliable transmission of power and signals.
• Low torque, low loss, high stability, long service life.

Specification

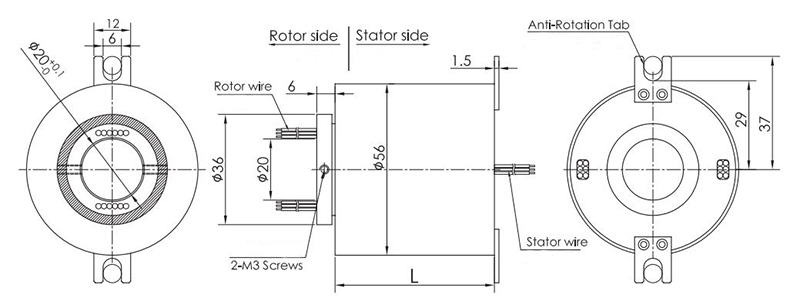

High Speed Electrical Slip Ring Dimension Drawing

Note: The length L please refer to standard model list.

Standard Model List

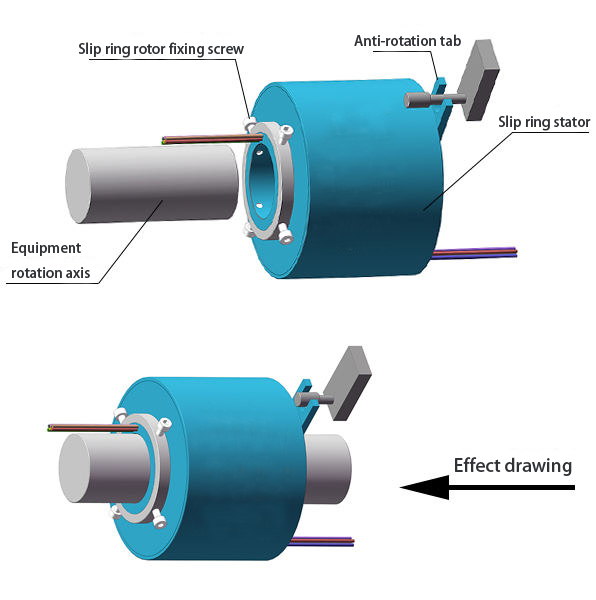

High Speed Through Hole Slip Ring with Anti-Rotation Tab Installation Diagram

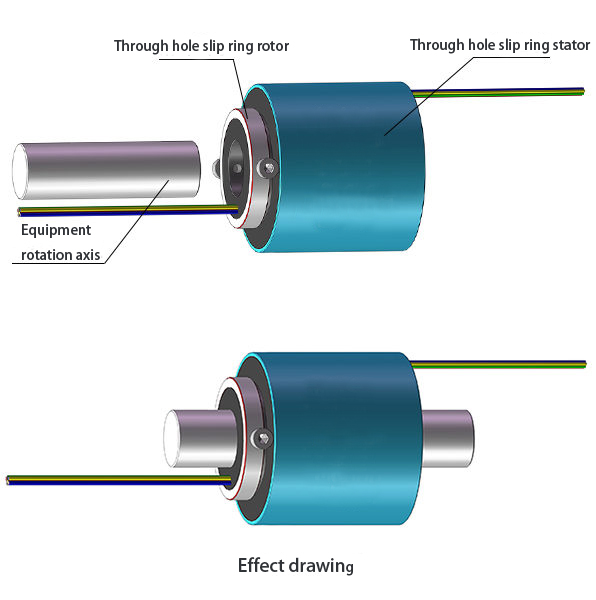

High Speed Through Hole Slip Ring without Anti-Rotation Tab Installation Diagram

Tips: What are the advantages of electrical slip rings?

In the industrial age, any manufacturer hopes to improve product quality and reduce production costs through system equipment. Production equipment must require a various of parts guarantee during operation. Electrical slip ring transmission is one of them. So what are the advantages of slip rings?

First, electrical slip ring is very resistant to interference, especially noise interference. When a machine is running, its signal transmission is likely to be disturbed by noise, which reduces speed or accuracy of signal transmission and affects normal use of the machine. However, if install electrical slip ring connectors to the machine, this problem does not occur because it is very resistant to noise. No matter how much noise the machine makes during operation, it will have no effect on signal transmission of slip rings.

Second, electrical slip ring connector has a long service life. If a device internal functions are always faulty or damaged during production process, it will affect operation of the entire machine system, then affect production of the entire plant. With technology advancement, slip ring now has a very good guarantee of wear resistance and service life while enhancing transmission signal function. Therefore, adding an electrical slip ring connector to production system does allow for better protection of different motors during operation.
