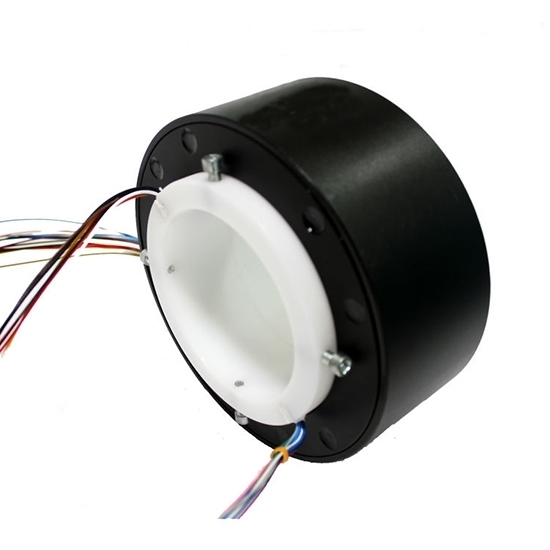

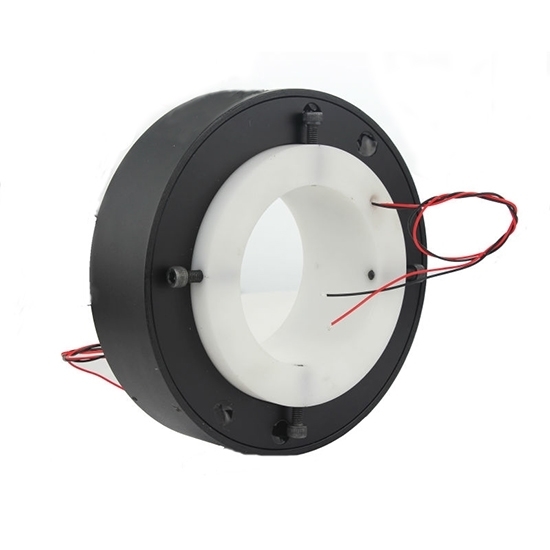

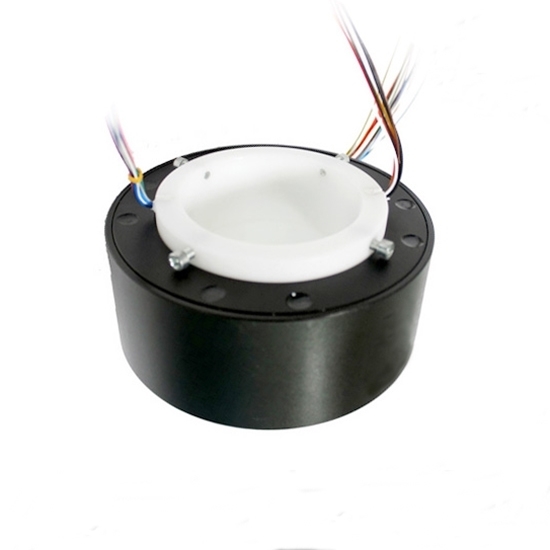

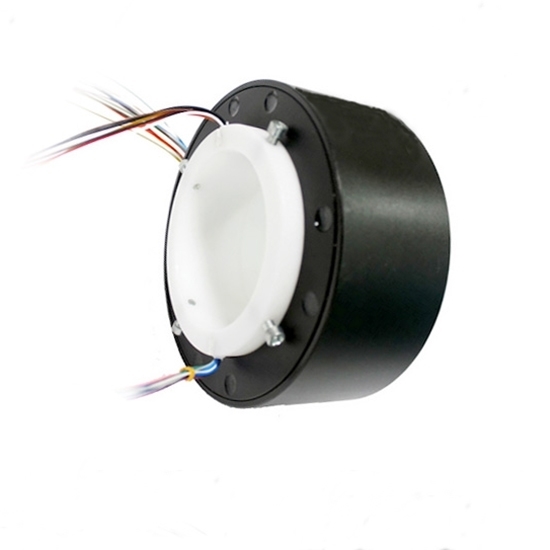

Various specifications such as circuits number, current, signal, inner and outer diameter, rotating speed, lead wire length, etc. are customizable according to requirements, please contact us.

Applications: Automatic welding equipment, metal surface processing equipment, static torque sensors, pressure sensors, wire (network cable) cable production equipment, grinding and dispersing machines, electronic (textile) quality testing equipment, etc., industrial and civil devices that require conductive or transmit signals in rotation.

Specification

Note: Please contact us if you need the flange

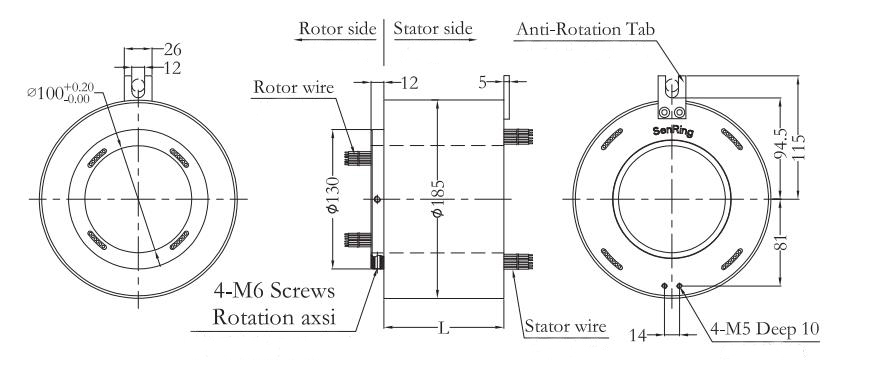

100mm Hole Diameter/185mm Outer Diameter Through Bore Slip Ring Dimension Drawing (unit:mm)

Note: The length L please refer to standard model list.

Product Grade Table

Color Code of Lead Wire

Note: The digital 1 indicates the first wire from rotor side, CHN-THSR-H100185 wire color sequence: BLK/BRN/RED/ORG/WHT/GRN, 24 color wires as one group, if more than 24wires, repeat as sequence, use number tube to tell group 1#, 2#....

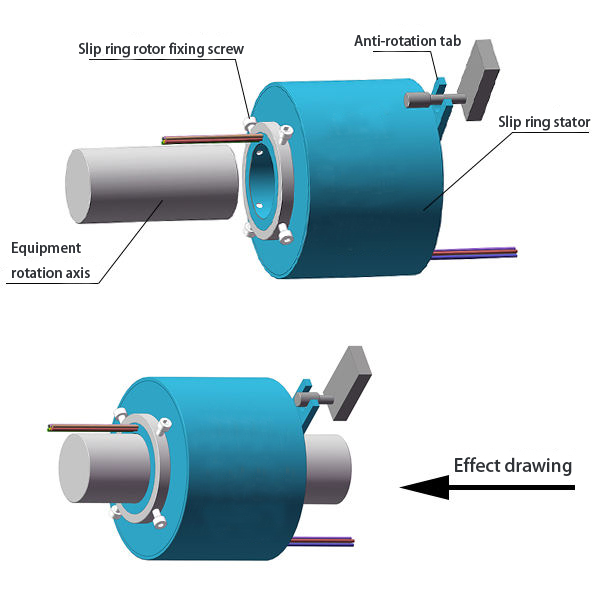

Through Bore Slip Ring with Anti-Rotation Tab Installation Diagram

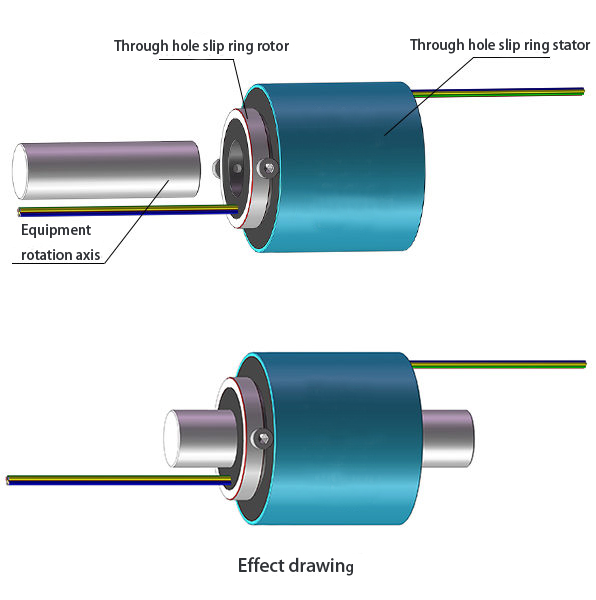

Through Bore Slip Ring without Anti-Rotation Tab Installation Diagram

Tips: Electrical slip ring application in Ethernet signals transmission.

Electrical slip rings can transmit Ethernet signals. The Ethernet slip ring is also known as the network cable slip ring. It is a slip ring that can rotate 360° and transmit Ethernet signals, enabling LAN communication to transmit 250Mhz frequency signals. According to different transmission network speeds, Ethernet slip rings can be divided into 100M Ethernet slip rings and Gigabit Ethernet slip rings.

The Ethernet slip ring works like an electrical slip ring, it is a process of transmitting Ethernet signals and current between the rotating part (rotor) and the fixed part (stator). The Ethernet slip ring transmits Ethernet signals based on the electrical slip ring. The passages between rotor and stator are independent. In addition, it can also mix transmit high and low frequency signals and currents.
Ethernet slip ring features:

• Can mix transmit power, current, data and other signals, and can work together with gas/liquid/electric rotary joints.
• Can transport Ethernet 10M or 100M or 1000M Base T. Can transport 8 Ethernet channels simultaneously.
• Can transmit different types of signals such as USB, HDMI, and fiber.
• No packet loss, no serialization, low loss, high performance stability, long working life.

The Ethernet slip ring is suitable for electromechanical devices that transmit electricity without any restrictions and transmit various data signals and currents. It is widely used in video surveillance systems, network cable, serial communication and other fields.
