Home > Transmission & Actuator > Slip Ring

Send Inquiry

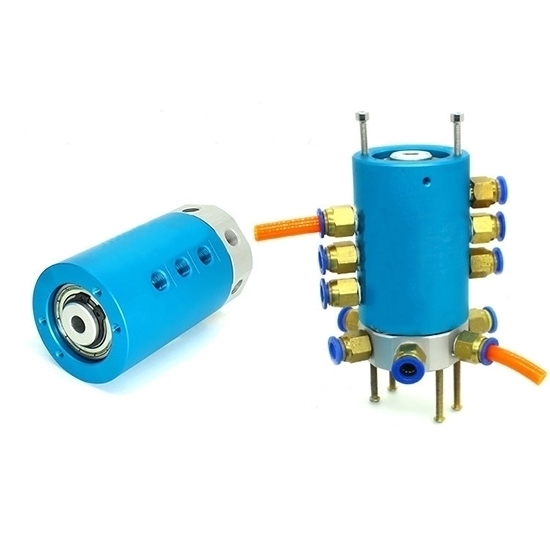

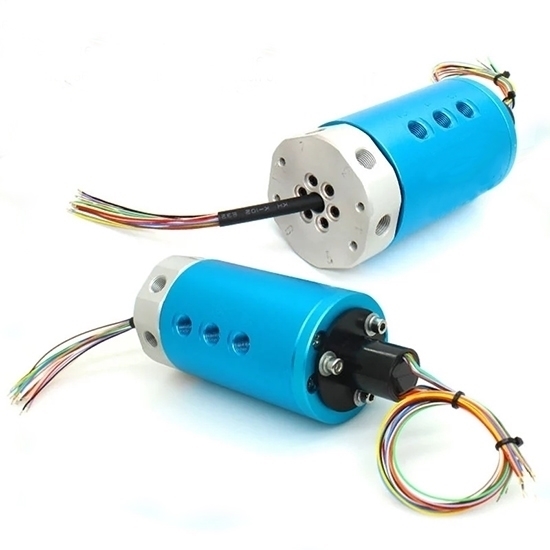

6-Passage Rotary Union, Pneumatic/Electrical Slip Ring for Air/Water/Hydraulic

$407.54

6-passage pneumatic rotary union affordable price. It can transmit compressed air, steam, vacuum, hydraulic and other fluid m

SKU: CHN-RTJT-3006

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Features

6-passage 6 in 6 out pneumatic rotary joint slip ring, G1/8" thread, supports 6~8mm pipe.
Can mix power lines, signal lines, Ethernet, industrial bus, control lines, solenoid valves, induction lines, etc.
In addition to standard models, other specifications can be customized.

Specification

Model	CHN-3006006
Number of Passages	6 Passages
Max. Pressure	1Mpa, Vacuum -1.5kPa
Thread Port	G1/8"
Pipe size	6~8mm
Torque	<0.2N.m
Working Life	20 millions for ref (depends on working conditions)
Max. Speed	250rpm continously, 1000rpm intermittently
Working Temp.	-30℃~80℃
Work Humidity	0~85% RH
Contact Material	precious metal
Housing Material	aluminum alloy
Voltage Range	Power: 0~440VAC/VDC Signal: 0~440VAC/VDC
Insulation Resistance	Power: <500MΩ/300VDC Power: <500MΩ/300VDC
Lead Wire Spec.	Power:AWG17# Silverplated teflon wire Signal: AWG22# Silverplated teflon wire
Lead Wire Length	standard 250mm (can be customized)
Certification	CE, RoHS
Insulation Resistance	500VAC@50Hz,6s
Electrical Noise	<0.01Ω
IP Grade	IP51
Weight	About 1~2 kg

Note: Please contact us if you need the flange. The package includes the controller.

Dimension Drawing of 6-Passage Rotary Union (gas/flow transfer only)

Standard Model List

Model	Passages (Gas/Flow Transfer Only)	Port Size	Pipe Size
CHN-3006006	6	G1/8"	6~8mm

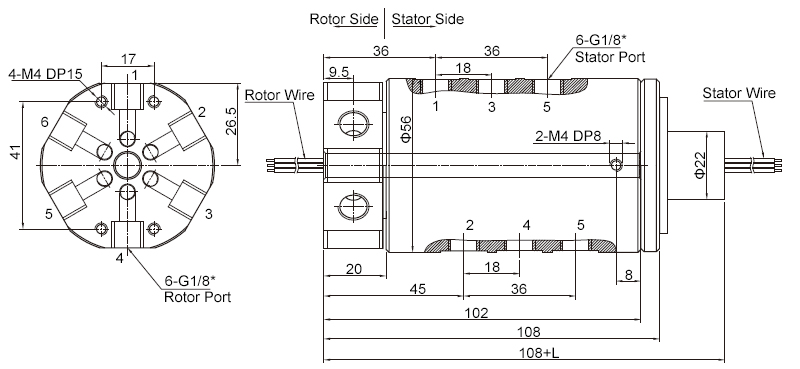

Dimension Drawing of 6-Passage Rotary Union (gas/flow+6~56-Wire 2A signal transfer)

Standard Model List

Model	Passages (Gas/Flow)	Port Size	Pipe Size	Signal Circuits (2A)	Length L (mm)
CHN-3006006-06S	6	G1/8"	6~8mm	6	14
CHN-3006006-12S	6	G1/8"	6~8mm	12	21
CHN-3006006-24S	6	G1/8"	6~8mm	24	35
CHN-3006006-36S	6	G1/8"	6~8mm	36	52.3
CHN-3006006-56S	6	G1/8"	6~8mm	56	82

Dimension Drawing of 6-Passage Rotary Union (gas/flow+2A signal/5A/10A power transfer)

Standard Model List

Model	Passages	Port Size	Pipe Size	Circuits			Length L (mm)
Model	Passages	Port Size	Pipe Size	Power (10A)	Signal (2A)	Signal (5A)	Length L (mm)
CHN-3006006-06S	6	G1/8"	6~8mm	0	6	6	38
CHN-3006006-0610	6	G1/8"	6~8mm	6	0	0	38
CHN-3006006-12S	6	G1/8"	6~8mm	0	12	12	55
CHN-3006006-0610-06S	6	G1/8"	6~8mm	6	6	6	55
CHN-3006006-1210	6	G1/8"	6~8mm	12	0	0	55
CHN-3006006-0610-12S	6	G1/8"	6~8mm	6	12	12	71.5
CHN-3006006-1210-06S	6	G1/8"	6~8mm	12	6	6	71.5
CHN-3006006-18S	6	G1/8"	6~8mm	0	18	18	71.5
CHN-3006006-1810	6	G1/8"	6~8mm	18	0	0	71.5
CHN-3006006-0610-18S	6	G1/8"	6~8mm	6	18	18	88.5
CHN-3006006-24S	6	G1/8"	6~8mm	0	24	24	88.5
CHN-3006006-30S	6	G1/8"	6~8mm	0	30	30	106
CHN-3006006-36S	6	G1/8"	6~8mm	0	36	36	125

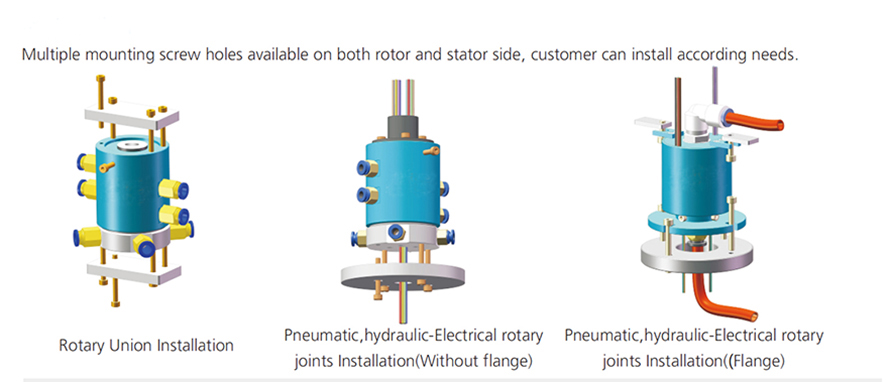

Rotary Union Installation Diagram

Tips: What is the role of a rotary union?

The main function of a electrical rotary union is to solve the problem of wire entanglement of the device in 360° rotation. During the electrical design process, it is needs to connect the wires to the rotating parts. When the mechanical part is continuously rotating at 360° without restriction, there will be a wire entanglement problem. To ensure that the current or signal can be accurately transmitted to the rotating component, an electric rotary connector (commonly known as an electric rotary union or rotary joint) is required to transmit the rotational connection of power and signal.
The rotary union improves system performance, simplifies system construction, and prevents damage to the wire during rotation.
Electrical rotary unions accurately transmit Ethernet, USB, RS, CANBus, FireWire, servo motor signals, encoder signals, strain gauge signals, thermocouples and other signals
