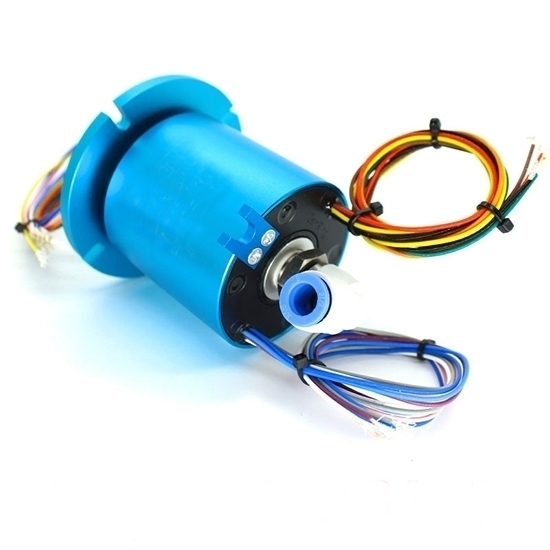

The series of 1-passage pneumatic rotary joint can rotate 360° and transmit medium. It can not only transfer fluid but also can combine to transmit electrical power and signal. Slip ring has the advantages of small size, light weight and low torque. In addition to standard models, other specifications can be customized.

Features

• Single-passage 1 in 1out pneumatic rotary joint slip ring, 35mm outer diameter, M5 thread, supports 4mm pipe.
• Can mix power lines, signal lines, Ethernet, industrial bus, control lines, solenoid valves, induction lines, etc.

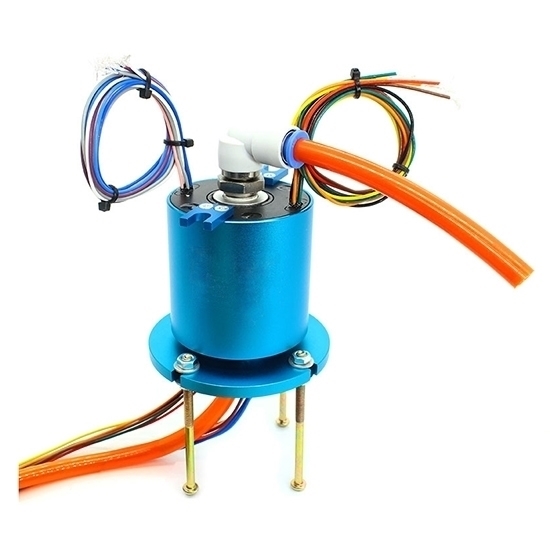

• Standard installation is flange, customizable hollow shaft installing.
• The medium that can pass including compressed air, hydrogen, nitrogen, chemical mixed gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, and the like.

Specification

Note: Please contact us if you need the flange

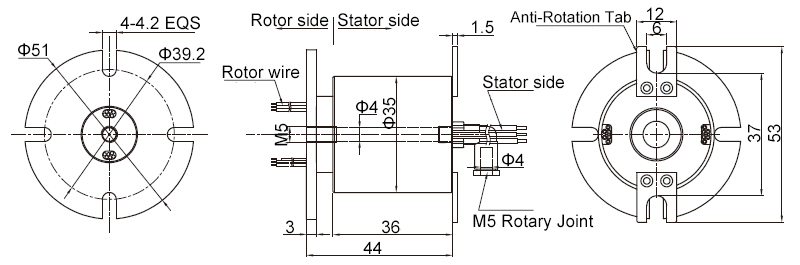

1-Passage Pneumatic/Electrical Rotary Joint Dimension Diagram (Unit: mm)

Standard Model List

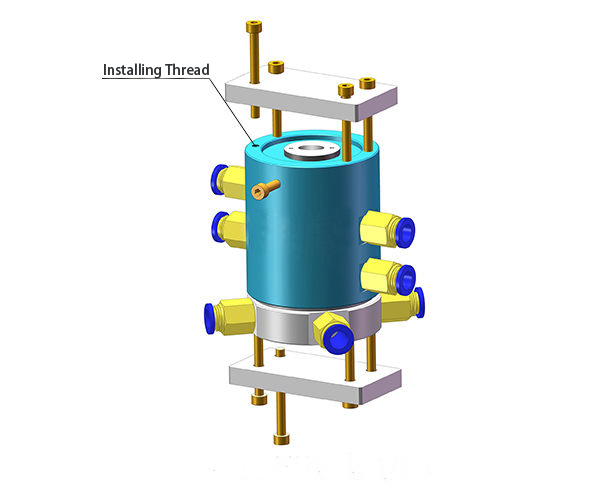

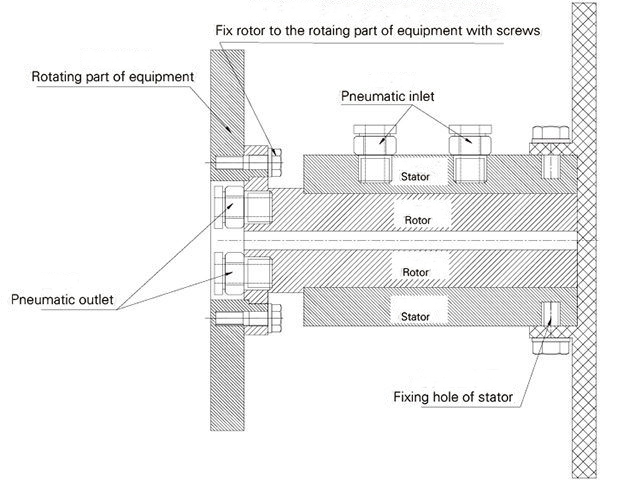

1-Passage Pneumatic/Electrical Rotary Joint Installation Diagram

Color Code of Lead Wire

Tips: What is a rotary joint?

A rotary joint is also called rotary union. It is a closed rotary connector for 360° rotating conveying medium. A 1-passage rotary joint has 1 intake and 1 exhaust. The rotary joint input fluid medium from a stationary pipe into a rotating or reciprocating device and then discharge the medium from the rotary joint. The application fields cover almost every processing and manufacturing industry. For example, metallurgy, machine tool, power generation, oil, rubber plastic, textile, printing and dyeing, pharmaceutical, cigarette, papermaking, food, feed processing, etc.
