Model		CHN-GB100
Stroke		100mm~1800mm (100mm pitch)
Belt Width		20mm
Repeatability Accuracy		± 0.04mm
Lead Range		40mm
Max. Speed		2000 mm/s
Max. Payload	Horizontal	10 kg
	Vertical	-
Rated Thrust		61 N
Matching Servo Motor Power*		100W
Coupling		1214 / 1219 mm
Home Sensor	Outside	EE-SX672 (NPN)
	Built-in	EE-SX674 (NPN)

Model	Body Width (mm)	Lead Range (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Lead Range (mm)	Horizontal	Vertical	Max. Speed (mm/s)	200	400	600	800	1000	1200	1400	1600	1800
CHN-GB100	100	40	10	-	2000	-	-	-	-	-	-	-	-	2000

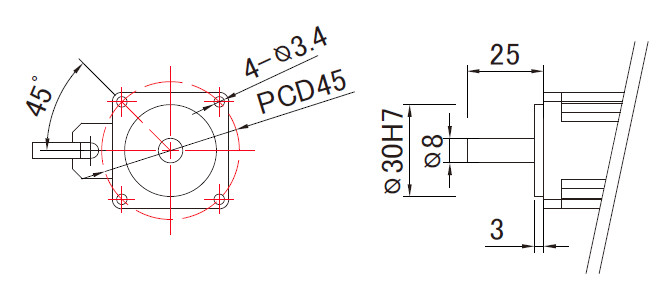

Motor Power	Motor Size	Shaft Diameter
100W	38mm	8mm
