Linear slide table has guide rail, sliding block, motor and sensor to form a linear motion system. Stroke is available from 100mm to 1050mm, screw path 5/10/20mm, ball screw diameter 16mm. High precision, easy assembly and affordable price.

Basic Specification

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

• The linear slide is a fully enclosed linear motion system, which is mainly composed of an aluminum body, a diagonal bearing holder, a cover plate, a slide block and other components.
• Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
• Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
• The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat.
• The flexible stainless steel is sealed, and on the motion seat, the whole linear motion system can meet the requirements of dust-free level.

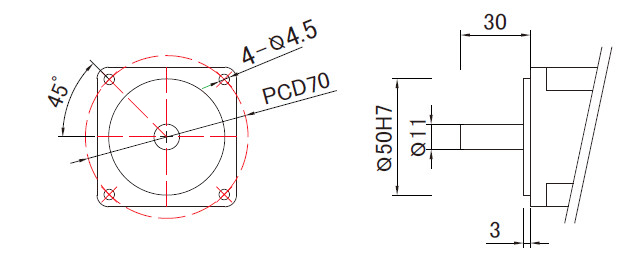

Motor Mounting Dimensions (Unit: mm)
