100~1050mm Ball Screw Driven Linear Slide, Ф16mm

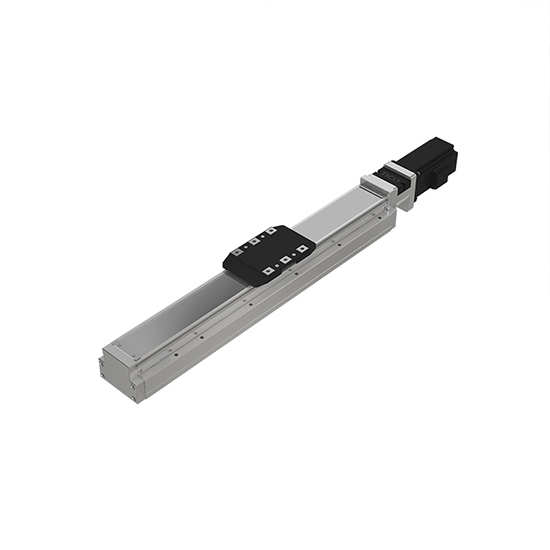

Linear slide table is driven by ball screw of 16mm diameter, optional stroke 100mm~1050mm, screw path 5/10/20mm. The linear motion system integrates guide rail and sliding block. For better control, you can buy a servo motor to match the linear slide system.

Basic Specification

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

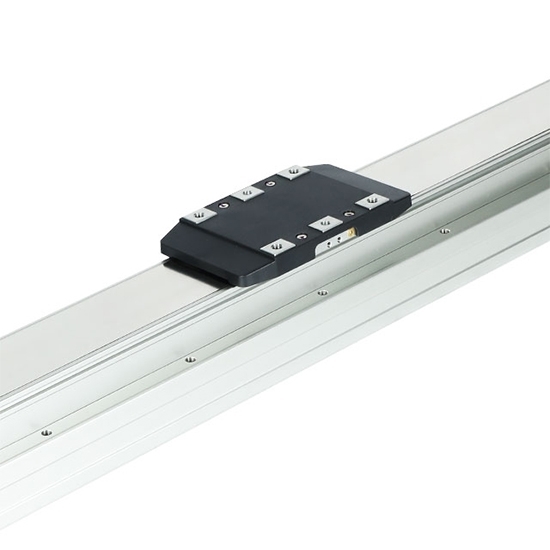

• The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
• Linear slide guide rail is compact, lightweight, space-saving and high-load.
• The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
• Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
• The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

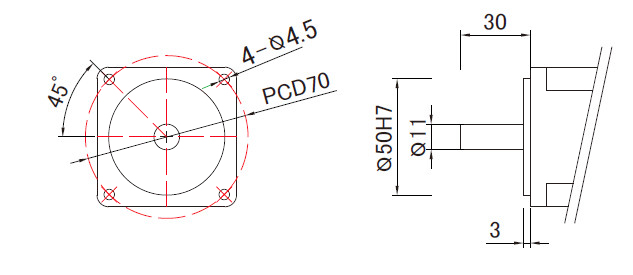

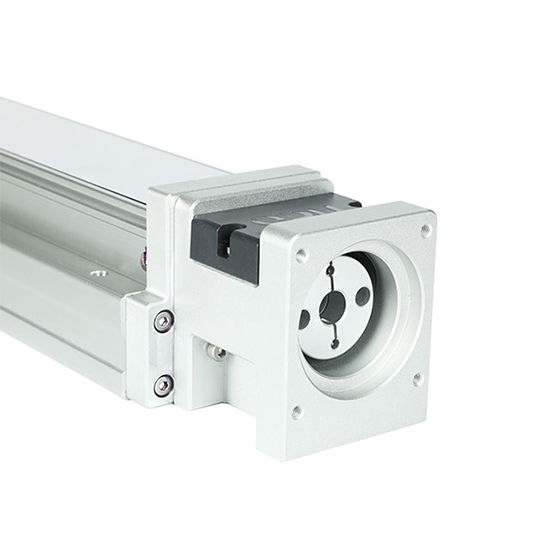

Motor Mounting Dimensions (Unit: mm)
