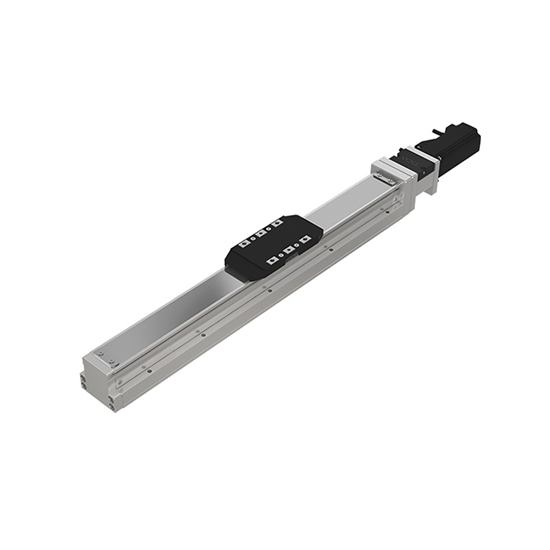

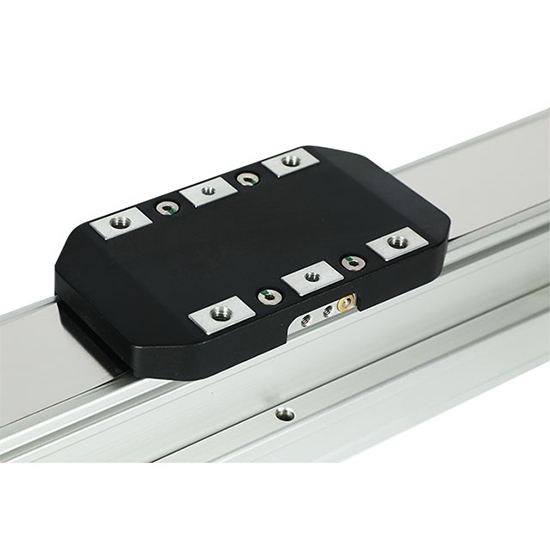

Model		CHN-ATH5
Stroke		100mm~800mm (100mm pitch)
Ball Screw Diameter		12mm
Repeatability Accuracy		± 0.01mm
Ball Screw Lead		5mm	10mm	20mm
Max. Speed		250 mm/s	500 mm/s	1000 mm/s
Max. Payload	Horizontal	30 kg	15 kg	10 kg
	Vertical	10 kg	5 kg	2.5 kg
Rated Thrust		341 N	170 N	85 N
Matching Servo Motor Power*		100W

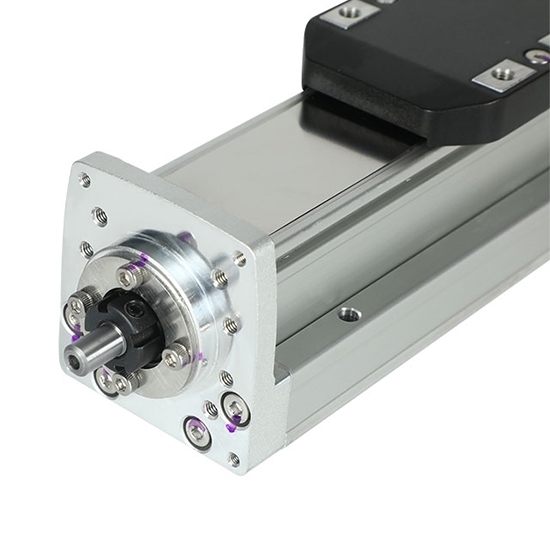

Coupling		7*8mm
Home Sensor	Outside	EE-SX674 (NPN)

Model	Body Width (mm)	Ball Screw Lead (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Ball Screw Lead (mm)	Horizontal	Vertical	Max. Speed (mm/s)	100	200	300	400	500	600	700	800
CHN-ATH5	54	5	30	10	250	-	-	-	-	-	250	200	150
		10	15	5	500	-	-	-	-	-	500	400	300
		20	10	2.5	1000	-	-	-	-	-	1000	800	600

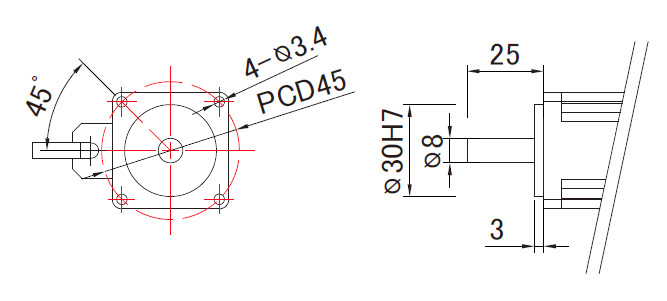

Motor Power	Motor Size	Shaft Diameter
100W	38mm	8mm
