Model		CHN-4HV410-15	CHN-4HV430-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)	4/3 Port (4 Way, 3 Position)
Port Size		G1/2
Lubrication		No Need
Working Pressure		1MPa
Proof Pressure		1.5MPa
Working Temperature		0 ~ 60℃
Operation Angle		90°
Material	Body	Aluminum Alloy
	Seal	NBR

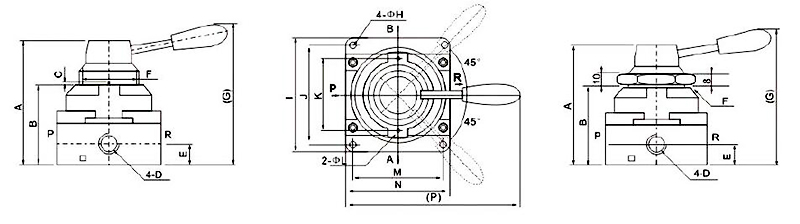

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
CHN-4HV410-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160
CHN-4HV430-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160
