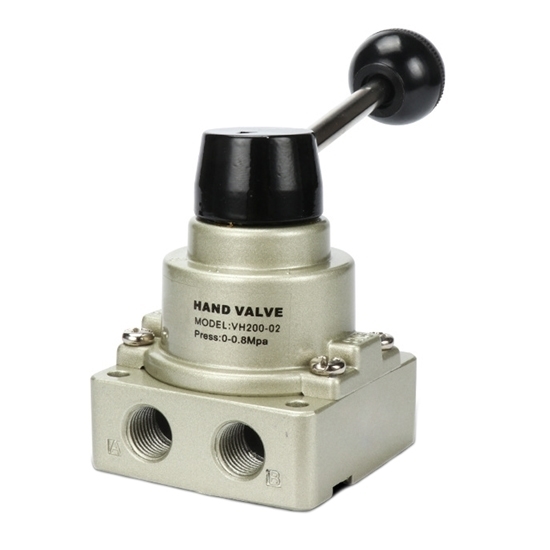

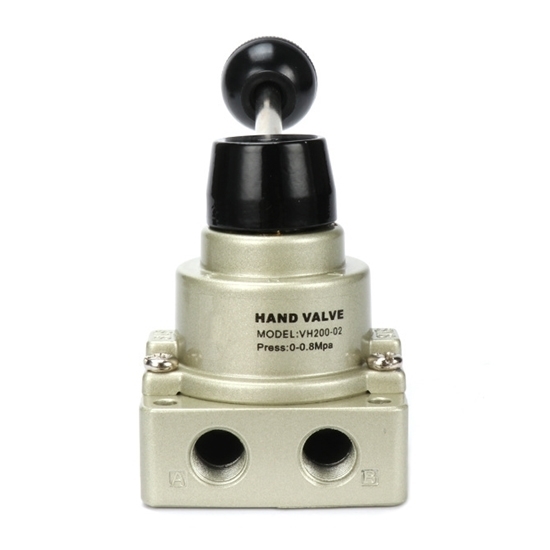

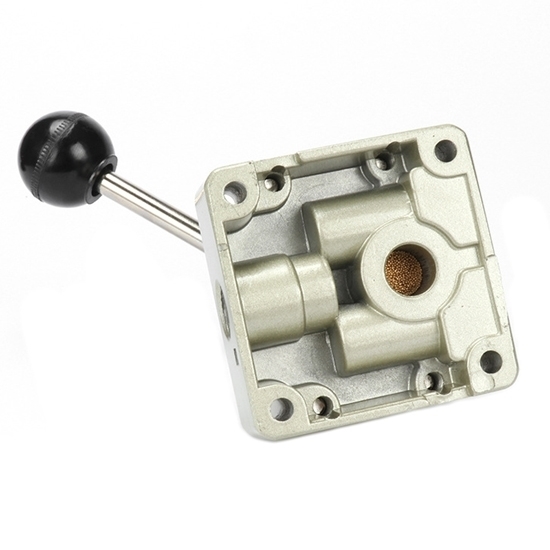

G1/4" Hand Lever Valve, 4 Way, 2 Position

1/4 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Wiring Diagram

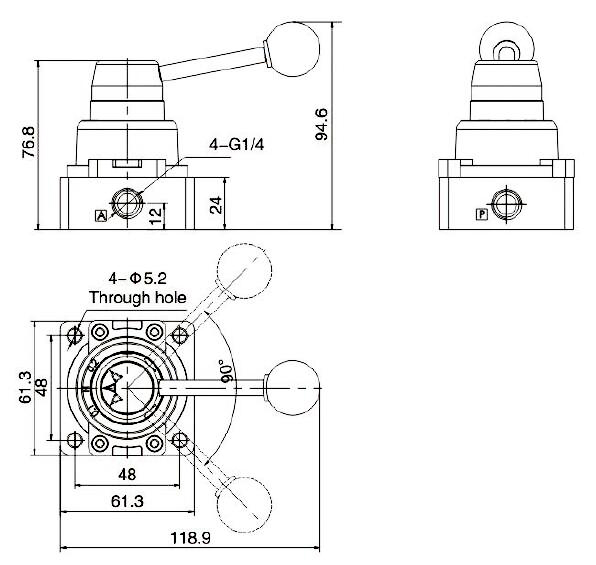

Dimensions (Unit: mm)

Tips:

The hand lever air valve is a control part in the pipeline fluid conveying system. It is used to change the passage section and the flow direction of the medium. It has the functions of diversion, cut-off, adjustment, throttling, check, shunt or overflow and pressure relief. It is used for fluid control, and the nominal diameter is up to 10m. The manual valve can act according to predetermined requirements under the action of pressure, temperature or other forms of sensing signals, or simply open or close without relying on the sensing signal. It relies on the drive or automatic mechanism to make the opening and closing parts lift and slide. , pendulum or rotary motion, so as to change the size of its flow channel area to achieve its control function.
