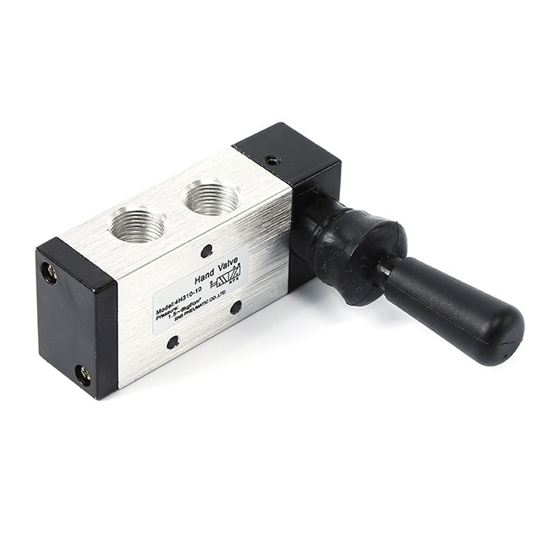

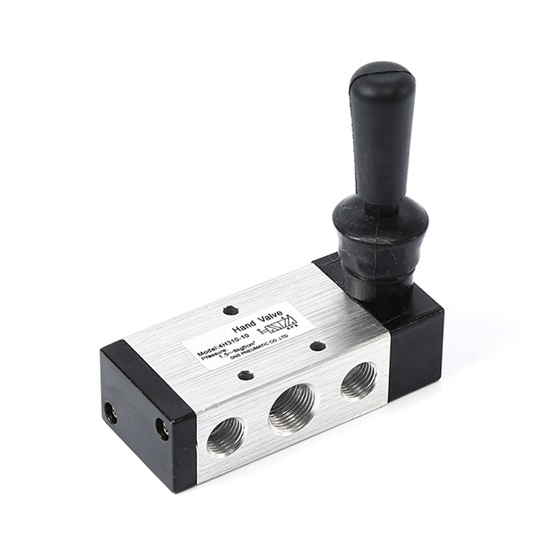

Pneumatic Hand Lever Valve, 5 Way, 2 Position

Pneumatic hand operated lever valve is used to operate air cylinders. Its manual lever can control the movement of the spool, which allowing the air to pass.

Specification

Wiring Diagram

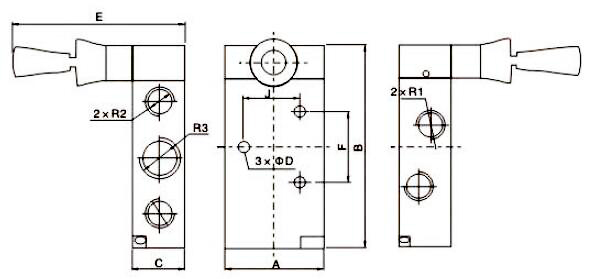

Dimensions (Unit: mm)

Tips: Different types of valves

• Automatic valve: This valve does not need external force to drive, but relies on the energy of the medium itself to make the valve action valve. Such as safety valve, pressure reducing valve, check valve, automatic control valve.
• Power drive valve: Power drive valve can use a variety of power sources to drive.
  Electric valve: Valve driven by electricity.
  Pneumatic valve: valve driven by compressed air.
  Hydraulic valve: Valve driven by the pressure of a liquid such as oil.
• Hand valve: this hand valve can be set between the hand wheel and the valve stem. If necessary, universal joints and drive shafts can also be used for remote operation.
