Model		CHN-3H210-08	CHN-3H310-10	CHN-3H410-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		3/2 Port (3 Way, 2 Position)
Effective Sectional Area		16.0mm2 (Cv=0.89)	30.0mm2 (Cv=1.67)	50.0mm2 (Cv=2.79)
Port Size		Inlet = Outlet = G1/4 Exhaust Port = G1/8	Inlet = Outlet = G3/8 Exhaust Port = G1/4	Inlet = Outlet = Exhaust Port = G1/2
Lubrication		No Need
Working Pressure		0 ~ 0.8MPa
Proof Pressure		1.0MPa
Working Temperature		0 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

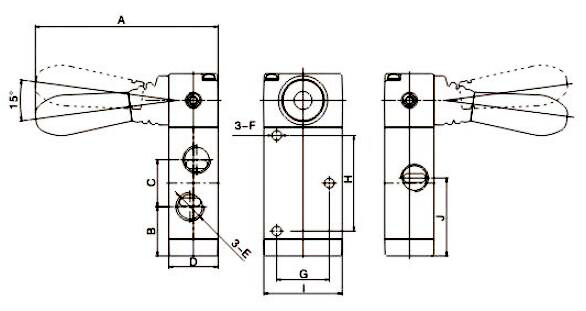

Model	A	B	C	D	E	F	G	H	I	J
CHN-3H210-08	93	19.2	18.5	22	G1/4	4.3	18	38.7	35	31
CHN-3H310-10	99	20.5	23.8	27	G3/8	3.3	20	27.7	40	35.5
CHN-3H410-15	105	32.5	33	34	G1/2	4.3	27	45.5	50	50
