1900~24000 N.m Hydraulic Rotary Actuator, 180°~360°

$2698.77

Professional manufacturer hydraulic rotary actuator for sale. Output torque 1900~24000 N.m, holding torque 4900~59000 N.m, ma

SKU: CHN-HRA-24000

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Affordable price hydraulic rotary actuator for sale online. Output torque 1900~24000 N.m, max rotating angle 180°/360°, displacement 492~12000 cc, radial load 4000~26000 lb. Hydraulic rotary actuator is a helical rotational hydraulic cylinder, widely used in hydraulic actuation system, saving redundant parts.

Specification

Model	CHN-CY3-19	CHN-CY3-28	CHN-CY3-47	CHN-CY3-73	CHN-CY3-105	CHN-CY3-140	CHN-CY3-180	CHN-CY3-240
Rotation Angle	180°, 360°
Output Torque	1900 N.m	2800 N.m	4700 N.m	7300 N.m	10500 N.m	14000 N.m	18000 N.m	24000 N.m
Holding Torque	4900 N.m	6800 N.m	12,000 N.m	18,000 N.m	26,000 N.m	35,000 N.m	46,000 N.m	59,000 N.m
Radial Load	4000 lb	5071 lb	7937 lb	11,023 lb	14,991 lb	18,078 lb	22,046 lb	26,000 lb
Axial Load	3086 lb	3968 lb	5952 lb	7937 lb	9921 lb	13,007 lb	14,991 lb	18,078 lb
Displacement (180°)	492 cc	688 cc	1180 cc	1870 cc	2680 cc	3540 cc	4650 cc	6000 cc
Displacement (360°)	980 cc	1390 cc	2360 cc	3740 cc	5360 cc	7080 cc	9320 cc	1200 cc
Weight (180°)	34. 5 kg	50 kg	72. 5 kg	110 kg	160 kg	220 kg	280 kg	360 kg
Weight (360°)	45.5 kg	63.4 kg	100 kg	140 kg	200 kg	290 kg	370 kg	455 kg

Advantages

Compared with the linear cylinder actuator added with auxiliary mechanism, hydraulic rotary actuator is compact in structure and smaller in volume, and does not require other structural parts to assist.
Compared with the vane rotary cylinder, the internal leakage of hydraulic rotary actuator is very small, almost 0.
The hydraulic rotary actuator only needs a small displacement, and the minimum can reach 20cc.
Hydraulic rotary actuator can output very high torque, up to 74630 N.m.
Hydraulic rotary actuator can achieve 0-360° rotation
The hydraulic rotary actuator can bear large radial load and axial load.
Installation modes are diversified, and the mounting method can be customized for hydraulic rotary actuator according to customer needs.
The efficiency of converting hydraulic thrust into output torque is relatively low (45%~80%). After frequent use of hydraulic rotary actuator, temperature of the hydraulic system rises quickly. Please pay attention to temperature control.

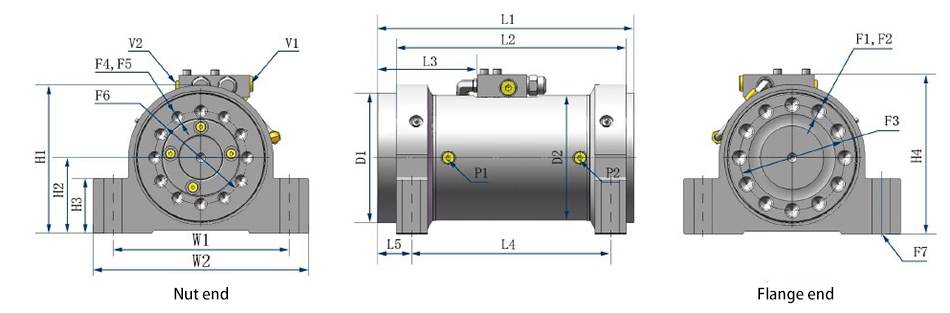

Hydraulic Rotary Actuator Dimensions Diagram (Unit: mm)

Foot Installation

Model	CHN-CY3-19	CHN-CY3-28	CHN-CY3-47	CHN-CY3-73	CHN-CY3-105	CHN-CY3-140	CHN-CY3-180	CHN-CY3-240
D1 Flange Mounting Disc Diameter	139	155	183	209	234	263	288	310
D2 Housing Diameter	140	152	178	203	229	254	279	305
F1 Flange End Threaded Hole Spec	M12 x 1. 75	M16 x 2	M20 x 2. 5	M22 x 2. 5	M24 x 3	M27 x 3	M27 x 3	M30 x 3. 5
F2 Flange End Threaded Hole Quantity	12	12	12	12	12	12	12	12
F3 Flange End Threaded Hole Indexing Circle Diameter	115	125	150	170	195	215	240	255
F4 Nut End Thread Hole Spec	M10 x 1.5	M12 x 1.75	M16 x 2	M20 x 2.5	M22 x 2.5	M24 x 3	M27 x 3	M27 x 3
F5 Nut End Thread Hole Quantity	12	L2	12	12	L 2	12	LZ	12
F6 Nut End Thread Hole Indexing Circle Diameter	108	120	133	150	170	190	210	230
F7 Mounting Hole Diameter	M16	M20	M22	M24	M27	M30	M36	M36
H1 Height without Balance Valve	156	186	212	240	276	305	327	362
H2 Height from Bottom to Centerline	80	94.9	108	122	140	154	165	184
H3 Foot Height	48	70	78	88	105	110	120	135
H4 Total Height	179	201	226	271	283	310	334	366
L1 Total Length (180°)	298	323	365	413	475	524	551	600
L1 Total Length (360°)	427	470	538	615	705	776	836	906
L2 Length without Rotation Flange (180°)	261	286	323	363	431	463	493	534
L2 Length without Rotation Flange (360°)	392	433	496	565	661	715	775	843
L3 Distance between Flange and Balance Valve (180°)	75. 2	134	143	130	152	185	196	221
L3 Distance between Flange and Balance Valve (360°)	149	157	197	232	267	308	338	374
L4 Foot Mounting Hole Distance (180°)	229	248	281	314	374	400	426	460
L4 Foot Mounting Hole Distance (360°)	358	395	454	516	604	652	708	766
L5 Distance between Flange and Mounting Hole (180°)	38. 1	43. 9	50	56. 9	59. 9	74. 2	75.9	80
W1 Foot Mounting Hole Distance	190	230	260	300	340	380	410	450
W2 Total Width	222	268	310	350	400	447	484	530
P1 P2 Housing Oil Port	ISO-1179-1/BSPP G series, size 1/8"~1/2"
V1 V2 Valve Oil Port	ISO-1179-1/BSPP G series, size 3/8"

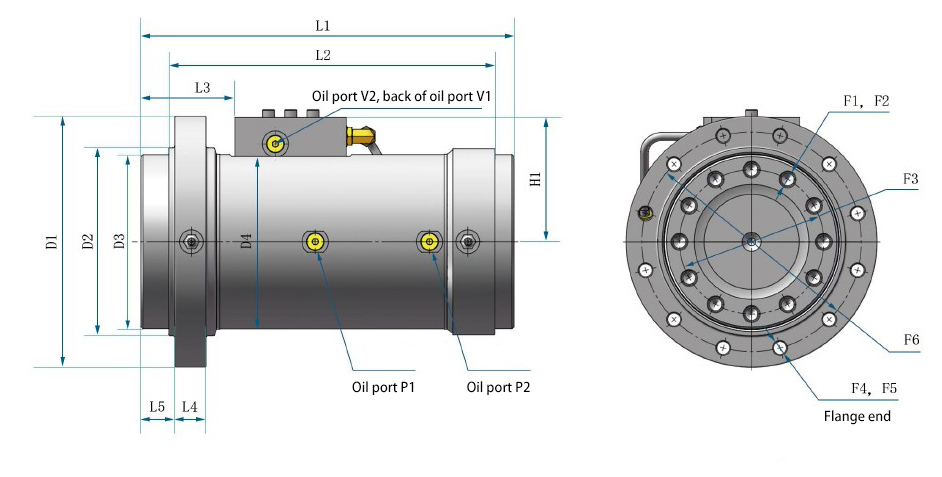

Flange Installation

Model	CHN-CY3-19	CHN-CY3-28	CHN-CY3-47	CHN-CY3-73	CHN-CY3-105	CHN-CY3-140	CHN-CY3-180	CHN-CY3-240
D1 Main Body Flange Diameter	200	235	280	315	355	396	442	475
D2 Seam Allowance Diameter	150	175	205	230	260	290	315	340
D3 Flange Mounting Disc Diameter	139	155	183	209	234	263	288	310
D4 Housing Diameter	140	152	178	203	229	254	279	305
F1 Inner Flange Thread Hole Spec	M12 x 1. 75	M16 x 2	M20 x 2.5	M22 x 2.5	M24 x 3	M27 x 3	M27 x 3	M30 x 3.5
F2 Inner Flange Thread Hole Quantity	12	12	12	12	12	12	12	12
F3 Inner Flange Thread Hole Indexing Circle Diameter	115	125	150	170	195	215	240	255
F4 Outer Flange Thread Hole Spec	M10 x 1. 5	M12 x 1.75	M16 x 2	M20 x 2.5	M22 x 2.5	M24 x 3	M27 x 3	M27 x 3
F5 Outer Flange Thread Hole Quantity	12	12	12	12	12	12	12	12
F6 Outer Flange Thread Hole Indexing Circle Diameter	175	206	245	275	3 10	345	380	410
H1 Height from Center to Top of Valve	99. 1	106	118	131	144	156	169	182
L1 Total Length (180°)	298	323	365	413	475	524	551	600
L1 Total Length (360°)	427	470	538	615	705	776	836	906
L2 Length without Rotation Flange (180°)	261	286	323	363	431	463	493	534
L2 Length without Rotation Flange (360°)	392	433	496	565	661	715	775	843
L3 Distance between Inner Flange and Balance Valve (180°)	75. 2	134	143	130	152	185	196	221
L3 Distance between Inner Flange and Balance Valve (360°)	149	157	197	232	267	308	338	374
L4 Outer Flange Thickness	25. 2	26	31	33	40	42	46	52
L5 Distance between Inner Flange and Outer Flange	27	32	35	42	40	53	54	56
P1 P2 Housing Oil Port	ISO-1179-1/BSPP G series, size 1/8"~1/2"
V1 V2 Valve Oil Port	ISO-1179-1/BSPP G series, size 3/8"

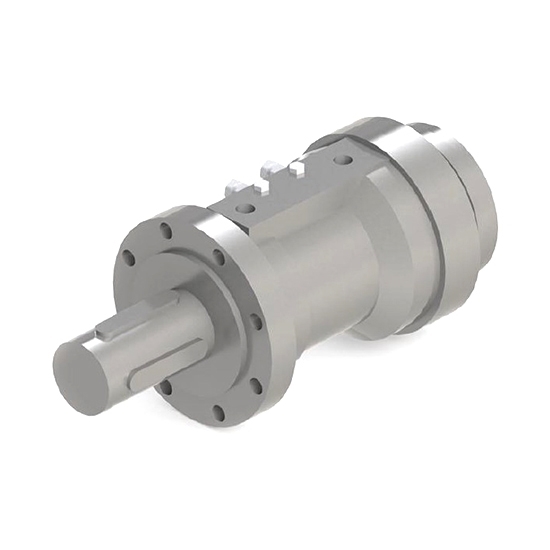

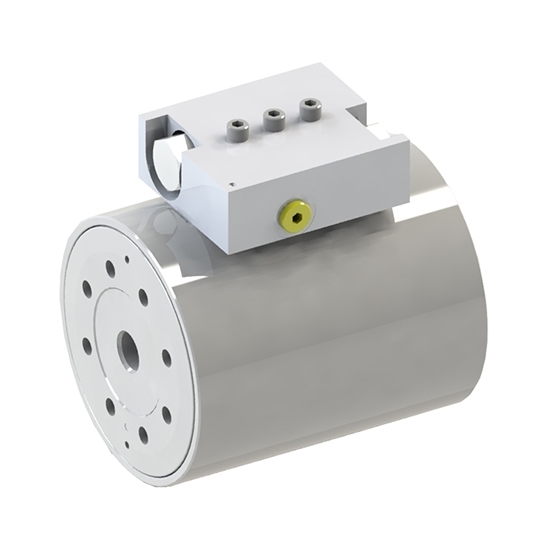

Hydraulic Rotary Actuator Output Modes Diagram

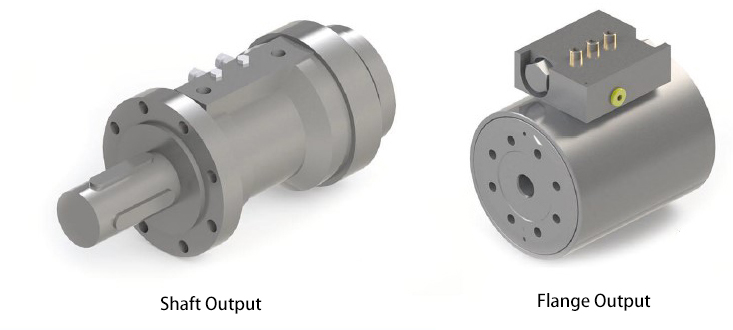

Hydraulic rotary actuator output mode is the installation mode of helical pair, standard modes are shaft output and flange output. If you need other output modes, please contact us.

Hydraulic Rotary Actuator Installation Modes Diagram

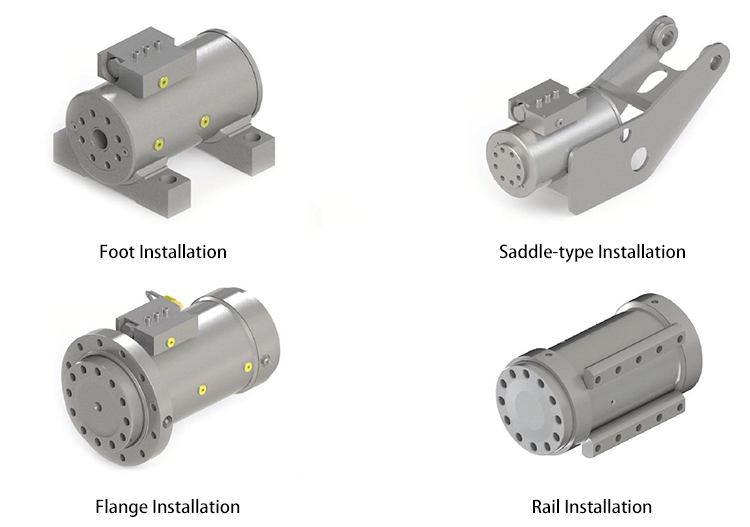

Hydraulic rotary actuator installation mode is the mounting of the main body, standard modes are foot/flange/saddle/rail types. If you need other installation modes for different working conditions, please contact us.

Tips: Hydraulic rotary actuator inspections.

Check whether the hydraulic rotary actuator is defective in appearance, and measure whether the installation size meets the requirements of the drawing.
Under the overflow pressure of 21 Mpa, run the hydraulic rotary actuator without load for 10 minutes, and check if there is any leakage.
Run the pistons to the ends of the two ends respectively, apply 21 Mpa pressure to the P1 port (P2 open) for 5 minutes. Apply 21 Mpa pressure to P2 port (P1 open) for 5 minutes. Check P1 and P2 for leaks.
Under no-load condition, apply a pressure of 31 Mpa to the hydraulic rotary actuator for 5 minutes in each direction. Observe whether the parts are deformed, and whether there is any leakage of hydraulic oil.
Check the total angle of rotation and meet the drawing conditions.
