Home > Transmission & Actuator > Hydraulic Actuator

Send Inquiry

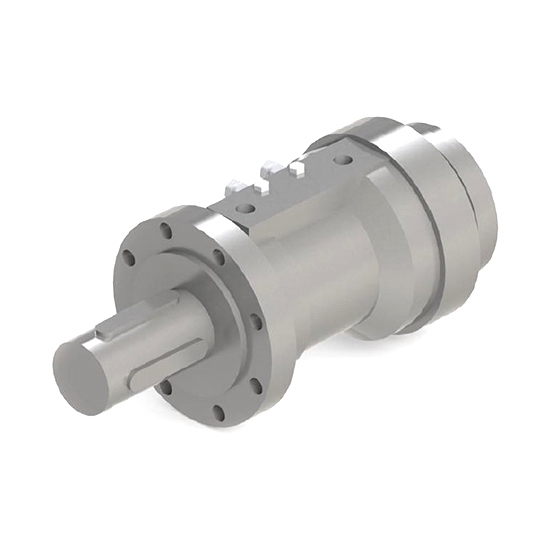

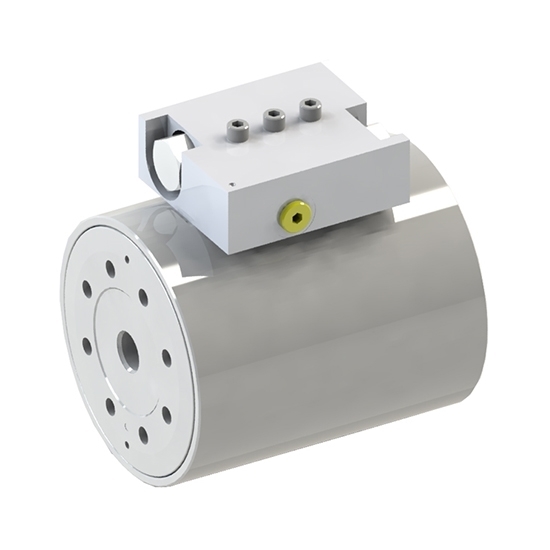

2800~6700 N.m Hydraulic Rotary Actuator, 200°~220°

$4109.38

Competitive price hydraulic rotary actuator for sale, ideal manufacturer. Optional output torque 2800/5000/6700 N.m, max rota

SKU: CHN-HRA-6700

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Ideal price hydraulic rotary from excellent manufacturer. output torque 2800/5000/6700 N.m, max rotating angle 200°/220°, displacement 775~1650 cc, radial load 4500~8600 lb. Helical hydraulic rotary actuator has functions of rotational hydraulic cylinder, with balance valve options, supporting shaft output or flange output.

Specification

Model	CHN-CY6-28	CHN-CY6-50	CHN-CY6-67
Output Torque	2800 N.m	5000 N.m	6700 N.m
Holding Torque	6100 N.m	10,600 N.m	14,300 N.m
Rotation Angle	220°	220°	200°
Radial Load	4500 lb	6900 lb	8600 lb
Axial Load	4500 lb	6900 lb	8600 lb
Displacement	775 cc	1360 cc	1650 cc
Weight	33.6 kg	58 kg	75 kg

Advantages

Compared with the linear cylinder actuator added with auxiliary mechanism, hydraulic rotary actuator is compact in structure and smaller in volume, and does not require other structural parts to assist.
Compared with the vane rotary cylinder, the internal leakage of hydraulic rotary actuator is very small, almost 0.
The hydraulic rotary actuator only needs a small displacement, and the minimum can reach 20cc.
Hydraulic rotary actuator can output very high torque, up to 74630 N.m.
Hydraulic rotary actuator can achieve 0-360° rotation
The hydraulic rotary actuator can bear large radial load and axial load.
Installation modes are diversified, and the mounting method can be customized for hydraulic rotary actuator according to customer needs.
The efficiency of converting hydraulic thrust into output torque is relatively low (45%~80%). After frequent use of hydraulic rotary actuator, temperature of the hydraulic system rises quickly. Please pay attention to temperature control.

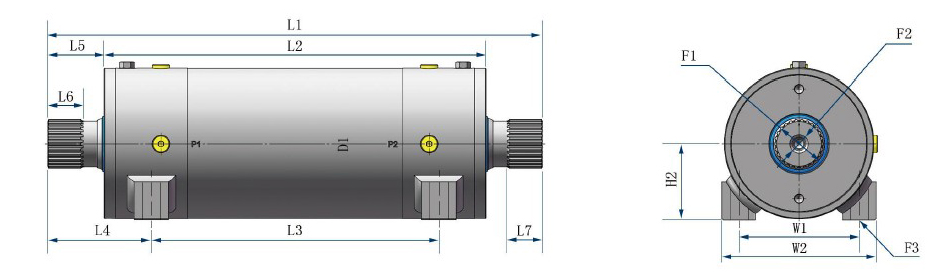

Hydraulic Rotary Actuator Dimensions Diagram (Unit: mm)

Model	CHN-CY6-28	CHN-CY6-50	CHN-CY6-67
D1 Main Body Diameter	140	165	178
F1 Shaft End Spline Size	Metric size, see product manual for details
F2 Shaft End Fixing Hole Spec (2 Sides)	M12 x l. 75	M12 x l. 75	M12 x l.75
F3 Foot Mounting Hole Thread	M16 x 2	M20 x 2. 5	M22 x 2.5
H1 Height without Balance Valve	150	176	203
H2 Height from Bottom to Centreline	73. 2	83.9	102
L1 Total Length (without connector option)	417	546	579
L2 Length without Rotation Part	335	422	445
L3 Foot Mounting Hole Distance	265	320	320
L4 Distance between Shaft End Surface to Mounting Hole	75. 1	113	130
L5 Shaft Extension	40.9	61. 9	67. 6
L6 Spline Length	21. 6	40	49
L7 Optional Spline Connector Length	32. 5	52.6	60. 5
W1 Foot Mounting Hole Distance	104	140	150
W2 Total Width	133	170	203
P1 P2 Housing Oil Port	ISO-1179-1/BSPP G series, size 1/8"~1/4"
V1 V2 Valve Oil Port	ISO-11926/SAE series, size 7/16"

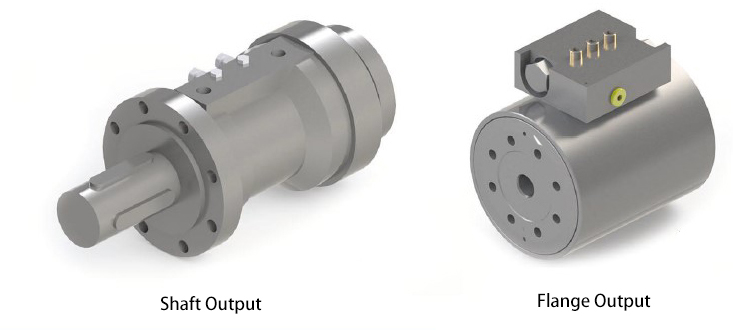

Hydraulic Rotary Actuator Output Modes Diagram

Hydraulic rotary actuator output mode is the installation mode of helical pair, standard modes are shaft output and flange output. If you need other output modes, please contact us.

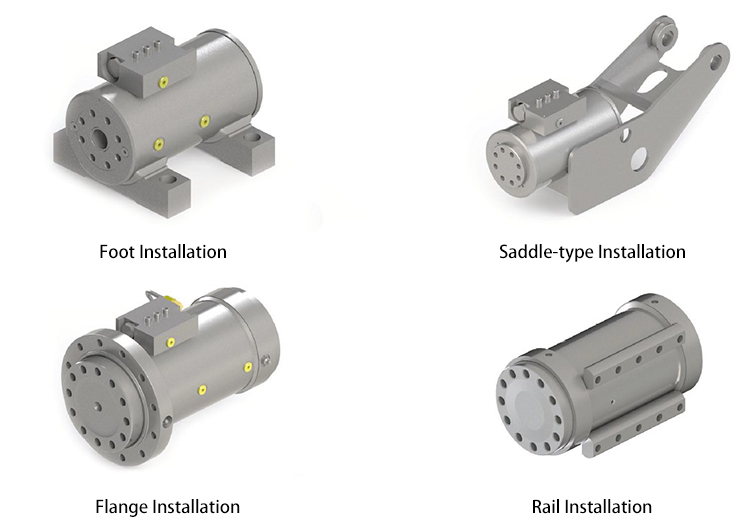

Hydraulic Rotary Actuator Installation Modes Diagram

Hydraulic rotary actuator installation mode is the mounting of the main body, standard modes are foot/flange/saddle/rail types. If you need other installation modes for different working conditions, please contact us.

Tips：Troubleshooting for piston/shaft seal leaking of the hydraulic rotary actuator.

If the hydraulic rotary actuator is equipped with a balance valve, plug the oil port of the balance valve and connect the hydraulic line to the oil port of the housing.
Exhaust all the gas in the hydraulic rotary actuator.
Rotate the hydraulic rotary actuator to the end under 21 MPa pressure and maintain the pressure.
Remove the hydraulic connection pipe from the oil return port.
If there is hydraulic oil continuously flowing out of the opened oil port of the case, it indicates that the piston has internal leakage.
Replace the pipeline and rotate the shaft to the end point in the other direction. Repeat the above inspection procedure for the other port of hydraulic rotary actuator. If internal leakage is found, reassemble, inspect and repair the hydraulic rotary actuator.
