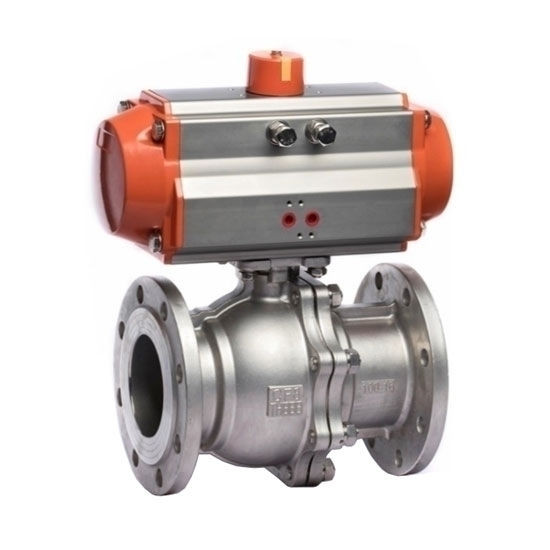

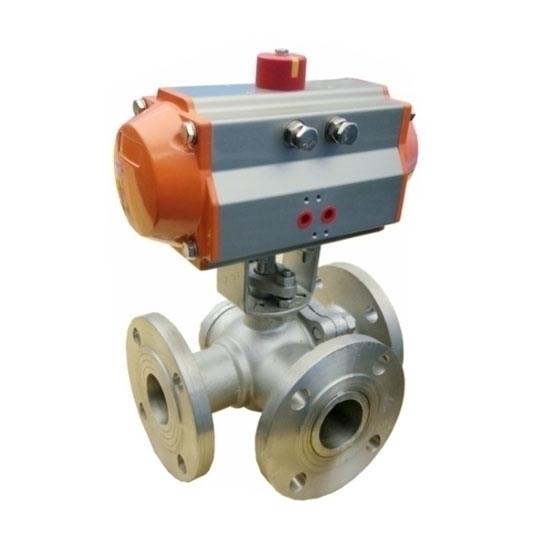

8" Pneumatic Flanged Ball Valve, 2 Way/ 3 Way

Industrial 8 inch 2 way or 3 way pneumatic flanged ball valve with high performance actuator for sale online. Air actuated ball valve comes with stainless steel body material is perfect for water, gas control and other high temperature fluid transfer.

Specification

• Model: CHN-PBV-200A
• Actuator Model: CHN-AT210D, CHN-AT240D
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Number of Ways: 2 Way, 3 Way
• Ball Valve Type: Flanged Type
• Port Size: 8 inch (DN200, 200mm)
• Bore Size: 210mm, 240mm
• Pressure Range: ≤1000PSI (6.9MPa)
• Air Pressure: 0.3 ~ 0.8MPa
• Air Supply Port: 1/4 inch or 3/8 inch
• Environment Temperature: -10°C to 60°C
• Medium Temperature: -10°C to 180°C
• Seat Material: Plastic (PTFE)
• Ball Valve Material: Stainless Steel (SS 316/ 304), PVC
• Actuator Body Material: Aluminum Alloy

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

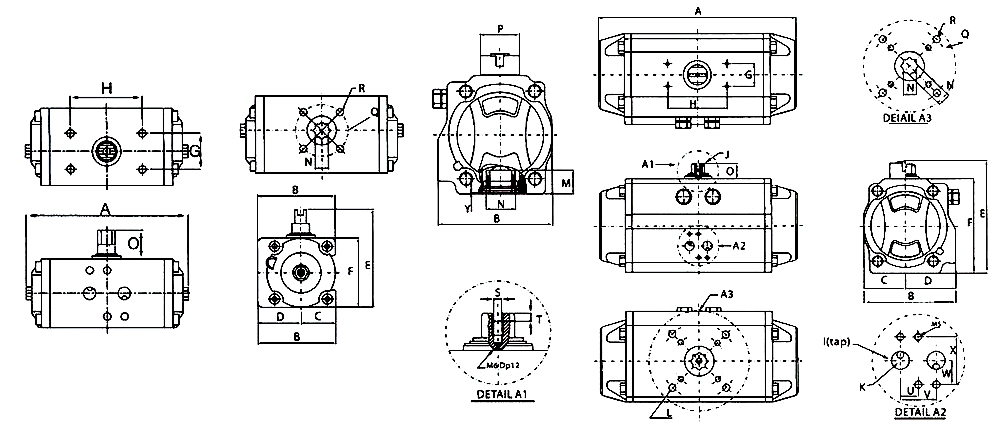

Pneumatic Actuator Dimension (Unit: mm)

CHN-AT210D

CHN-AT240D

Note: 2 way flanged type ball valve matches with CHN-AT210D actuator, and 3 way flanged type ball valve matches with CHN-AT240D actuator.

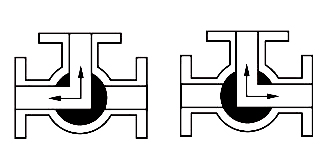

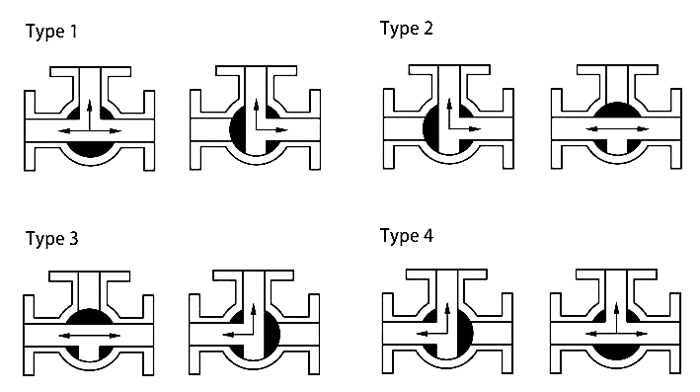

Three Way Ball Valve Flow Pattern

T Type:

L Type:

How to solve the leakage problem of pneumatic ball valve seal?

• Remove the screws, clean the pressure ring, replace the damaged parts, grind the sealing surface and the sealing surface of the connecting seat, and reassemble.
• For parts with large rust damage, it can be repaired by welding, bonding and other methods.
• The sealing ring of the pneumatic ball valve should be repaired according to the welding specification.
• When the surfacing welding cannot be re-welded, the corroded connection surface of the original surfacing sealing ring should be removed, and it can be repaired by grinding, bonding and other methods.
• The sealing and rolling leakage of the pneumatic ball valve should be fixed by rolling again with adhesive.
