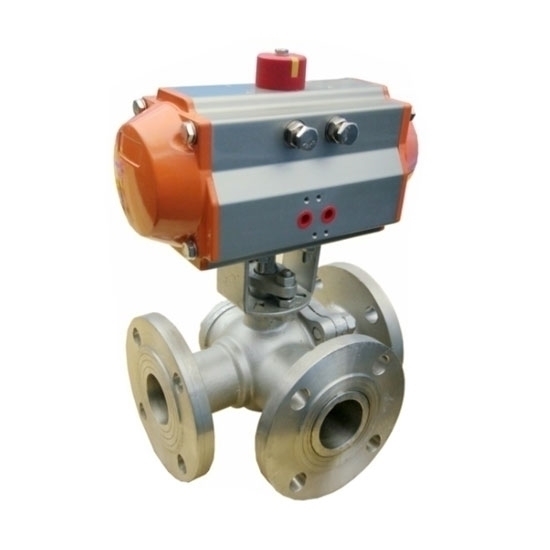

6" Pneumatic Flanged Ball Valve, 2 Way/ 3 Way

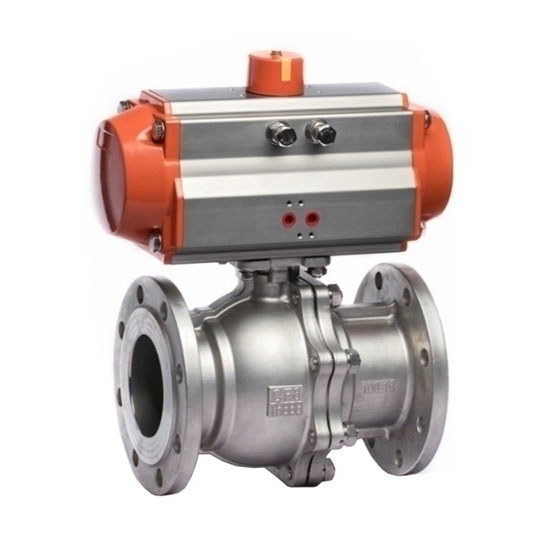

6 inch 2 way or 3 way pneumatic flanged ball valve with high performance actuator for sale online. Air actuated ball valve comes with stainless steel body material is perfect for water, gas control and other high temperature fluid transfer.

Specification

• Model: CHN-PBV-150A
• Actuator Model: CHN-AT160D, CHN-AT210D
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Number of Ways: 2 Way, 3 Way
• Ball Valve Type: Flanged Type
• Port Size: 6 inch (DN150, 150mm)
• Bore Size: 160mm, 210mm
• Pressure Range: ≤1000PSI (6.9MPa)
• Air Pressure: 0.3 ~ 0.8MPa
• Air Supply Port: 1/4 inch
• Environment Temperature: -10°C to 60°C
• Medium Temperature: -10°C to 180°C
• Seat Material: Plastic (PTFE)
• Ball Valve Material: Stainless Steel (SS 316/ 304), PVC
• Actuator Body Material: Aluminum Alloy

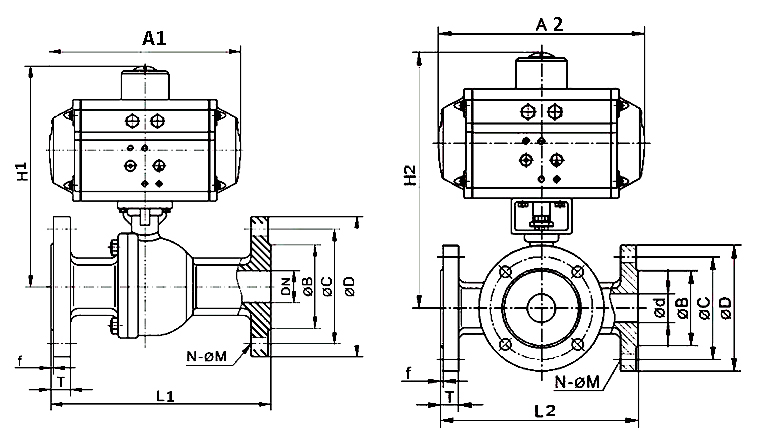

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

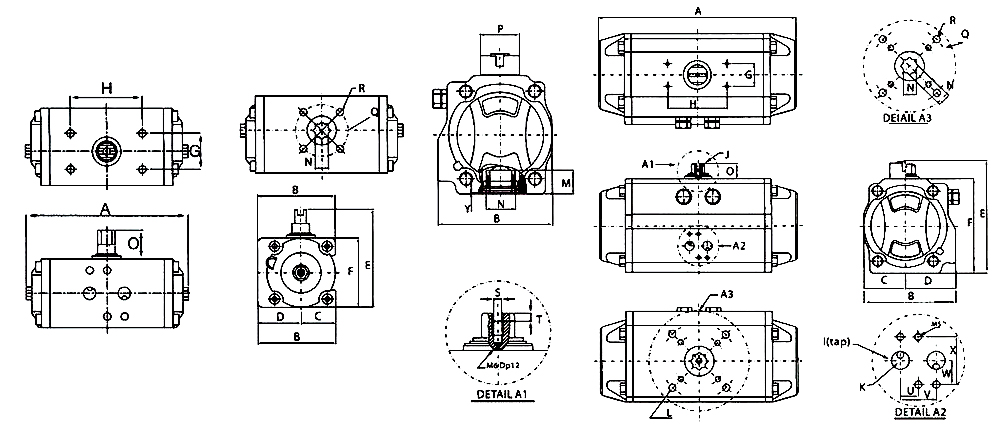

Pneumatic Actuator Dimension (Unit: mm)

CHN-AT160D

CHN-AT210D

Note: 2 way flanged type ball valve matches with CHN-AT160D actuator, and 3 way flanged type ball valve matches with CHN-AT210D actuator.

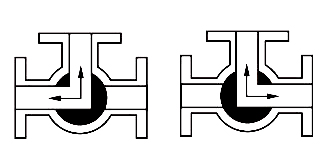

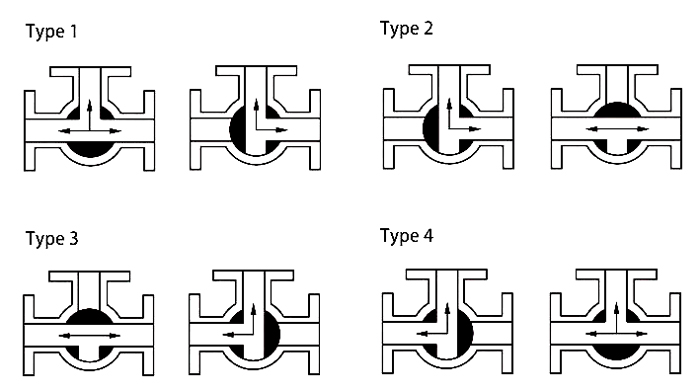

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Different between flanged and threaded pneumatic ball valve

Flanged pneumatic ball valve

• Advantages: easy to disassemble and assemble in the pipeline, suitable for some medium and large chemical projects. Acid and alkali resistance, strong resistance to pressure, durable and stable in use. The port selection is generally DN15-DN250.
• Disadvantages: high cost, large volume, generally requires two or more people to complete the installation.

Threaded pneumatic ball valve

• Advantages: small size, easy to install, generally suitable for home improvement buildings, or small pipes. Low cost for the factory unit.
• Disadvantages: It is not easy to disassemble, especially in fixed pipes.
