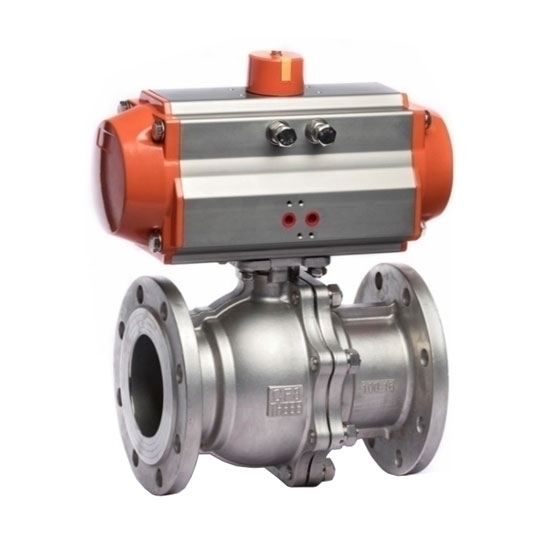

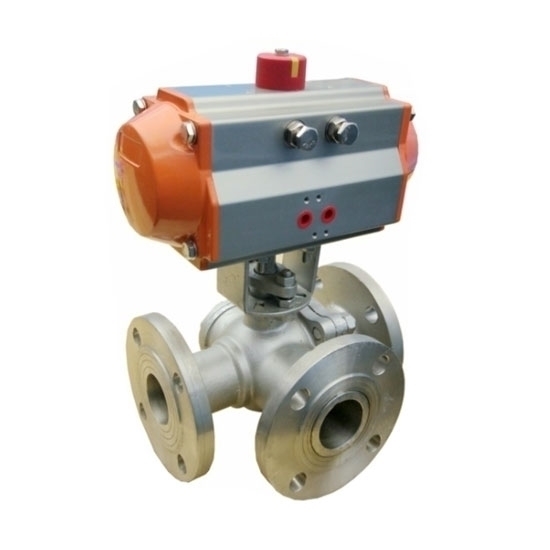

5" Pneumatic Flanged Ball Valve, 2 Way/ 3 Way

Industrial 5 inch large full port flanged ball valve works with pneumatic actuator. The air powered ball valve is a control valve used for water, oxygen, gas, nitrogen gas, gasoline and other high temperature air and fluid transfer.

Specification

• Model: CHN-PBV-125A
• Actuator Model: CHN-AT145D, CHN-AT160D
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Number of Ways: 2 Way, 3 Way
• Ball Valve Type: Flanged Type
• Port Size: 5 inch (DN125, 125mm)
• Bore Size: 145mm,160mm
• Pressure Range: ≤1000PSI (6.9MPa)
• Air Pressure: 0.3 ~ 0.8MPa
• Air Supply Port: 1/4 inch
• Environment Temperature: -10°C to 60°C
• Medium Temperature: -10°C to 180°C
• Seat Material: Plastic (PTFE)
• Ball Valve Material: Stainless Steel (SS 316/ 304), PVC
• Actuator Body Material: Aluminum Alloy

2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

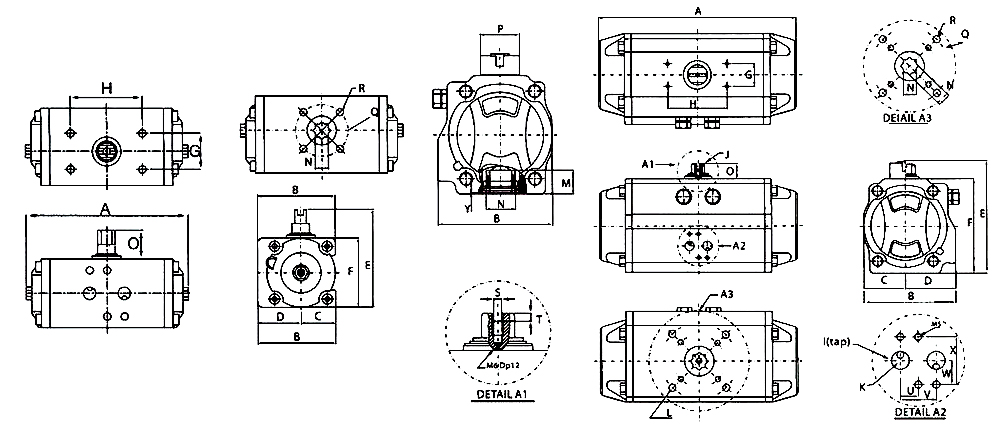

Pneumatic Actuator Dimension (Unit: mm)

CHN-AT145D

CHN-AT160D

Note: 2 way flanged type ball valve matches with CHN-AT145D actuator, and 3 way flanged type ball valve matches with CHN-AT160D actuator.

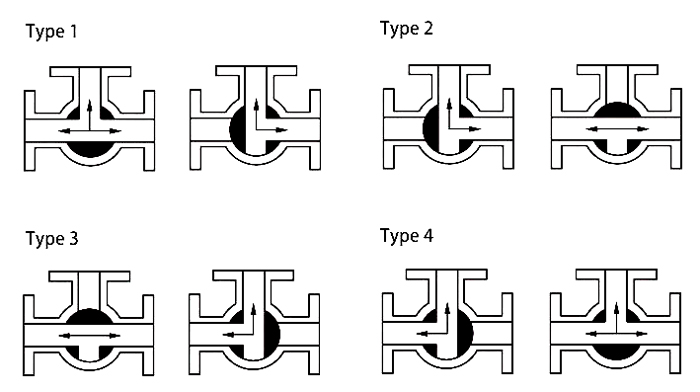

Three Way Ball Valve Flow Pattern

T Type:

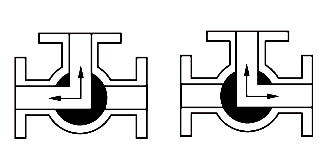

L Type:

Tips: Pneumatic actuated ball valve working principle

Pneumatic actuated ball valve is a kind of pneumatic valve, which is driven by air source. Pneumatic ball valve is composed of a pneumatic actuator and a ball valve, which not only saves time and effort, but also can control multiple ball valves at the same time through the controller. The compressed air enters the pneumatic actuator to drive the ball valve to turn 0~90°, open and close the valve to control the size of the fluid. The valve positioner can be assembled according to the working conditions, so that the ball valve can adjust the medium. When the ball valve rotates to 90°, the valve is closed, thereby blocking the flow of the medium.
