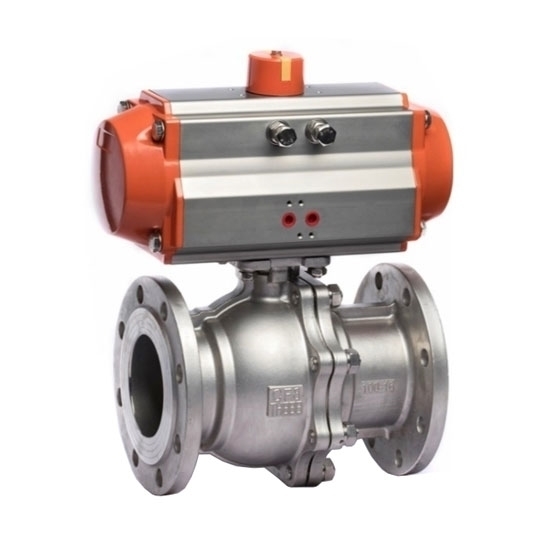

2" Pneumatic Ball Valve, 2 Way/ 3 Way

Industrial 2 inch pneumatic ball valve with an air actuator requires compressed air to work, which is widely used for controlling water, gas, oxygen and other air and fluid in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

• Model: CHN-PBV-50A
• Actuator Model: CHN-AT075D, CHN-AT088D, CHN-AT100D
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Number of Ways: 2 Way, 3 Way
• Ball Valve Type: Threaded Type, Flanged Type, PVC True Union Type
• Port Size: 2 inch (DN50, 50mm)
• Bore Size: 75mm, 88mm, 100mm
• Pressure Range: ≤1000PSI (6.9MPa)
• Air Pressure: 0.3 ~ 0.8MPa
• Air Supply Port: 1/4 inch
• Environment Temperature: -10°C to 60°C
• Medium Temperature: -10°C to 180°C
• Seat Material: Plastic (PTFE)
• Ball Valve Material: Stainless Steel (SS 316/ 304), PVC
• Actuator Body Material: Aluminum Alloy

Body Dimension (Unit: mm)

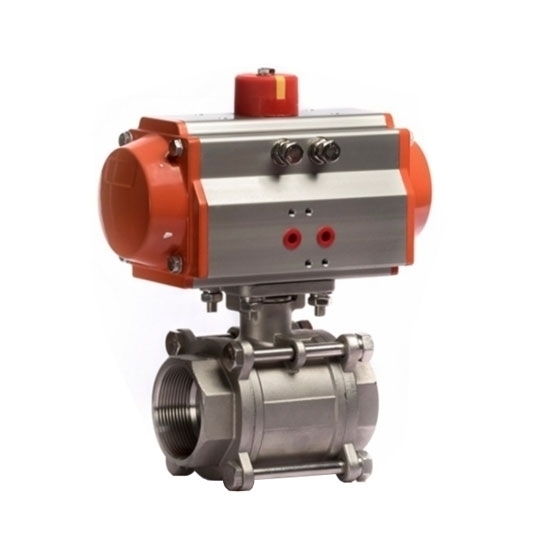

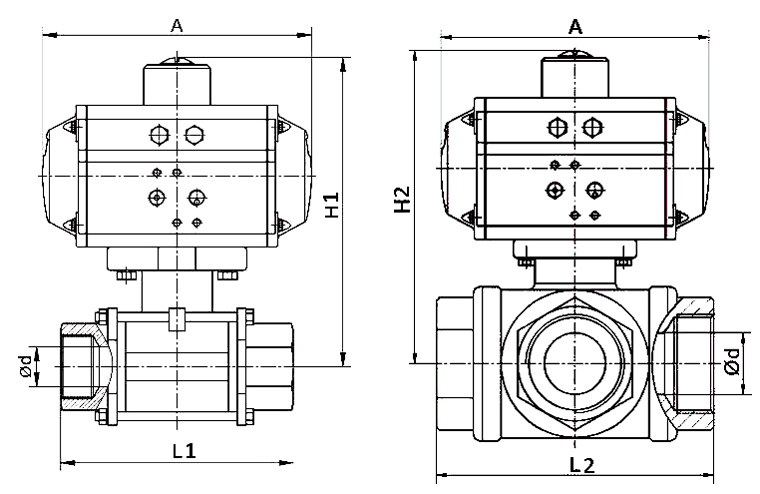

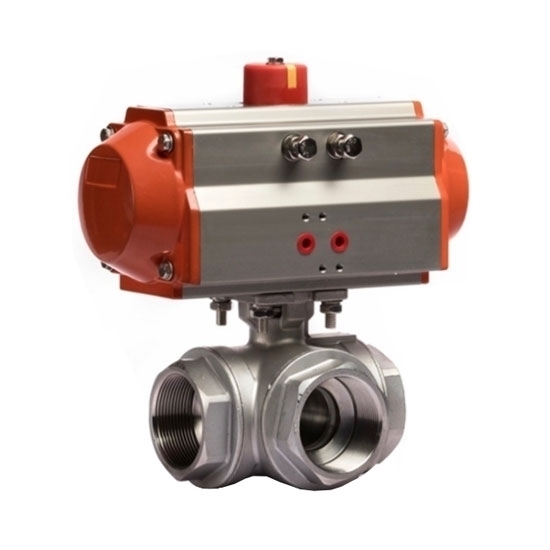

2 way/ 3 way, stainless steel, threaded type

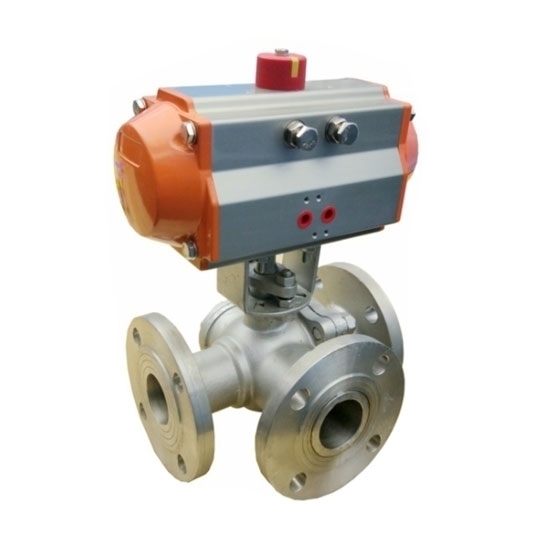

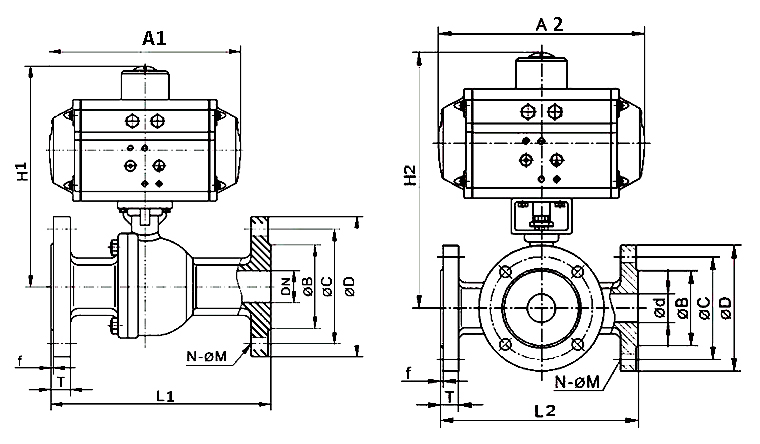

2 way/ 3 way stainless steel, flanged type

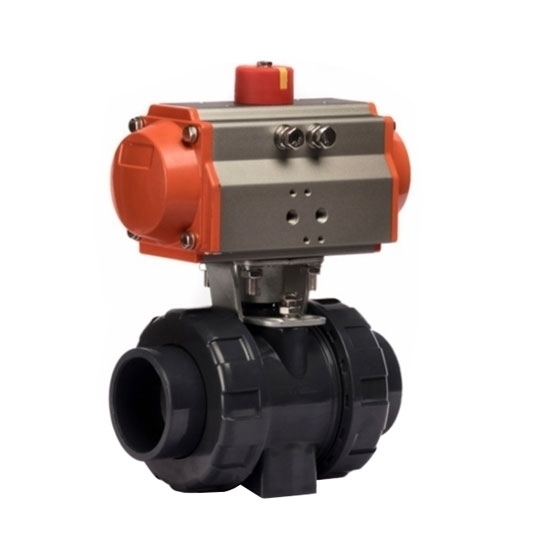

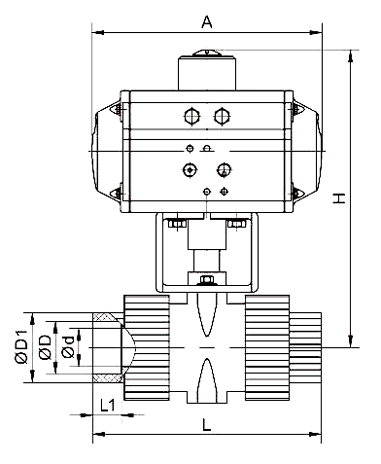

2 way, PVC true union type

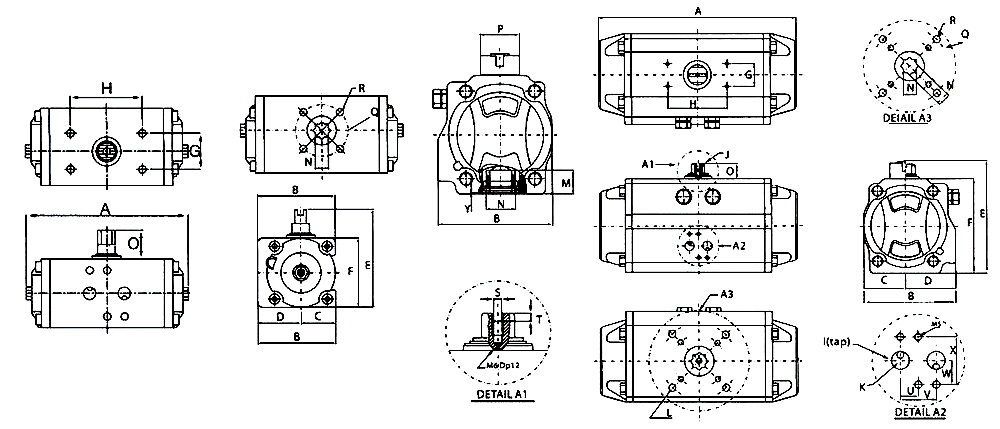

Pneumatic Actuator Dimension (Unit: mm)

CHN-AT075D

CHN-AT088D

CHN-AT100D

Note: Threaded type ball valve and PVC true union ball valve match with CHN-AT075D actuator, 2 way flanged type ball valve matches with CHN-AT088D actuator, and 3 way flanged type ball valve matches with CHN-AT0100D actuator.

Three Way Ball Valve Flow Pattern

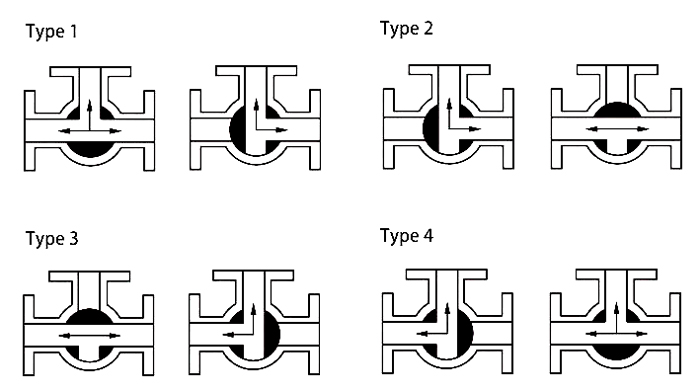

T Type:

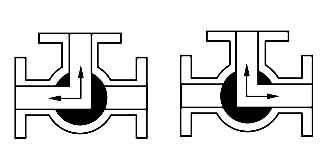

L Type:

Tips for maintaining a pneumatic actuated ball valve

1. Check whether the filter, pressure reducing valve and lubricator are normal, and observe whether the air pressure is 0.3 ~ 0.8MPa.
2. Observe whether there is air leakage in the pneumatic actuator, especially at the connection of the valve stem and the cover at both ends.
3. Check whether the positioner works normally and whether there is air leakage.
4. Check whether the fixing screws of all connecting parts are tight.
5. Try to avoid too much floating ash covering the actuator, and keep the working environment clean.
