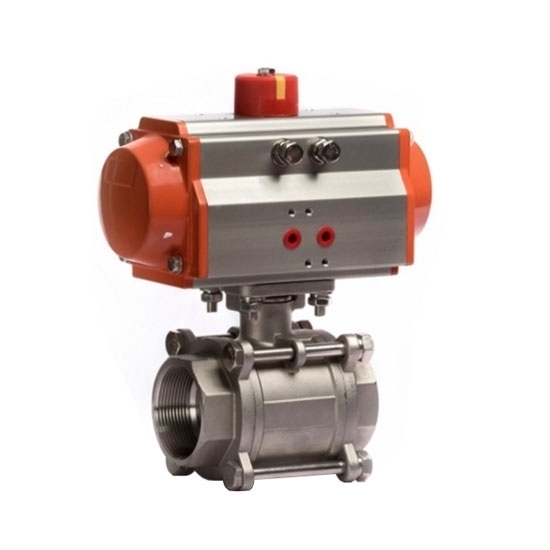

1" Pneumatic Ball Valve, 2 Way/ 3 Way

Industrial 1 inch pneumatic ball valve with an air actuator requires compressed air to work, which is widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

• Model: CHN-PBV-25A
• Actuator Model: CHN-AT050D, CHN-AT063D
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Number of Ways: 2 Way, 3 Way
• Ball Valve Type: Threaded Type, Flanged Type, PVC True Union Type
• Port Size: 1 inch (DN25, 25mm)
• Bore Size: 50mm, 63mm
• Pressure Range: ≤1000PSI (6.9MPa)
• Air Pressure: 0.3 ~ 0.8MPa
• Air Supply Port: 1/8 inch or 1/4 inch
• Environment Temperature: -10°C to 60°C
• Medium Temperature: -10°C to 180°C
• Seat Material: Plastic (PTFE)
• Ball Valve Material: Stainless Steel (SS 316/ 304), PVC
• Actuator Body Material: Aluminum Alloy

Body Dimension (Unit: mm)

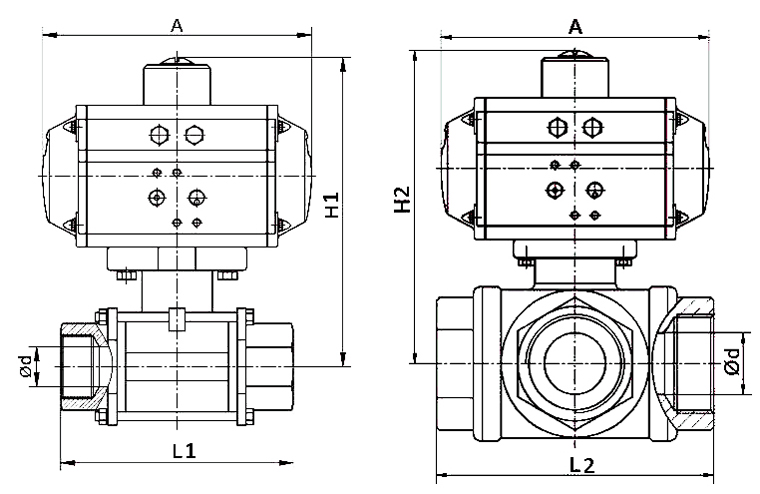

2 way/ 3 way, stainless steel, threaded type

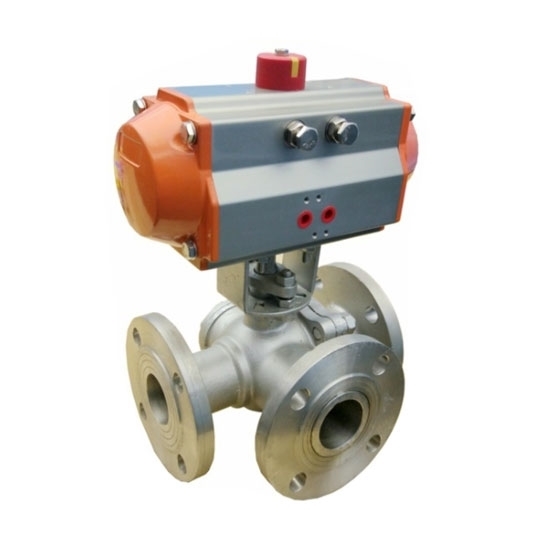

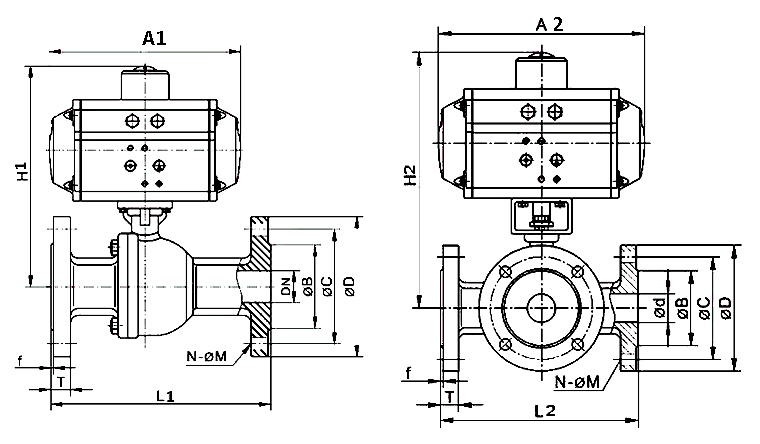

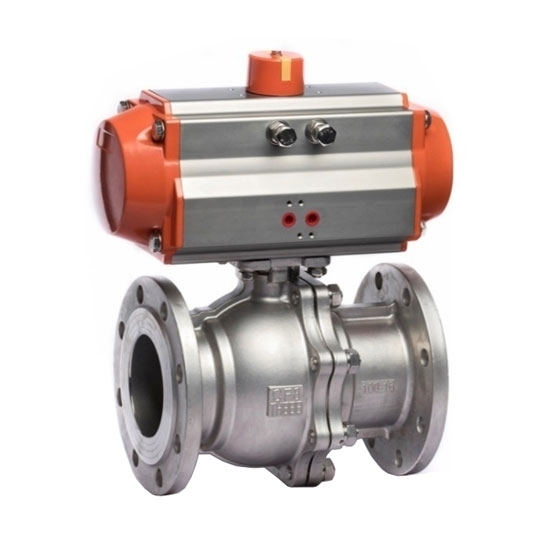

2 way/ 3 way stainless steel, flanged type

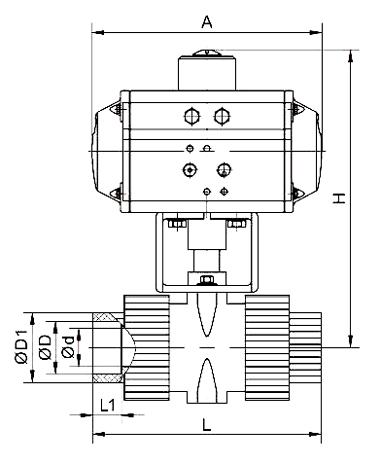

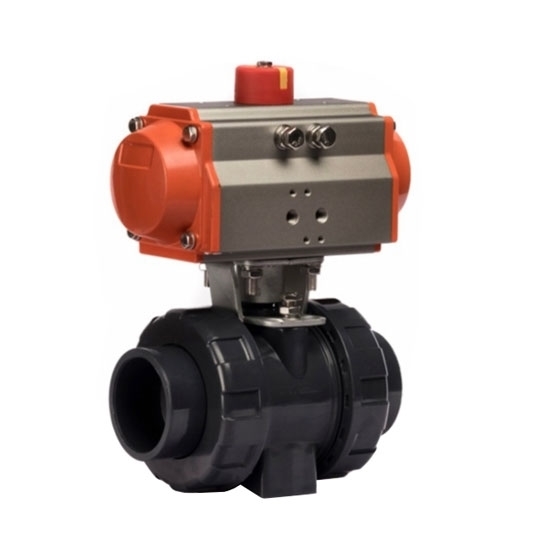

2 way, PVC true union type

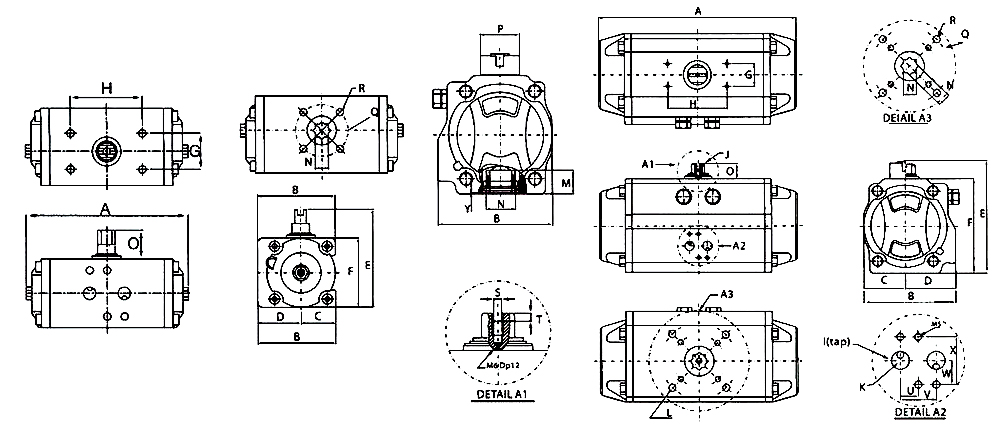

Pneumatic Actuator Dimension (Unit: mm)

CHN-AT050D

CHN-AT063D

Note: Threaded type ball valve and PVC true union ball valve match with CHN-AT050D actuator, and flanged type ball valve matches with CHN-AT063D actuator.

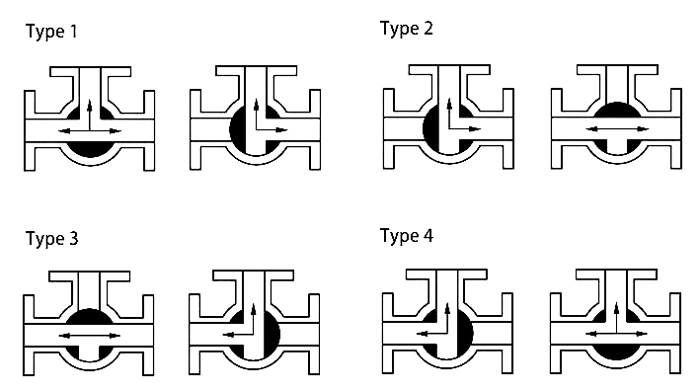

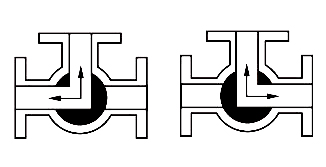

Three Way Ball Valve Flow Pattern

T Type:

L Type:

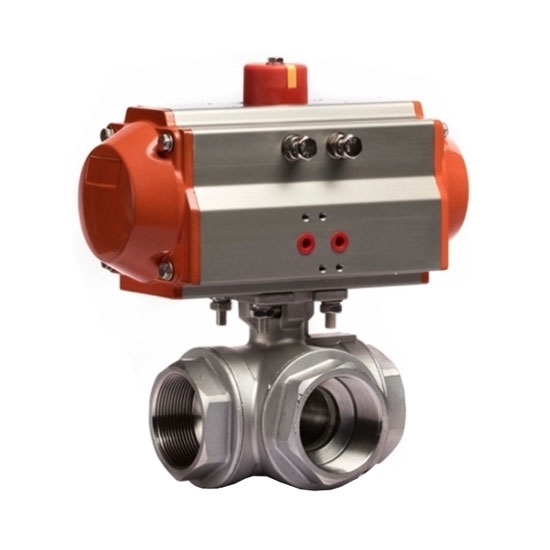

Tips: How to install a threaded 3 way pneumatic ball valve?

• Remove the protective covers on both sides of the flange end of the pneumatic three-way female ball valve, and rinse and clean with the valve fully open.
• The whole machine should be tested according to the regulations before installation, and it can be installed online only after passing the test.
• Before preparing to connect with the pipeline, it is necessary to rinse and remove the remaining impurities in the clean pipeline.
• During the installation of the pneumatic three-way internal thread ball valve, please do not use the actuator part of the valve as the lifting point to avoid damage to the actuator and accessories.
• The 3 way threaded pneumatic ball valve should be installed in the horizontal or vertical direction of the pipeline.
• The pipeline near the installation point of the pneumatic three-way ball valve shall not be sagging or subjected to external force. Pipe supports or supports can be used to eliminate the deviation of the pipeline.
• After the pneumatic ball valve is connected to the pipeline, please cross-lock the flange connecting bolts with the specified torque.
