1/2" Pneumatic Ball Valve, 2 Way/ 3 Way

Compact pneumatic actuated ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. This air powered ball valve is made from high performance PVC or stainless steel, allowing it to service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

• Model: CHN-PBV-15A
• Actuator Model: CHN-AT050D, CHN-AT063D
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Number of Ways: 2 Way, 3 Way
• Ball Valve Type: Threaded Type, Flanged Type, PVC True Union Type
• Port Size: 1/2 inch (DN15, 15mm)
• Bore Size: 50mm, 63mm
• Pressure Range: ≤1000PSI (6.9MPa)
• Air Pressure: 0.3 ~ 0.8MPa
• Air Supply Port: 1/8 inch or 1/4 inch
• Environment Temperature: -10°C to 60°C
• Medium Temperature: -10°C to 180°C
• Seat Material: Plastic (PTFE)
• Ball Valve Material: Stainless Steel (SS 316/ 304) or PVC
• Actuator Body Material: Aluminum Alloy

Body Dimension (Unit: mm)

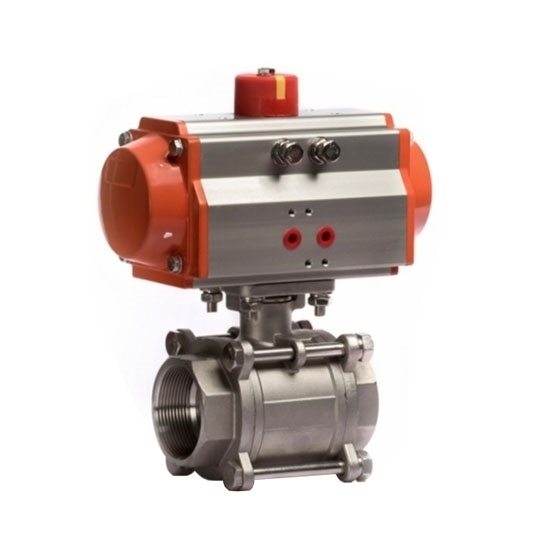

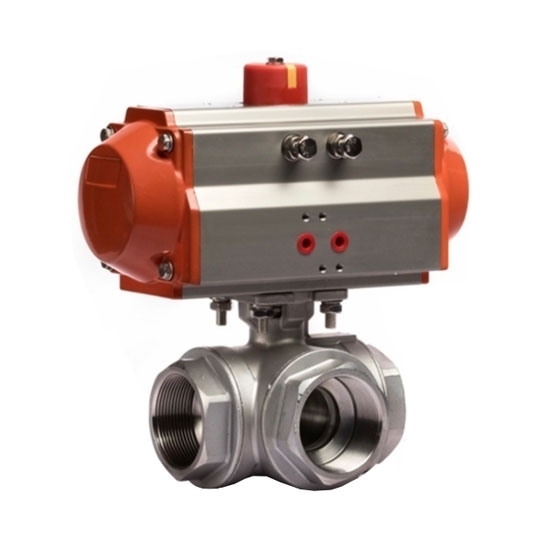

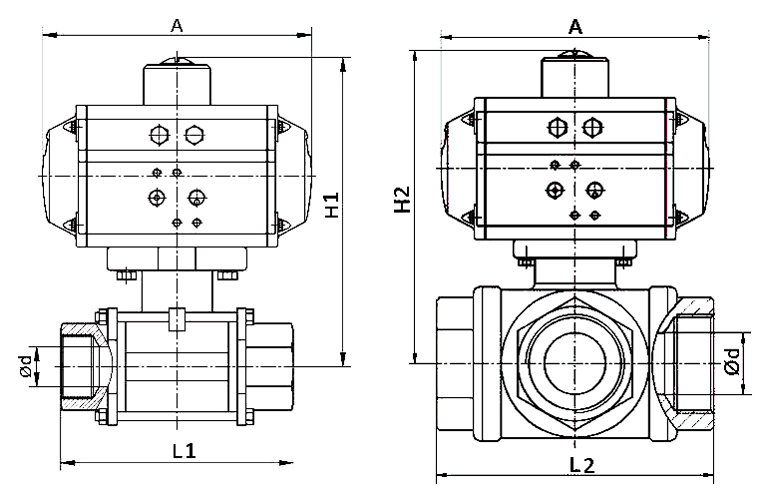

2 way/ 3 way, stainless steel, threaded type

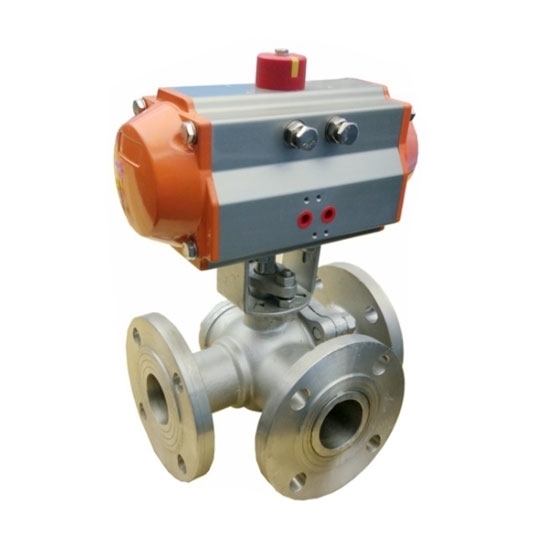

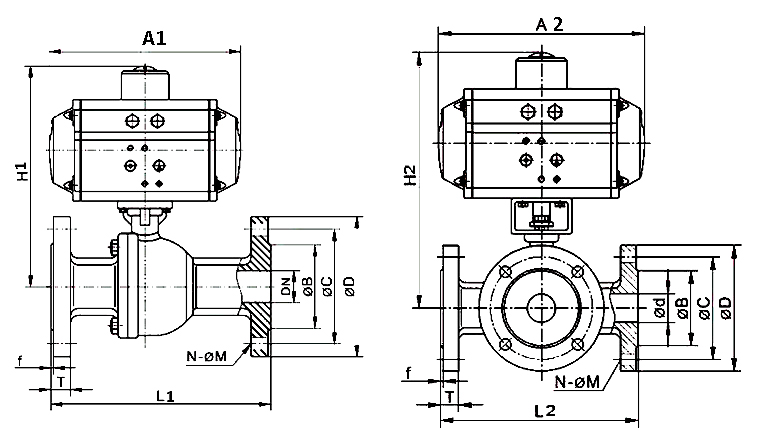

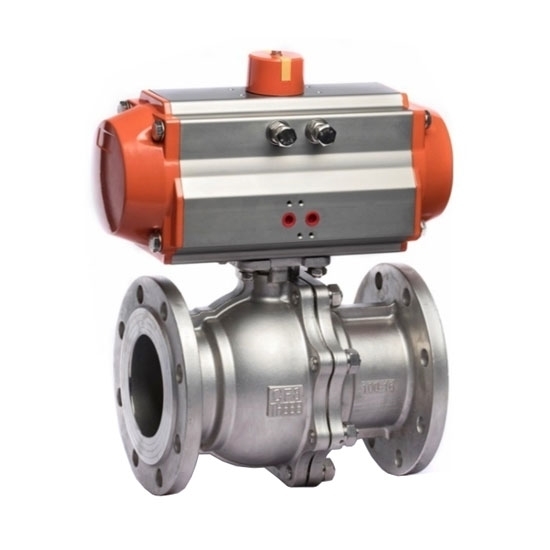

2 way/ 3 way stainless steel, flanged type

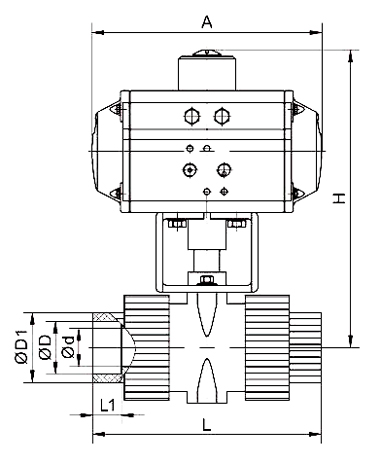

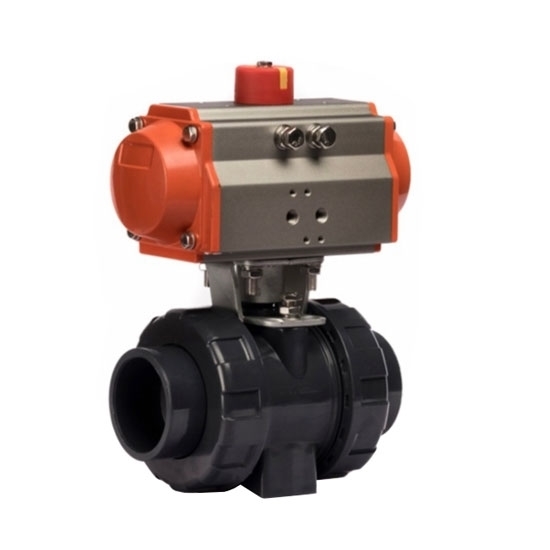

2 way, PVC true union type

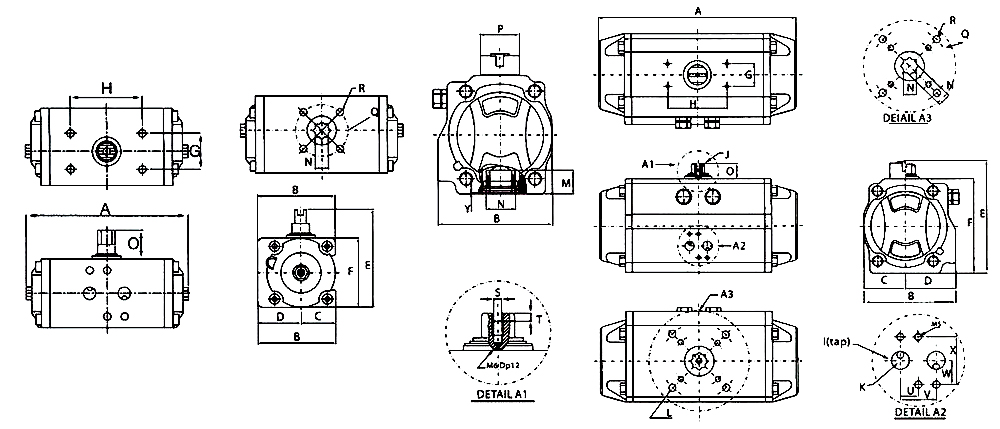

Pneumatic Actuator Dimension (Unit: mm)

CHN-AT050D

CHN-AT063D

Note: 3 way flanged ball valve matches with CHN-AT063D actuator, other ball valves match with CHN-AT050D actuator.

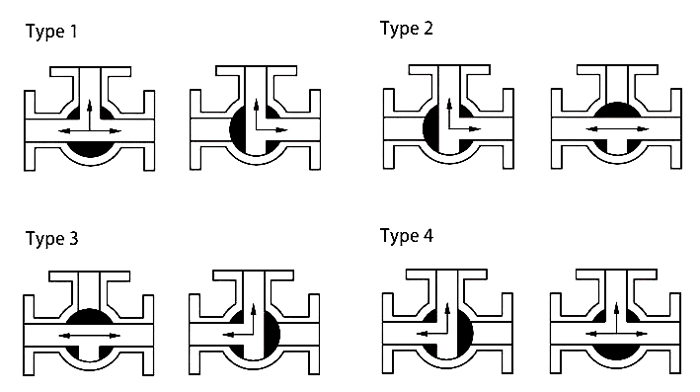

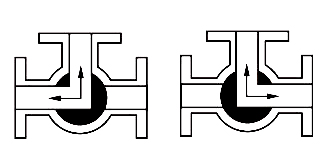

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: Threaded type pneumatic ball valve features

• The fluid resistance is small, and its resistance coefficient is equal to the pipe section of the same length.
• Simple structure, small size and light weight.
• The sealing material of the ball valve is plastic, which has good sealing performance. The threaded ball valve also is widely used in vacuum systems.
• Convenient operation, quick opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for long-distance control.
• The maintenance is convenient, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
• When fully open or fully closed, the sealing surfaces of the sphere and the valve seat are isolated from the medium, and the sealing surface of the valve will not be eroded when the medium passes through.
• It has a wide range of applications and can be applied from high vacuum to high pressure.
