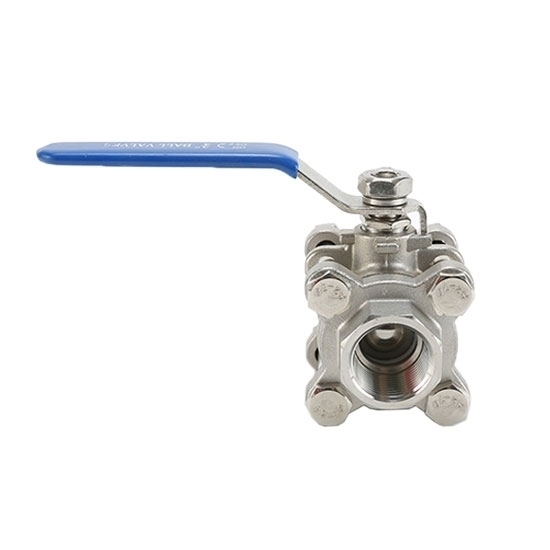

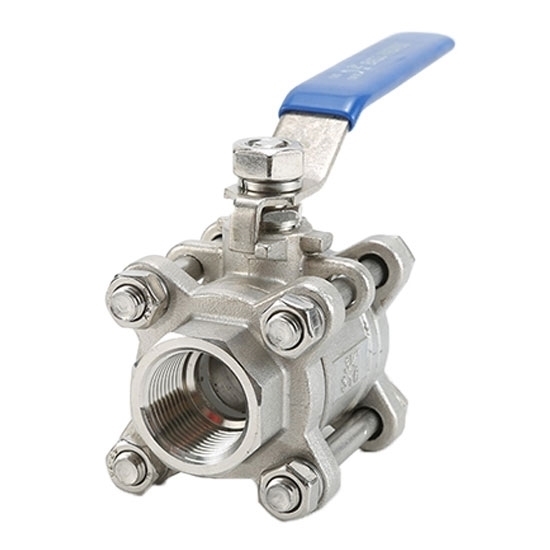

Three piece ball valve, 3 inch, stainless steel material, opens and closes quickly, and it only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.

Specification

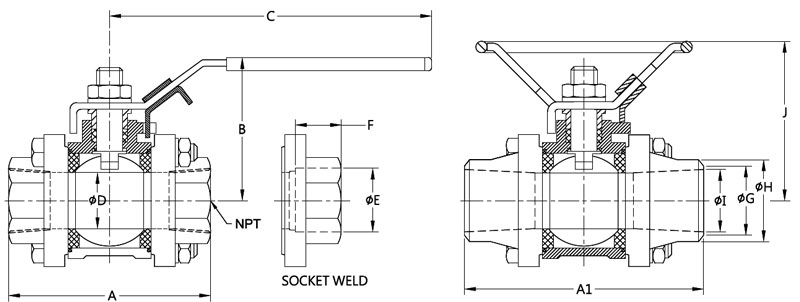

3 Inch Ball Valve Dimension (unit: mm)

Stainless Steel Ball Valve Applications

 Tips: Structural characteristics of two-piece ball valve

1. Open and close without friction
This function completely solves the problem of traditional valves affecting the sealing due to mutual friction between the sealing surfaces.

2. Top loading structure
The valves installed on the pipeline can be directly inspected and repaired online, which can effectively reduce device shutdown and reduce costs.

3. Single valve seat design
Eliminates the problem that the medium in the valve cavity affects the safety of use due to abnormal pressure increase.

4. Low torque design
The valve stem with special structure design can easily open and close the valve with only a small handle.

5. Wedge-shaped sealing structure
The valve is sealed by the mechanical force provided by the valve stem to press the ball wedge onto the valve seat, so that the sealing performance of the valve is not affected by the change of pipeline pressure, and the sealing performance is reliably guaranteed under various working conditions.

6. Self-cleaning structure of the sealing surface
When the ball tilts away from the valve seat, the fluid in the pipeline passes through the ball sealing surface at 360° uniformly, which not only eliminates the local washing of the valve seat by the high-speed fluid, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.
