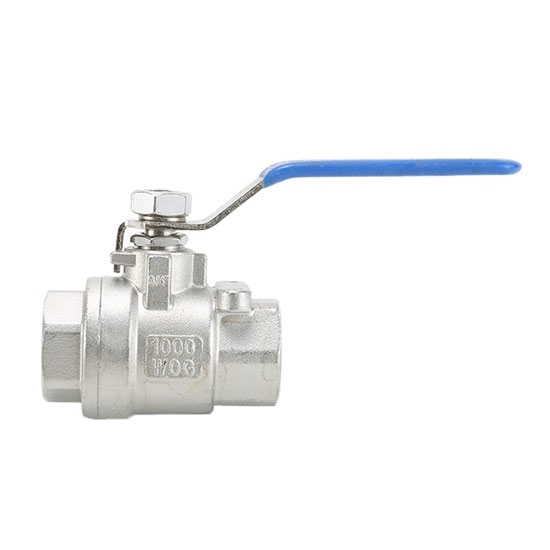

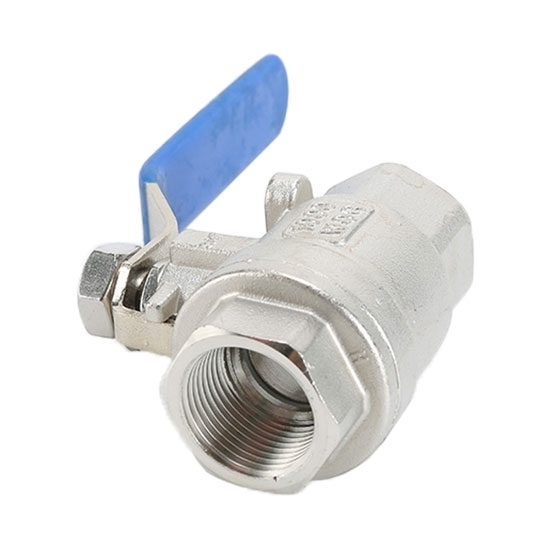

2 Piece Ball Valve, 2 Inch

Small size 2" ball valve, two piece, adjustable shaft packing, full port ball vavle is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.

Specification

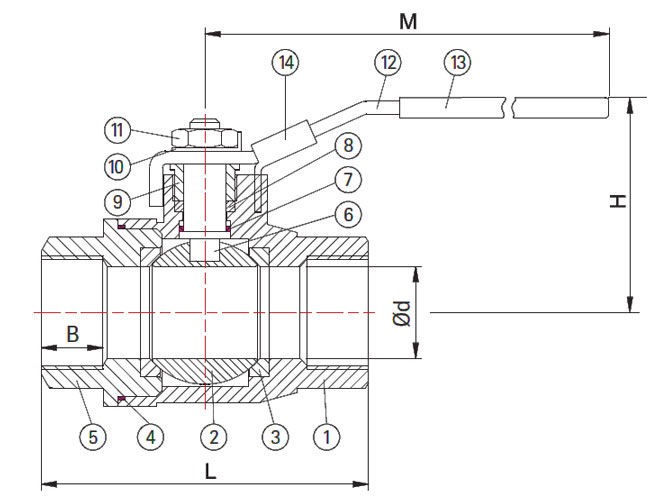

2 Inch Full Port Ball Valve Dimension (unit: mm)

2 Piece Shut Off Ball Valve Part List

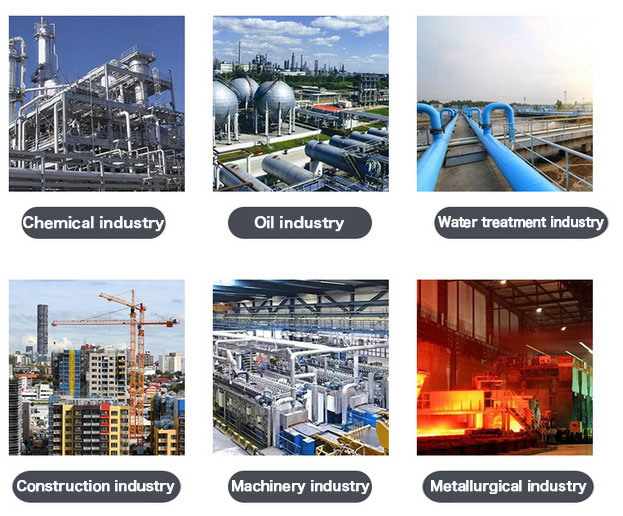

Stainless Steel Ball Valve Applications

Tips: Why choose ATO ball valve?

1. The ATO ball valve has low fluid resistance, and the full-bore ball valve basically has no flow resistance.
2. The stainless steel ball valve has simple structure, small size and light weight.
3. Close and reliable. It has two sealing surfaces, and the sealing surface material of the ball valve is widely used in various plastics, which has good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.
4. The ball valve is easy to operate and open and close quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.
5. Convenient maintenance, simple structure of the ball valve, generally movable sealing ring, easy to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
7. ATO ball valve has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.
8. Because the ball valve has the wiping property during the opening and closing process, it can be used in the medium with suspended solid particles.
9. The processing accuracy is high, the cost is expensive, and it is not suitable for use in high temperature. If there are impurities in the pipeline, it is easy to be blocked by the impurities, and the valve cannot be opened.
