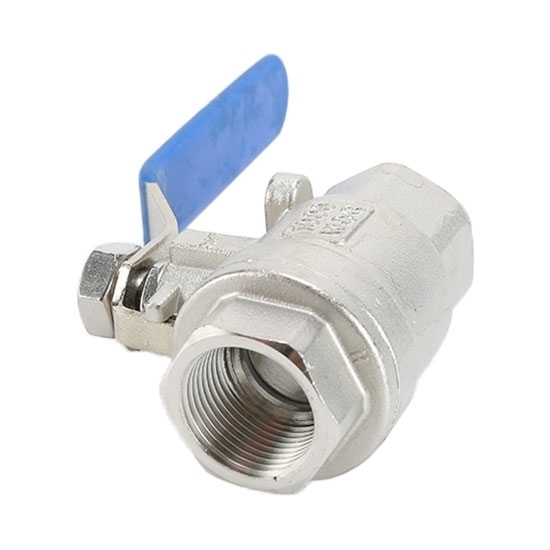

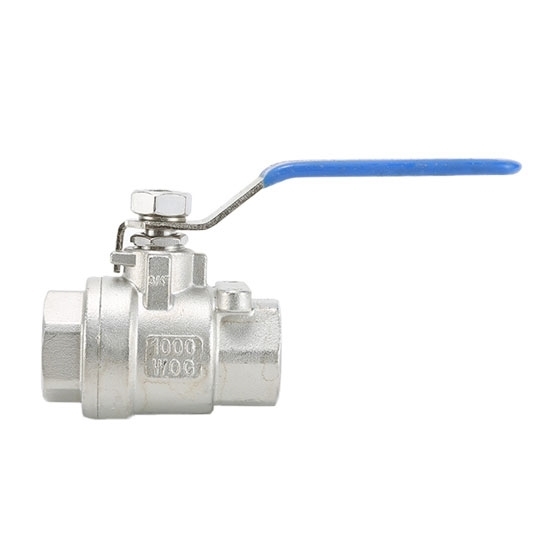

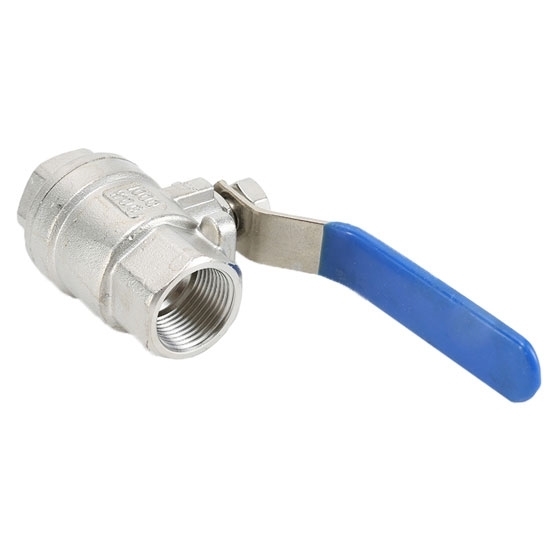

2 Piece Ball Valve, 1.5 Inch

Shut off ball vavle for oil, water and gas, 1.5 inch size, 69 bar (1000 psi), ball vavle made of stainless steel, safe, sturdy and durable, with long service life.

Specification

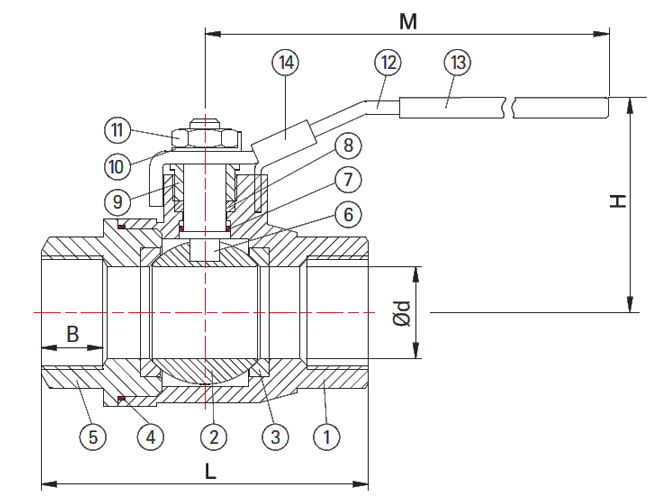

1.5 Inch Full Port Ball Valve Dimension (unit: mm)

2 Piece Shut Off Ball Valve Part List

Stainless Steel Ball Valve Applications

Tips: Features of stainless steel ball valve

1. The thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
2. Anti-static function: a spring is set between the ball, valve stem, and valve body, which can lead out the static electricity generated during the switching process.
3. Since materials such as polytetrafluoroethylene have good self-lubricating properties and small friction loss with the ball, the pneumatic ball valve has a long service life.
4. Small fluid resistance: Pneumatic ball valves have the smallest fluid resistance among all valve categories. Even the reduced diameter pneumatic ball valves have relatively small fluid resistance.
5. Reliable valve stem sealing: Since the valve stem only rotates and does not move up and down, the packing seal of the valve stem is not easy to be damaged, and the sealing ability increases with the increase of the medium pressure.
6. Good sealing performance of the valve seat: The sealing ring made of elastic materials such as polytetrafluoroethylene has a structure that is easy to seal, and the valve sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
