Model	CHN-BV-Q11F-38
Connection Method	Internal Thread
Material	304 Stainless steel/316 Stainless steel
Operating Temperature	-20℃~+150℃
Pressure Rating	1000PSI W.O.G
Pressure Test	API598
DN	10
NPS	3/8 Inch
FxF	45
φd	7
h1	36
I1	67
CV Factor	4
Torqur (N.m)	67
Weight	1 kg
Warranty	12 Months
Certificate	ISO 9001: 2008

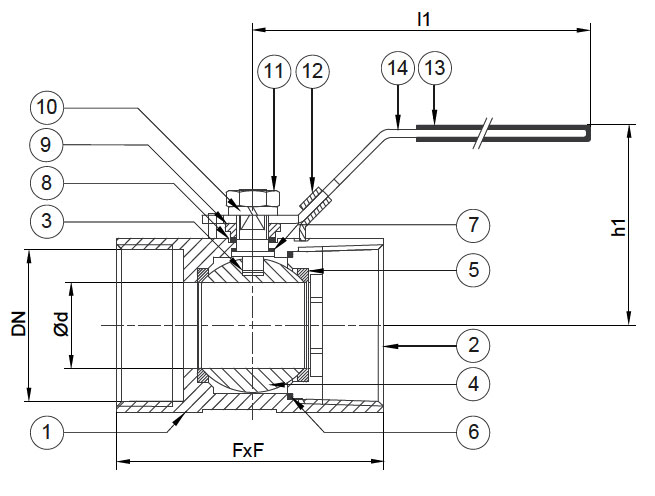

No.	Description	Material
1	Body	CF8M
2	Cap	CF8M
3	Stem	SS316
4	Ball	CF8M
5	Seat	PTFE
6	Joint Gasket	PTFE
7	Thrust Washer	PTFE
8	Stem Packing	PTFE
9	Washer	SS304
10	Spring Washer	SS304
11	Stem Nut	SS304
12	Locking Device	SS304
13	Handle	SS304
14	Handle Sleeve	Plastic
