5 kVA 100 kV AC DC Automatic Hipot Tester

5 kVA 100 kV AC DC automatic hipot tester can directly measure the AC leakage current on the high voltage side, the range is 0-50ma, if you want to measure the DC high voltage side (0-140kV) leakage current, you need to add an additional DC milliampere meter, the range is 0-1.999ma.

Control Module Specifications

Test Transformer (HV Unit) Specifications

Packing List

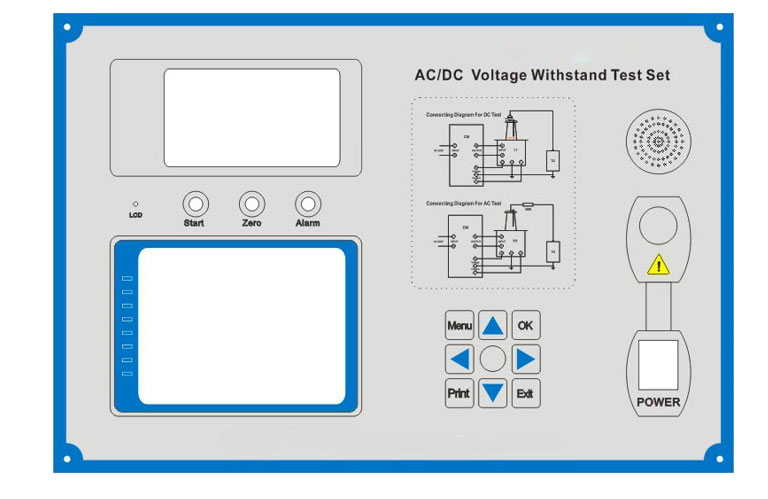

Panel Descriptions

• There are miniature thermal printers in AC and DC high voltage test equipment. Press the print button on the panel to print out the results.

• The contrast of the LCD display can be adjusted.

• Turn on the indicator light, which will light up when the test starts.

• Zero indicator light. When the voltage regulator is at the zero position, this lamp will light.

• Alarm indicator. When a fault or protective action occurs, the light is on.

• LCD screen, 320X240 dot matrix, white backlight.

• Wiring diagram, refer to the wiring diagram for AC and DC testing.

• Keyboard, interactive terminal between user and device.

• Buzzer, sound alarm.

• Emergency stop button, press this button to cut off the power and end.

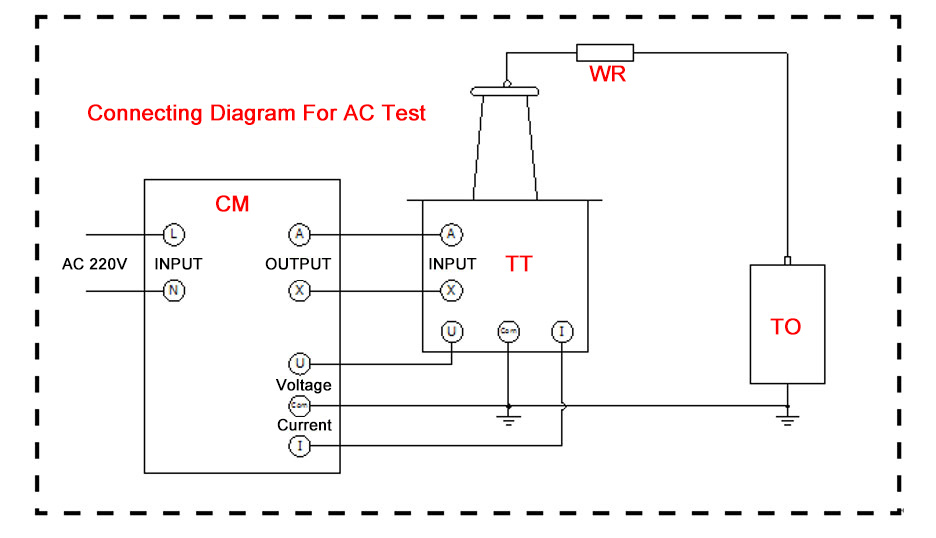

AC Test Wiring Diagram

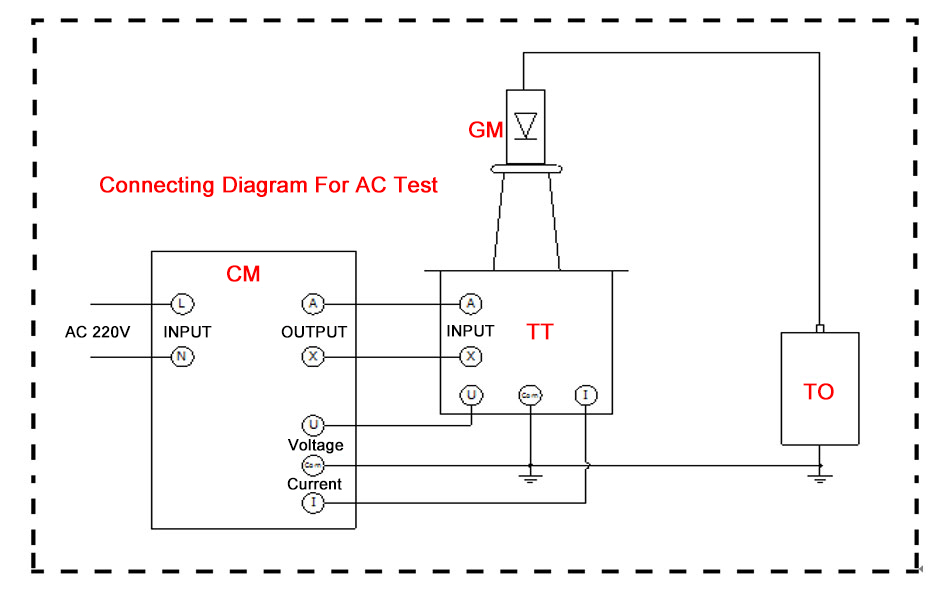

DC Test Wiring Diagram

Note:
CM: Control box
TT: Test transformer
WR：Water resistance
TO: Test object
GM: Diode
