Digital counter has 5 digit display, frequency/rev/linear speed measuring function, DC 12V/24V external power supply.

Features:

• Various parameter settings, simple operation.
• Input: Various waveform pulses (square wave, triangle wave), proximity sensor, photoelectric sensor, voltage signal, contact switch, encoder, etc.
• Digital counter can also be used to measure the power frequency (AC 0-600V), measurement range: 0.01Hz-100KHz, resolution: 0.01Hz.
• 5 digit display, decimal point automatic conversion.
• Input/output signals photoelectric isolated, anti-interference ability.
• Digital output: Up to 3 alarms, high value, low value, high and low value alarm modes are optional, analog output: 4-20mA or 0-10V transmission output, measuring range setting arbitrarily.
• Standard RS232 or RS485 MODBUS RTU communication, can be directly connected with computers, PLC or other equipments.

Specification:

Selection table:

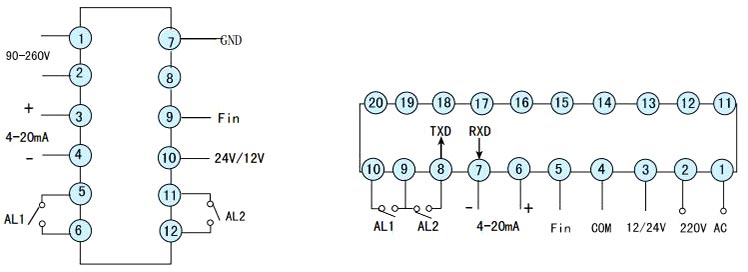

Wiring diagram:

Tips: Digital counter application in positioning control
The paper cutter is one of the most commonly used equipment in the printing and packaging industry. The most basic action of paper cutter is to send the material to be cut to the designated location and then cut it. Using the high-speed counting function of counter in PLC positioning system and combining the multi-speed function of VFD can achieve positioning control, and using HMI can perform cutting parameter setting and some manual actions. This control system can well solve the phenomenon that the positioning inaccuracy, the cutting action is disordered, and the normal production cannot be performed, which are caused by the aging of SCM system after use for a period of time.
