Digital counter has 4 digit display, frequency/rev/linear speed measuring function, DC 12V/24V external power supply.

Features:

• Various parameter settings, simple operation.
• Input: Various waveform pulses (square wave, triangle wave), proximity sensor, photoelectric sensor, voltage signal, contact switch, encoder, etc.
• Digital counter can also be used to measure the power frequency (AC 0-600V), measurement range: 0.01Hz-100KHz, resolution: 0.01Hz.
• 4 digit display, decimal point automatic conversion.
• Input/output signals photoelectric isolated, anti-interference ability.
• Digital output: Up to 3 alarms, high value, low value, high and low value alarm modes are optional, analog output: 4-20mA or 0-10V transmission output, measuring range setting arbitrarily.
• Standard RS232 or RS485 MODBUS RTU communication, can be directly connected with computers, PLC or other equipments.

Specification:

Selection table:

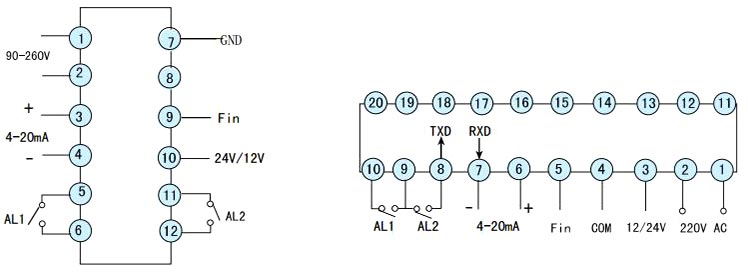

Wiring diagram:

Tips: Digital counter application in digital system
