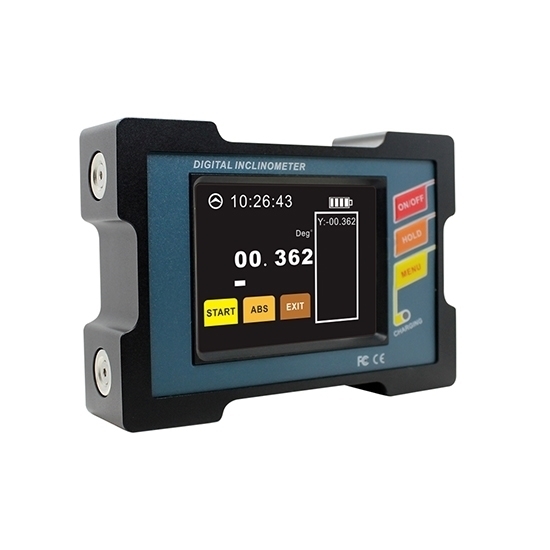

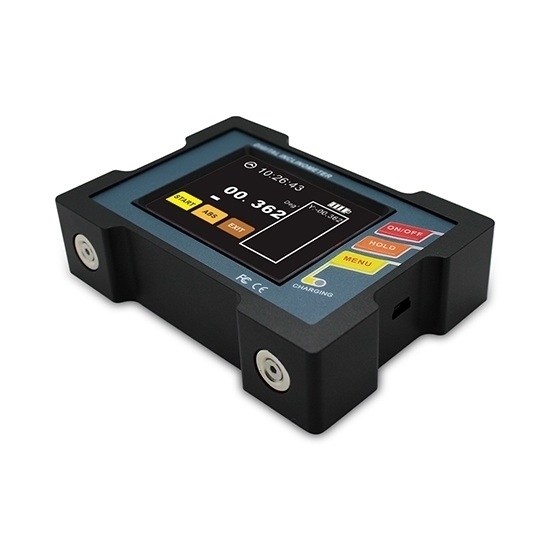

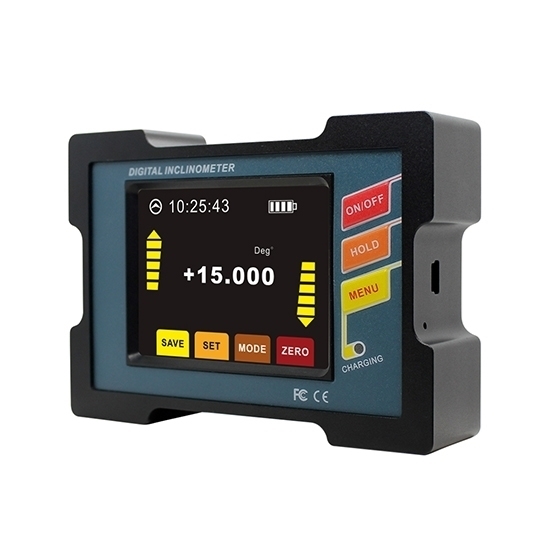

Digital Inclinometer, Dual Axis, Output RS485/ RS232

Dual axis digital inclinometer with 10g rms, 10-100Hz shock impact, designed with aluminum anodizing which offers long service lifetime.

Features

• Accuracy: <0.003°
• Repeatability: 0.003°
• Angle resolution: 0.001°
• Measuring range: ±15°/ ±30°
• Data store function.
• Absolute/Relative measurement can switch.
• Both sides and bottom can be measured.
• Double benchmark strong magnet installation.
• Auto-angle interleaved compensation function.
• Auto temperature drift compensation.
• Built-in rechargable industy battaries.
• Night vision fours colors screen.
• Filter frequency optional.

Specification

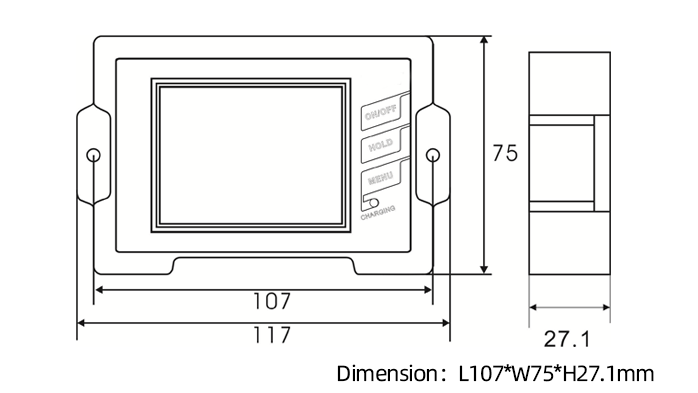

Dimension (unit=mm)

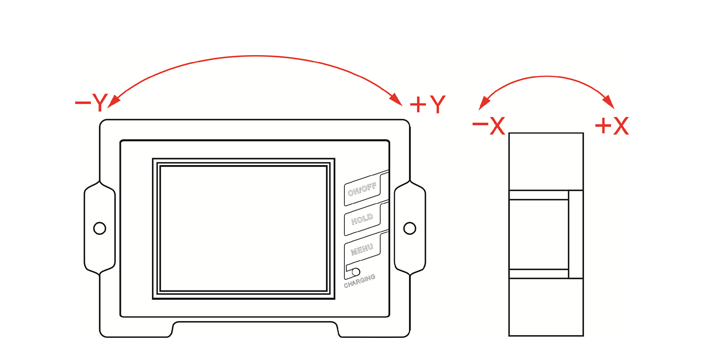

Measuring Direction

Tips: Precautions of Digital Inclinometer.

1. Keep it clean when in use, and wipe the instrument regularly.
2. The working temperature should be kept at 0℃~4o℃.
3. Sensitivity will decrease due to usage conditions or time, so it should be calibrated regularly to maintain basic accuracy.
4. The relative humidity of the environment should be ≤80%.
5. After use, it should be placed in a dry environment.
