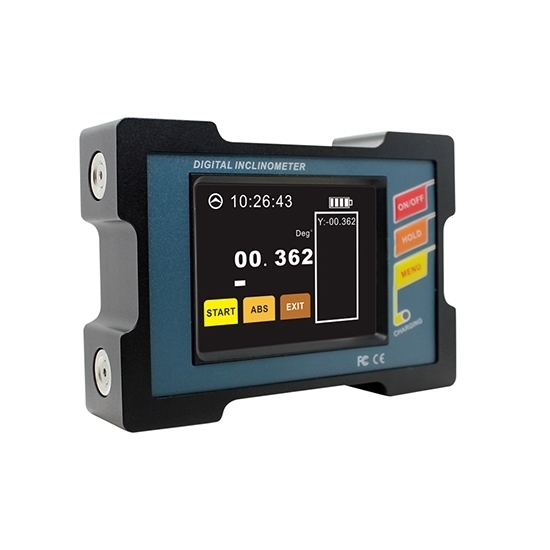

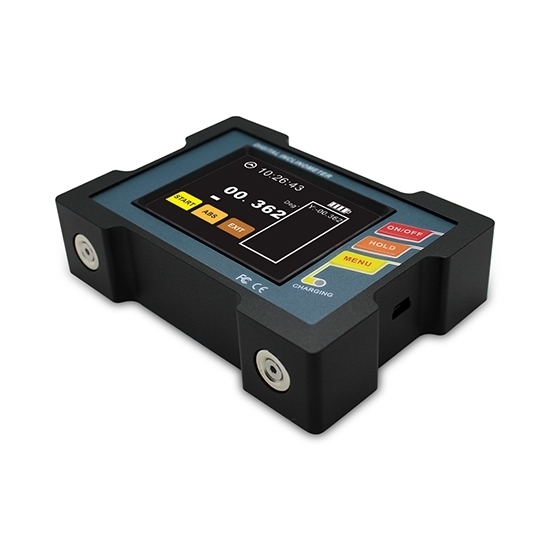

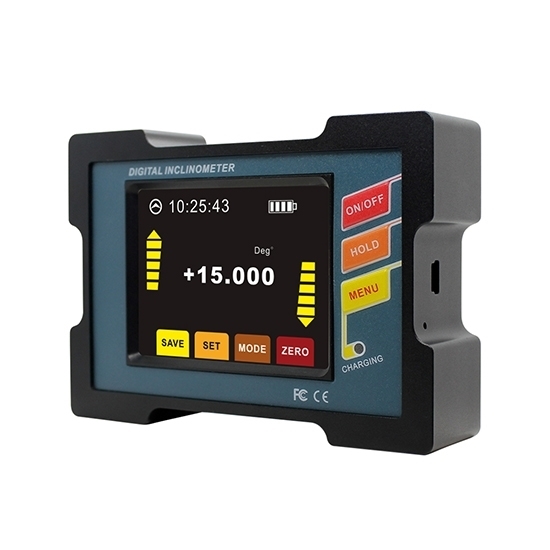

Digital Inclinometer, Single Axis, Output RS485/ RS232

Cheap price digital inclinometer with sigle axis, 64-color true color luminous display LCD, L57.6mm*W43.2mm LCD visible area size. It offers light weight,small size advantages.

Features

• Accuracy: <0.003°
• Repeatability: 0.003°
• Angle resolution: 0.001°
• Measuring range: ±15°/ ±30°
• Data store function.
• Absolute/Relative measurement can switch.
• Both sides and bottom can be measured.
• Double benchmark strong magnet installation.
• Auto-angle interleaved compensation function.
• Auto temperature drift compensation.
• Built-in rechargable industy battaries.
• Night vision fours colors screen.
• Filter frequency optional.

Specification

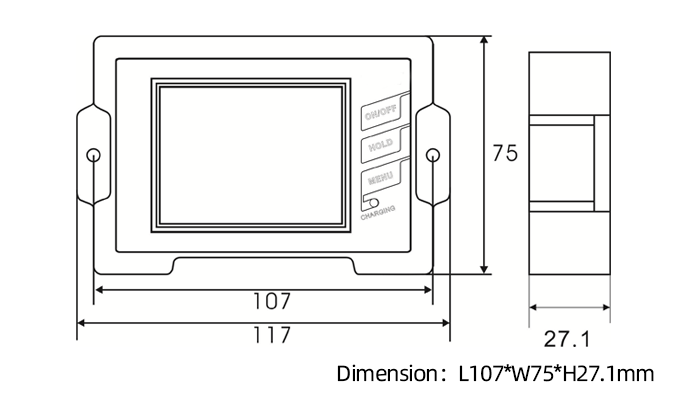

Dimension (unit=mm)

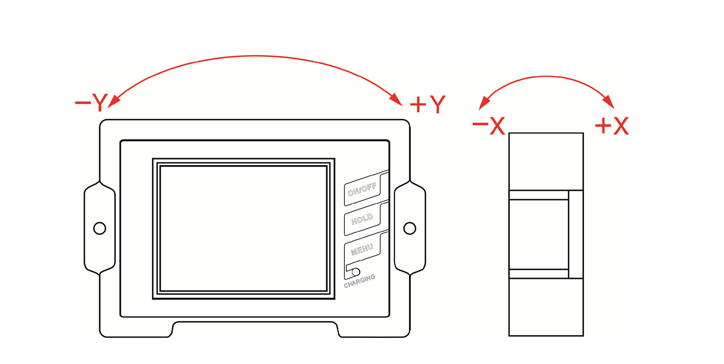

Measuring Direction

Tips: The Principle of Digital Inclinometer.　　
When the shaft in the base body rotates in one direction, the count increases, and when the rotation direction changes, the count decreases. The count is related to the initial position of the inclinometer. When initializing the inclinometer, its count value is set to 0. By calculating the angle of rotation, the position and speed can be easily measured.
