Model	DMI810-15	DMI810-30
Angle Measuring Range	±15°	±30°
Mm Measuring Range	267mm	577mm
Millimeter Measuring Accuracy	0.1 mm (RMS)	0.2 mm (RMS)
The Highest Measuring Accuracy	＜0.005 (Full measuring range)	＜0.001 (Full measuring range)
Measuring Axis	Single axis
Angle Measuringt Solution	0.001°
Three Measuring Mode Selectable	Radian, Angle, mm/meter can be set
Millimeter Measuring LCD	0.02 mm
LCD	64-color true color luminous display
LCD Visible Area Size	L57.6mm*W43.2mm
Working Temperature	-10℃-70℃
Working Humidity	85% RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Sustainable Charging Times	11h
Output Signal	USB1.1 (Virtual Serial Device)
Equipped with PC Software	VC Software
Connect Plug in	Standard 5 Pin USB Connector
Shock Resistance	10g @11ms, three-axis (Half sine wave)
Shock Impact	10g rms, 10-100Hz
Weight	300g
Waterproof Grade	IP54
Material	Aluminum Anodizing

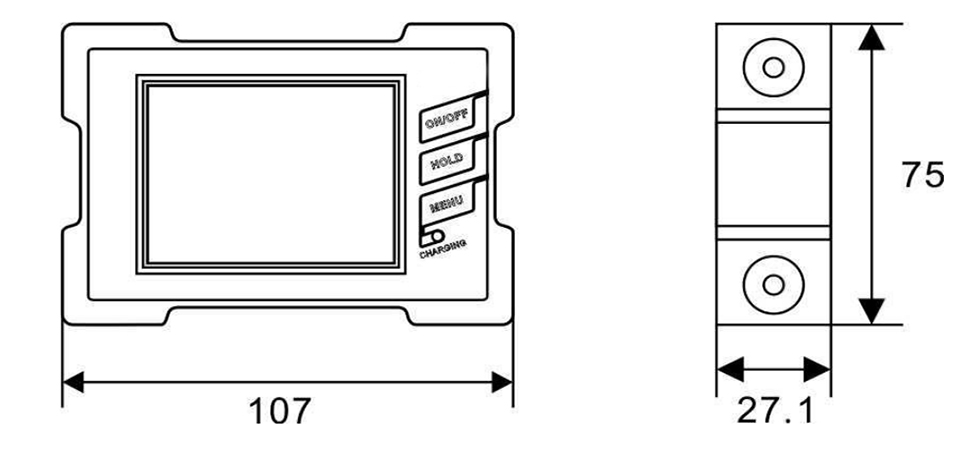

Size	L107mmW75mmH27.1mm
Certificate	CE, FCC, ROHS
Warranty	12 months
