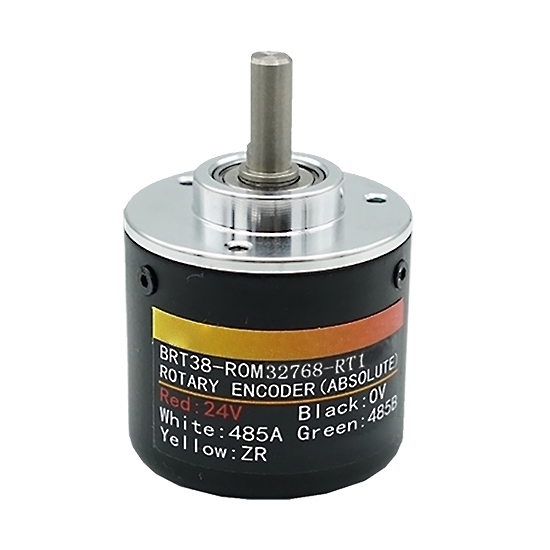

Factory price 12 bit rotary encoder with shaft diameter 6mm/ 8mm, blind hole 8mm are optional, high accuracy absolute rotary encoder with 100mA working current, working voltage 5V/ 24V. The multiturn absolute encoder is used in a wide range of applications that require monitoring or control, or both of mechanical systems, including industrial controls, robotics, photographic lenses.

Specification

Dimension (mm)

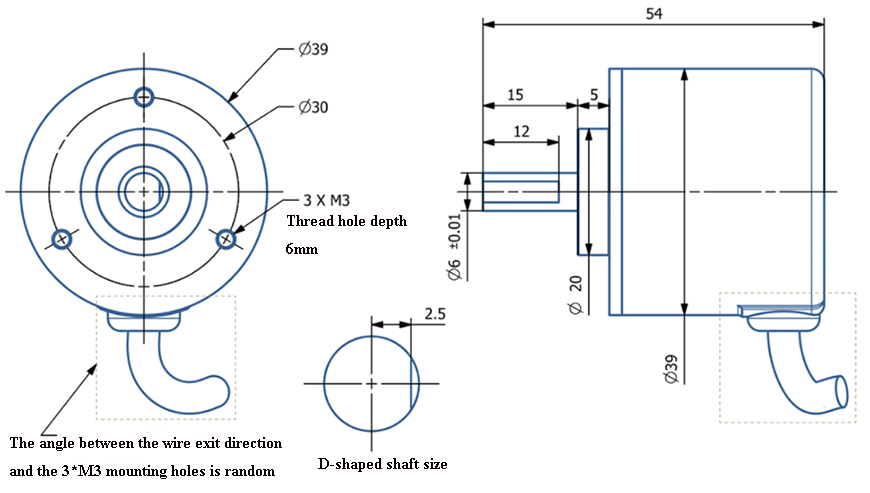

Shaft diameter 6mm

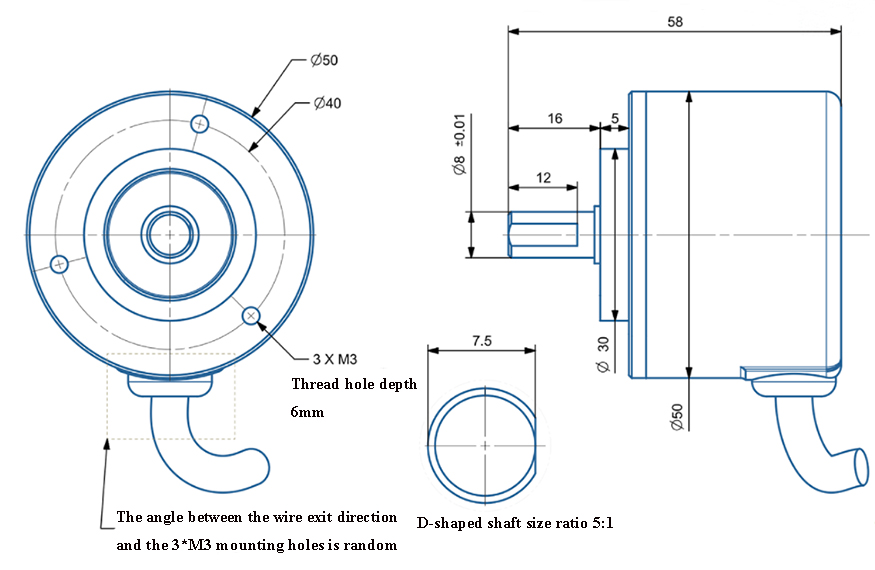

Shaft diameter 8mm

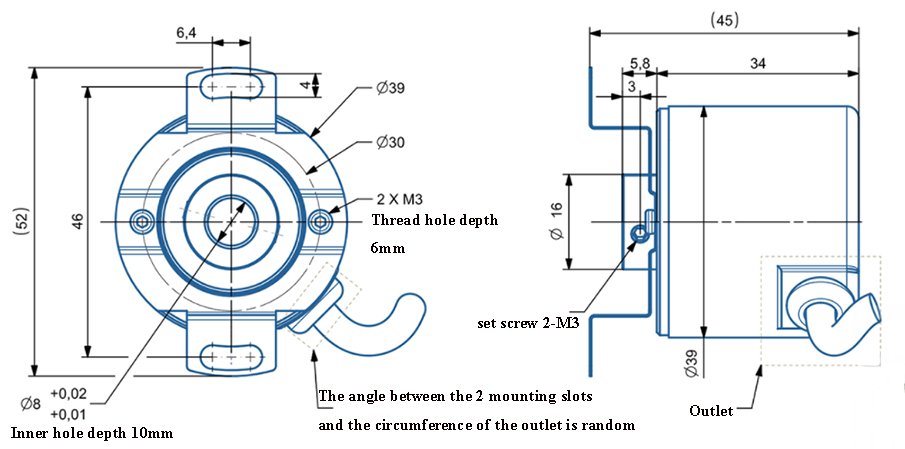

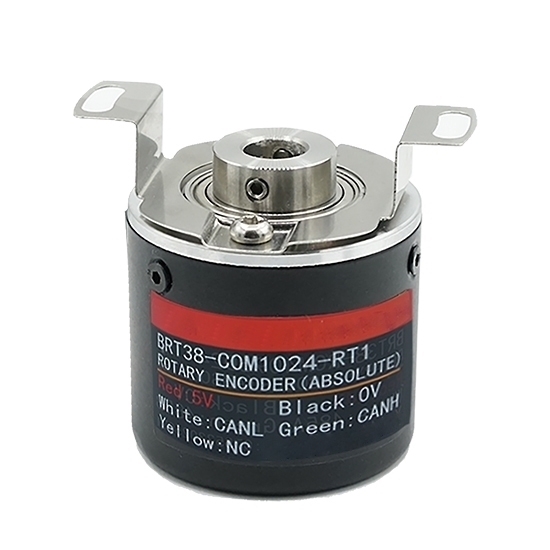

Blind hole 8mm

Tips: Principle of Absolute Rotary Encoder.

There are many optical channel engraving lines on the absolute encoder optical disc, and each engraving line is arranged with 2 lines, 4 lines, 8 lines and 16 lines in turn. , dark, obtain a set of unique binary codes (Gray codes) from the zeroth power of 2 to the n-1th power of 2. The absolute encoder is coded by the mechanical position. It does not need to be memorized, it does not need to find a reference point, and it does not need to count all the time. When you need to know the position, you can read its position. Determined by its location, it is not affected by power outages and disturbances. Absolute encoders have ranges and are suitable for use on some special machine tools.
