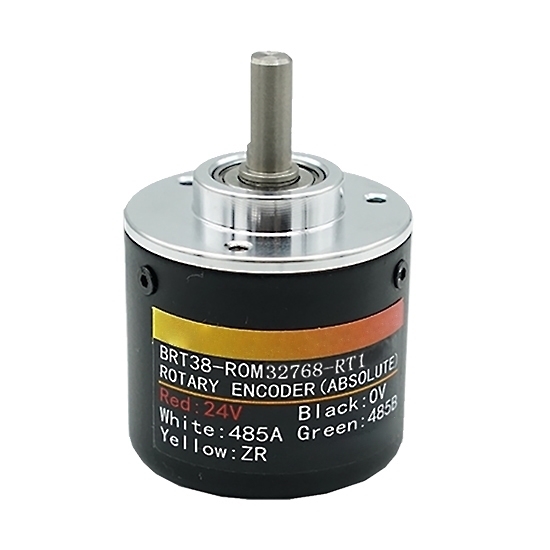

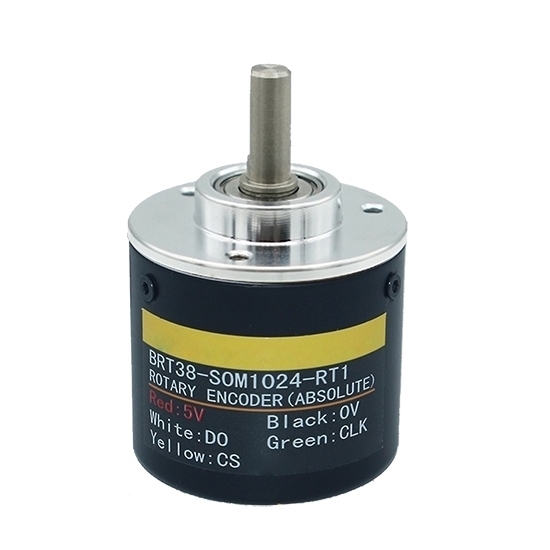

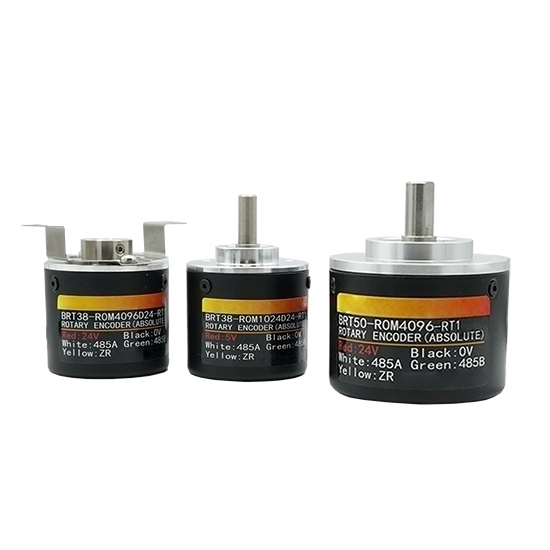

Good price absolute rotary encoder with natural binary code encoded output, working voltage 5V/ 24V are available, single turn absolute encoder with 50mA/ 100mA working current. 12 position rotary encoder is used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls

Specification

Dimension (mm)

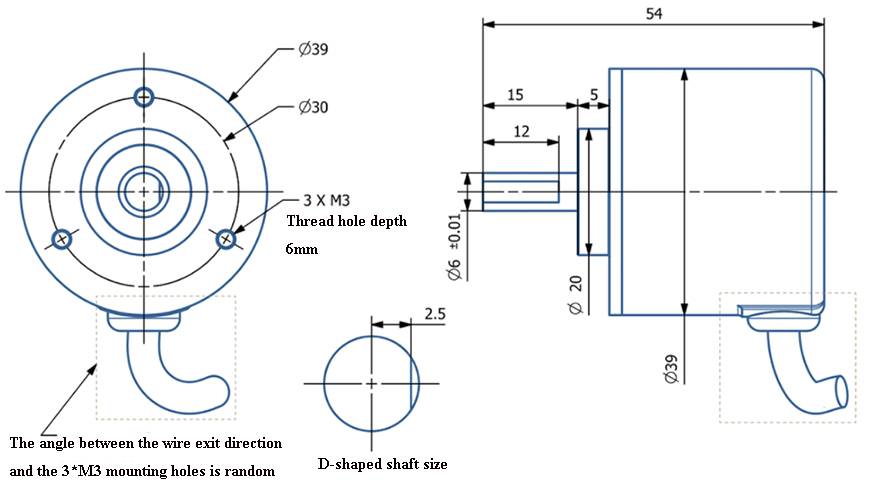

Shaft diameter 6mm, IP54

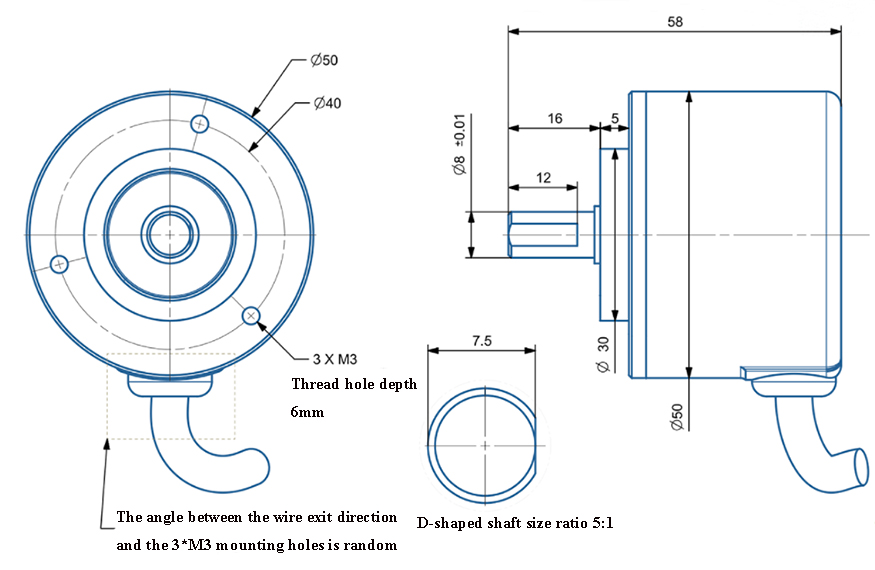

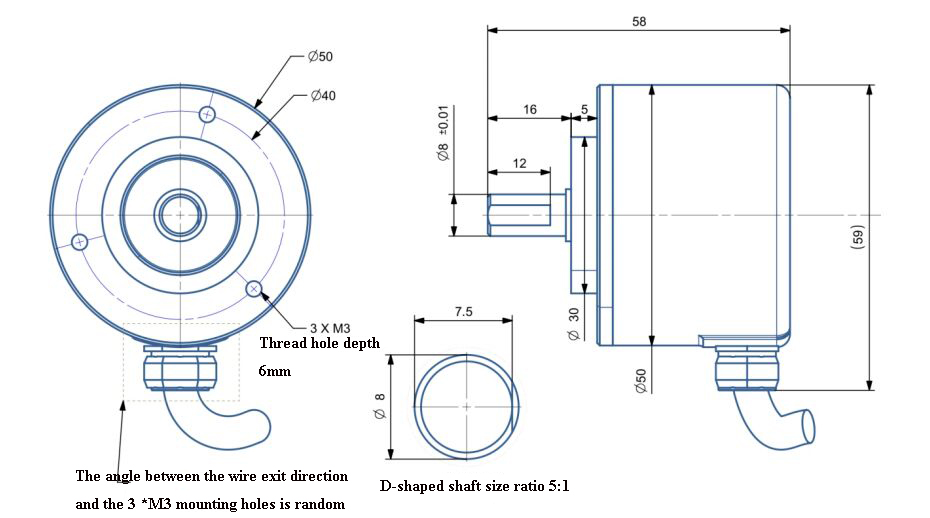

Shaft diameter 8mm, IP54

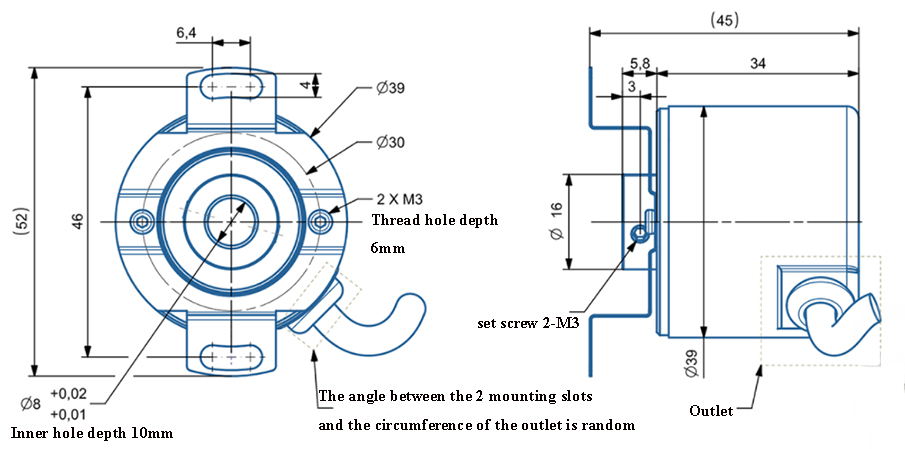

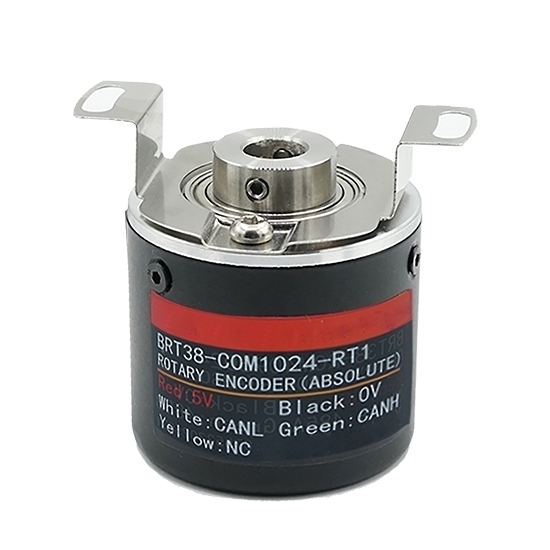

Blind hole 8mm, IP54

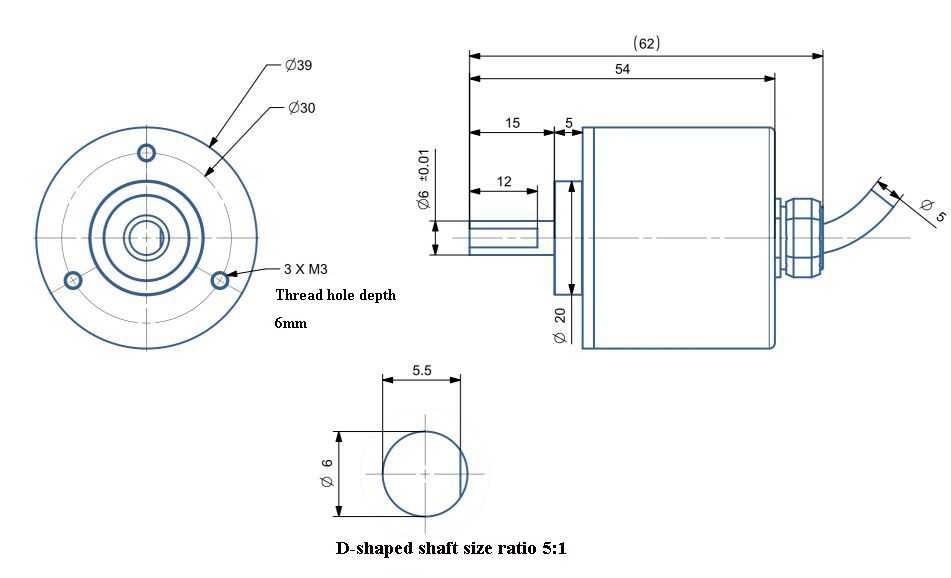

Shaft 6mm, IP67

Shaft 8mm, IP67

Tips: Precautions for Installing and Using Rotary Encoder.

1. The encoder is a precision instrument. Please handle it with care and use it carefully, especially for the encoder shaft, please do not knock, hit or pull hard. Flexible connectors or elastic supports should be used for the connection between the encoder and the machine, and the rigid damage caused by the non-concentricity of the rigid connection should be avoided.
2. Although the encoder housing is waterproof (IP54), the protection level of the shaft is IP65. Avoid installing the shaft upward or immersing in water, otherwise use a waterproof cover or other measures.
