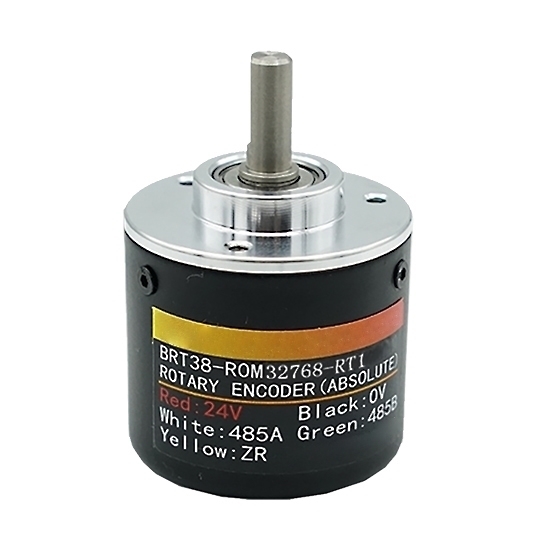

Economical price absolute rotary encoder has RS485/ CAN two communication interfaces for selection, single turn absolute encoder with 50mA/ 100mA working current. 14 position rotary encoder offers high quality, high resolution and optional installation advantages.

Specification

Dimension (mm)

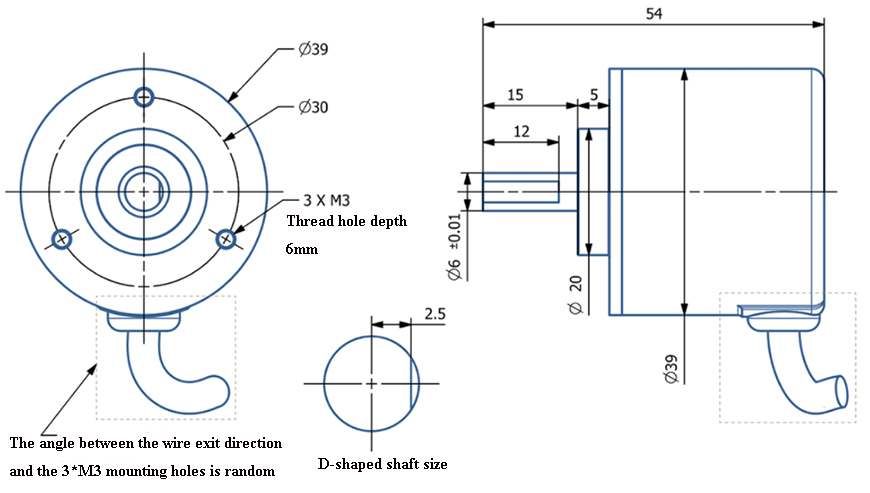

Shaft diameter 6mm, IP54

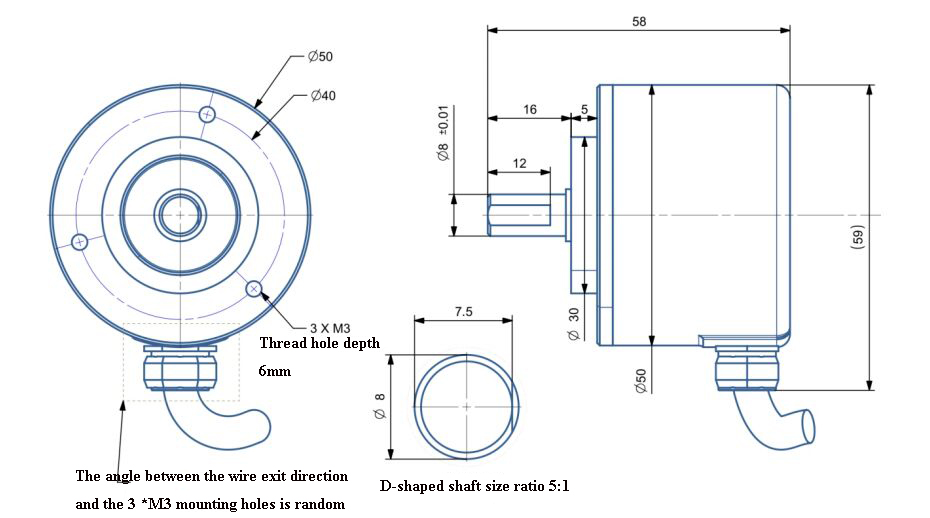

Shaft diameter 8mm, IP54

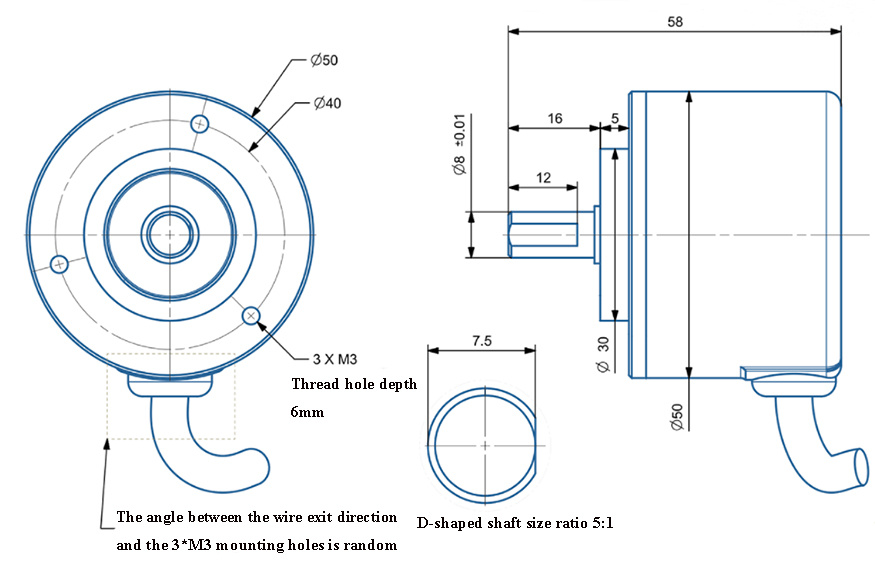

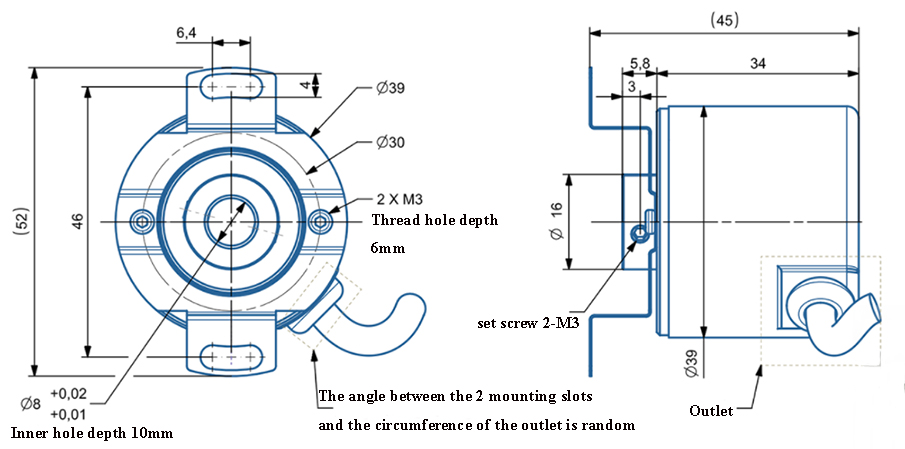

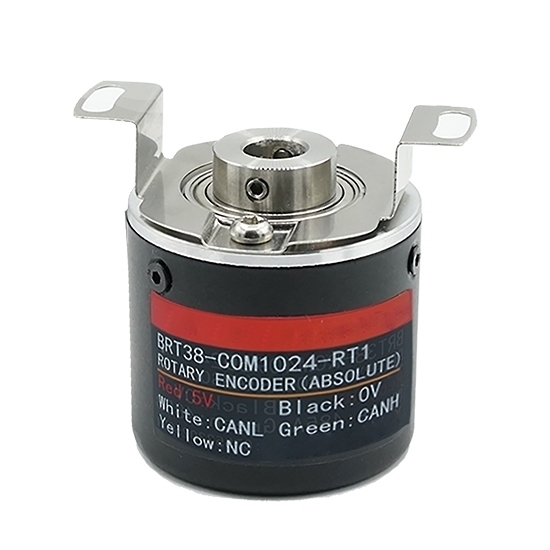

Blind hole 8mm, IP54

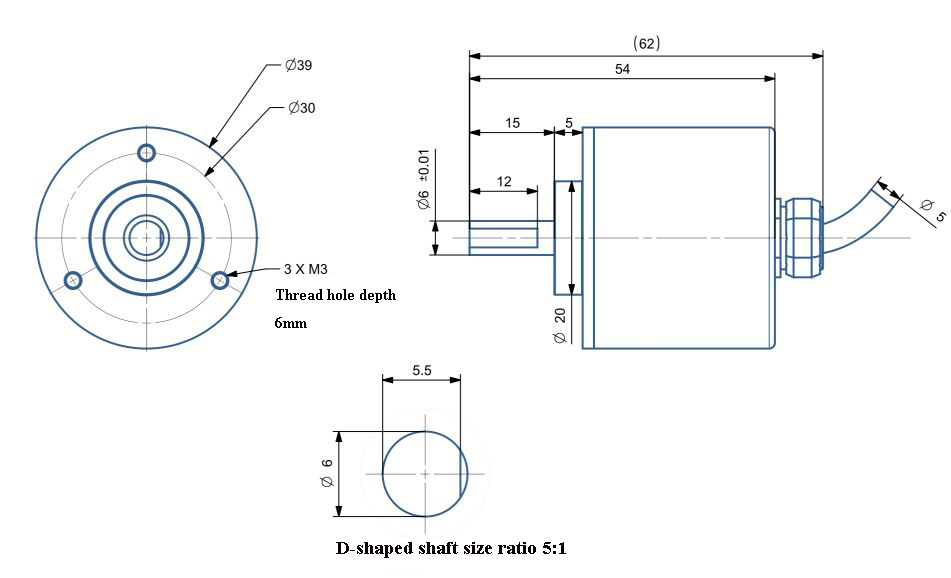

Shaft 6mm, IP67

Shaft 8mm, IP67

Tips: Precautions for Installing and Using Rotary Encoder.

1. Although the encoder itself will not lose the number of turns in the interference environment, it will cause interference to the data in the transmission process, so when there is a motor in the system or a strong electromagnetic interference environment, the encoder power supply should use an isolated power supply and external extension. It is best to use double-shielded cables and other measures for the communication line.
2. The outer shell of the encoder shell and shielded cable should be well grounded to prevent damage to the encoder circuit due to lightning strikes or high-voltage static electricity!
3. Except for the above zero-setting (yellow wire) allows grounding, any other signal wires of the encoder are forbidden to be short-circuited with each other. After power-on, avoid accidentally touching the signal wires, otherwise it may cause permanent damage to the
circuit!
