Home > Sensors > Signal Isolator

Send Inquiry

Signal Isolator 4-20mA with USB, LCD Display, RS485

$111.29

Signal Isolator can support DC current/DC voltage/RTD sensor/thermocouple input signals, such as 4-20mA, 0-20mA, 0-10mA, 0-5V

SKU: CHN-SIGNI-506E

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

This SKU CHN-SIGNI-506E is out of stock.
We recommend you another signal isolator CHN-SIGNI-602S, which has up to 2 input channels & 4 output channels, types of signal 4-20mA, 0-10mA, 0-20mA, 0-5V, 1-5V and 0-10V.

Signal isolator can convert 4-20mA/0-20mA/0-10mA/0-5V/0-10V/1-5V signal to standard signal or other customized signal.

Specification:

Model	CHN-SINIR-506E
Shipping weight	0.5kg
Dimension	10918.5116.5mm
Input signal *	4-20mA, 0-20mA, 0-10mA, (4-20mA)^0.5, (0-10mA)^0.5, 0-5V, 0-10V, 1-5V, ±5V, (0-5V)^0.5, (1-5V)^0.5
Input impedance	Current output: ≤250Ω, voltage output: ≥500kΩ
Output signal *	4-20mA, 0-20mA, 1-10mA, 0-5V, 1-5V
Output load	Current RL≤500Ω, voltage RL≥250kΩ
Relay alarm output	Capacity: DC 30V/2A, AC 125V/0.6A
Communication *	MODBUS-RTU protocol, RS485
Power supply	DC 24V±10%, AC 100-265V/50-60Hz
Accuracy	0.2%FS±1 digit
Number of input & output channels	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
Power dissipation	DC 24V 1 output channel: ≤1.7W, DC 24V 2 output channels: ≤2.2W, AC 100-265V 1 output channel: ≤2.5W, AC 100-265V 2 output channels: ≤3W
Temperature drift	50ppm/℃
Work environment	Temperature: 0~50℃, humidity: ≤85%RH, far away from caustic gas
Installation	35mm DIN rail

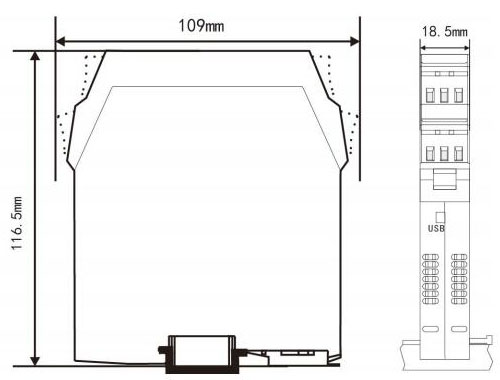

Dimensional drawing:

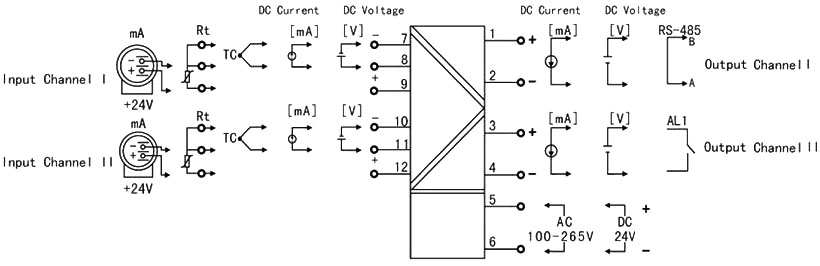

Wiring diagram:

Tips: Functions of signal isolator

Isolate input signal and output signal
On the one hand, the signal isolator can solve the problem of different ground reference points generated when the ground loop is connected with the equipment. On the other hand, it can effectively remove the radio frequency and electromagnetic interference that circuits may suffer during transmission.
Signal isolation and distribution
Two output signals can be both identical, and different from each other. Two receiving equipments are completely isolated. Any equipment fails, it will not affect the entire loop and the other equipment.
Avoid power conflict
The signal access terminal of the receiving device is equipped with a 24V power supply, however, a 4-wire transmitter is used on site and the output signal is an active signal. When connecting an output loop powered signal isolator, it is powered by the receiving device through a signal output line. Moreover, the active signal of the 4-wire transmitter will be output to the receiving device after isolation, thus it not only avoids the power conflict, but also isolates the signal.
Provide power supply and isolate
The 4-wire external powered signal isolator can provide power supply to a 2-wire transmitter, thus it avoids providing additional power supply to the transmitter, and also provides the signal isolation function.
Signal conversion and isolation
The isolator has the signal conversion function and can accept DC standard (or non standard) signal, thermocouple signal, RTD signal, potentiometer signal or even AC signal. Moreover, it can also output various signals that the user needs.
Smart signal isolator
In addition to the excellent performance of conventional signal isolator, a CPU control unit can also be added in a signal isolator to realize the field programmable function and RS485 communication function.
