Model	CHN-SIGNI-503H
Weight	130g

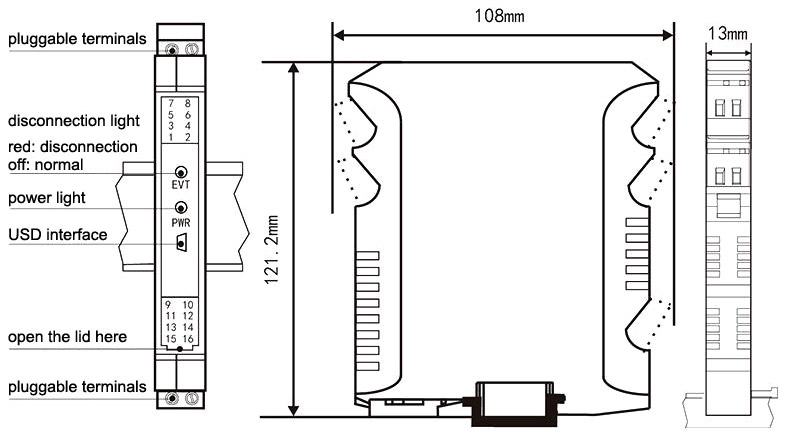

Dimension	10813121.2mm
Input signal *	K, B, S, E, Pt100
Output signal *	4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V
Load impedance	RL≤400Ω (current output); RL≥250KΩ (voltage output)

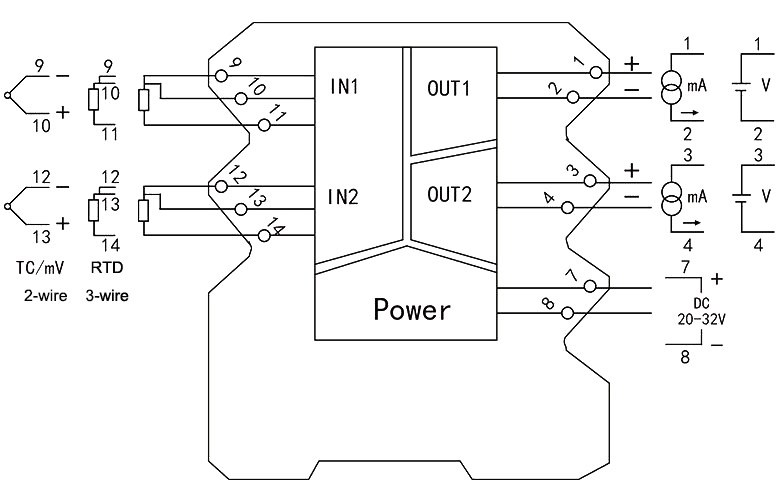

Number of input & output channels *	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
Power supply	DC 20-30V
Power dissipation	1 output channel: ≤1W, 2 output channels: ≤1.4W
Transfer accuracy	0.2%FS±1 byte
Minimum resolution	0.1℃
Temperature range of cold junction compensation	-10~+50℃
Accuracy of cold junction compensation	±1℃
Response time	≤50ms
Insulation resistance	≥100MΩ at DC 500V
Dielectric strength	1500Vrms (1min, no-spark)
Temperature drift	0.0075%FS/℃
Working temperature	-10~+50℃
Relative humidity	25%~85%RH
Storage temperature	-10~+60℃
Electro magnetic compatibility	IEC 61326-1
Installation	35mm DIN rail
