Model	CHN-SIGNI-602S
Shipping weight	0.5kg

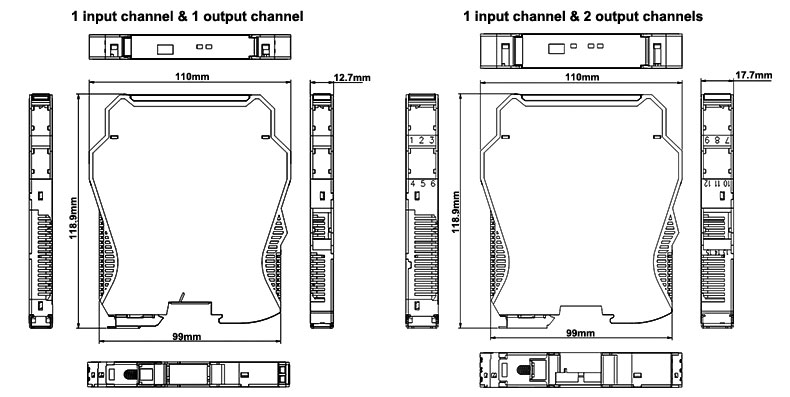

Dimension	12.7110118.9mm, 17.7110118.9mm
Type of signal *	4-20mA, 0-10mA, 0-20mA, 0-5V, 1-5V, 0-10V
Power supply	DC 24V, DC 18-32V
Accuracy	0.1%FS

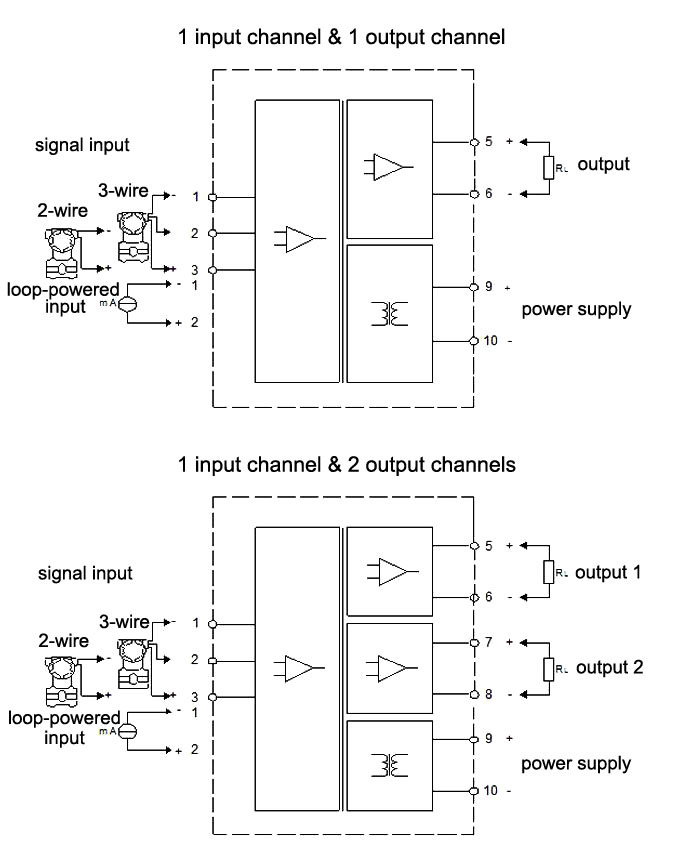

Number of input & output channels *	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels, 1 input channel & 3 output channels, 1 input channel & 4 output channels
Input impedance	100Ω
Response time	≤0.5s
Installation	35mm DIN rail
