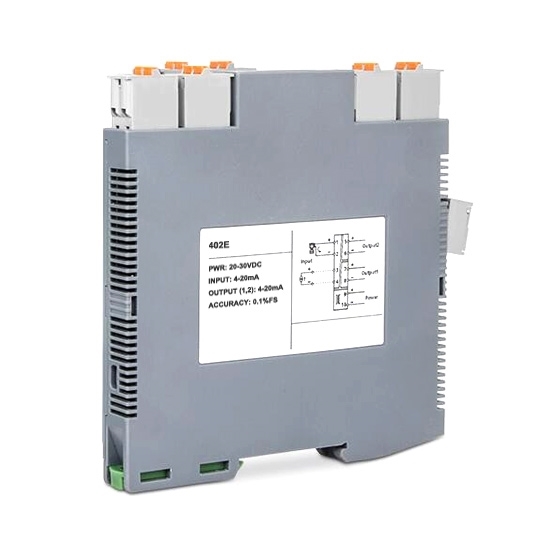

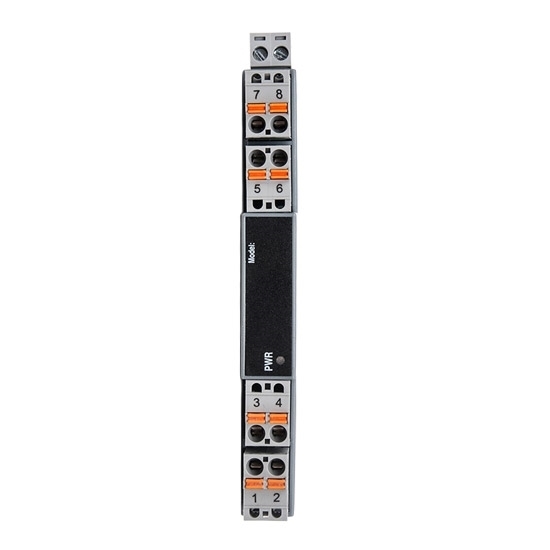

Model	CHN-SIGNI-402E
Weight	120g

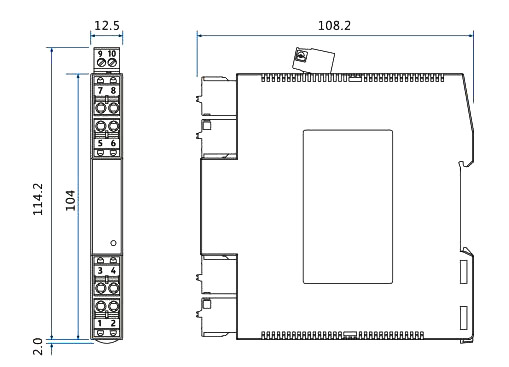

Dimension	108.212.5116.2mm
Input signal *	4-20mA, 0-20mA, K, B, S, E, Pt100
Output signal *	4-20mA, 0-20mA

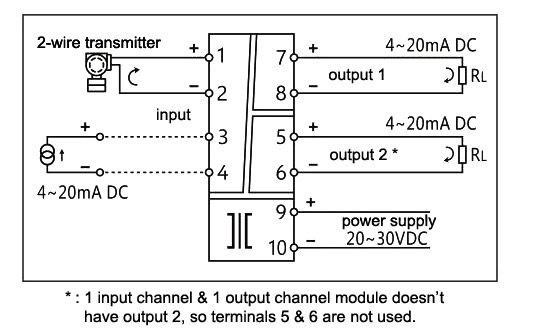

Number of input & output channels *	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels
Power supply	DC 24V, DC 20-30V
Accuracy	0.1%FS
Input impedance	25Ω
Load impedance (current output)	≤350Ω
Response time	≤50ms
Insulation resistance	≥100MΩ at DC 500V
Maximum withstand voltage	1500V (AC virtual value)/1min among input, output and power supply
Temperature drift	0.05%FS/10℃
Protection class	IP20
Installation	35mm DIN rail
