Home > Sensors > Inclinometer Sensor

Send Inquiry

Output 0-5V Inclinometer Sensor, ±10°~±90°

$949.85

Buy industrial inclinometer sensor with competitive price. Output 0-5V voltage, measuring range ±10°/±30°

SKU: CHN-IMS-610620

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Full- temperature compensation 1 axis/2 axis inclinometer sensor for sale, output signal 0-5V. The tilt sensor's full temperature zero temperature drift can be controlled within ±0.008°/℃, and the measured accuracy of the small range at room temperature can reach 0.003°.

Features

Full-temperature compensation single/dual axis inclinometer sensor, analog voltage output. It uses a high-precision 24 bit A/D differential converter inside to ensure the linearity of the output voltage signal. Users don't need to make linearity corrections by themselves, it can be used after installation, which is stable and reliable.
Because the system integrates a high-resolution temperature sensor, and cooperates with the MCU central processing system for secondary temperature compensation, the full temperature zero temperature drift can be controlled at ±0.008°/℃, and the measured accuracy of the small range at room temperature can reach 0.003°.
The features of non-contact installation make the inclinometer sensor have good system integration. Just fix the tilt sensor on the surface of the object to be measured with screws, and the inclination angle of the object can be automatically calculated. Simple operation and convenient installation.
The inclinometer sensor adopts MEMS technology, small size, strong ability to resist external electromagnetic interference, strong ability to withstand shock and vibration, and it is widely used in the field of industrial measurement.

Technical Specification

Model	CHN-ACA610/ACA620				Condition
Measuring Axis	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	-
Measuring Range*	±10°	±30°	±60°	±90°	-
Zero Output	2.5V	2.5V	2.5V	2.5V	0° output
Resolution	0.001°	0.001°	0.001°	0.001°	-
Measuring Accuracy	0.003°	0.01°	0.02°	0.03°	@25℃
Long Term Stability	0.01°	0.02°	0.03°	0.04°	-
Zero Temperature Coefficient	±0.0008°/℃	±0.0008°/℃	±0.0008°/℃	±0.0008°/℃	-40~85℃
Sensitivity Temperature Coefficient	≤50 ppm/℃	≤50 ppm/℃	≤50 ppm/℃	≤100 ppm/℃	-40~85℃
Power On Time	0.5s	0.5s	0.5s	0.5s	-
Response Time	0.02s	0.02s	0.02s	0.02s	-
Response Frequency	1~20Hz	1~20Hz	1~20Hz	1~20Hz	-
Output Signal	0-5V
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3 Times/Axis (half sinusoid))
Anti-Vibration	10grms, 10～1000Hz
Protection Grade	IP67
High Seismic Performance	＞2000g
Cables	Standard 2m length, wearproof, wide temperature, shielded cables 5P*5.7mm, aviation connector
Dimension	924836mm
Weight	235g (without cable)

*Note: This Technical data only list ±10°, ±30°, ±60°, ±90° series for reference, other measuring range please refer to the adjacent specifications.

Electrical Specification

Item	Min	Standard	Max	Condition
Power Supply	9V	12V, 24V	36V	Standard
Working Current	-	40mA	-	-
Output Load	10kΩ	-	-	Resistive
Output Load	-	-	20nF	Capacitive
Working Temperature	-40℃	-	+85℃	-
Store Temperature	-55℃	-	+100℃	-

0-5V Inclinometer Sensor Electrical Wiring

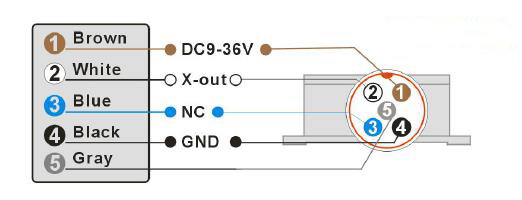

Single Axis Wiring Definition

Line Color Function	BROWN	WHITE	BLUE	BLACK	GRAY
Line Color Function	DC 9-36V Power positive	Out X X axis output voltage	NC Unused	GND Power negative	FACTORY Factory use

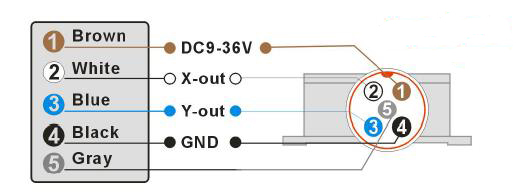

Dual Axis Wiring Definition

Line Color Function	BROWN	WHITE	BLUE	BLACK	GRAY
Line Color Function	DC 9-36V Power positive	Out X X axis output voltage	Out Y Y axis output voltage	GND Power negative	FACTORY Factory use

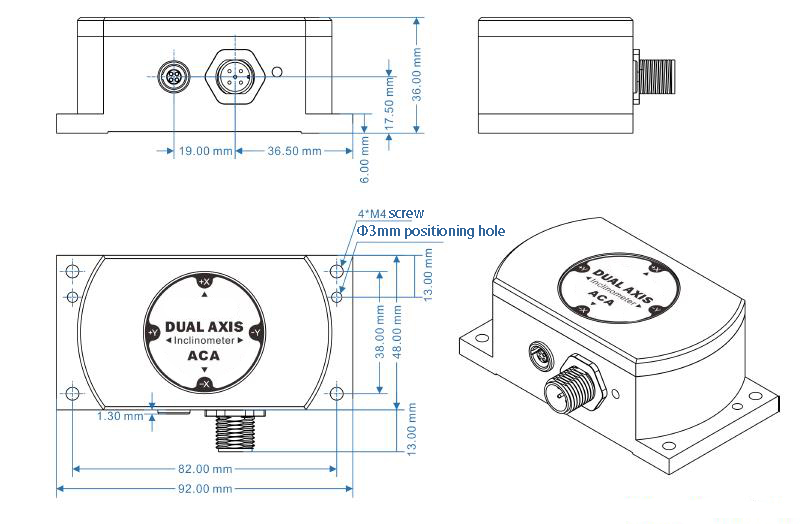

0-5V Inclinometer Sensor Dimensions Diagram

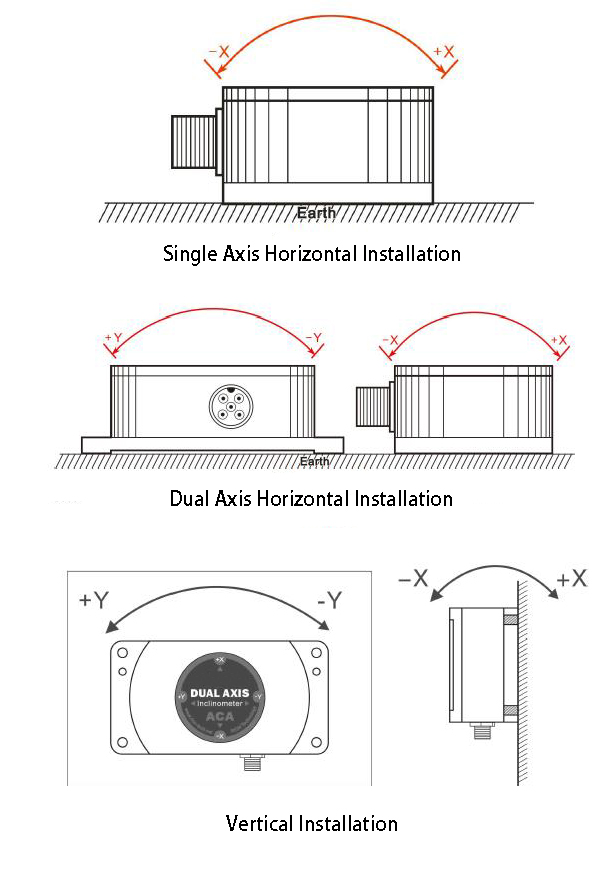

Inclinometer Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

Tips: Factors that affect actual measurement accuracy of inclinometer sensor.

There is a certain deviation between the sensitive axis of inclinometer sensor and the housing. This deviation is a spatial position, not just a position on a plane coordinate system.
When installing the inclinometer sensor, the actual tilt axis will not coincide with or parallel to the edge of the sensor's sensitive axis/housing, and it is difficult to achieve such a precise installation.
The actual tilt axis of object is difficult to find accurately in the industrial field. Even if it is currently found, the actual tilt axis will continue to change with the movement due to the error of mechanical equipment.
