Home > Sensors > Inclinometer Sensor

Send Inquiry

Output CANopen Inclinometer Sensor, ±10°~±90°

$253.85

Affordable price inclinometer sensor for sale. Output signal CANopen, single axis and dual axis for selection, optional measu

SKU: CHN-IMS-116126

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

The 1-axis/2-axis inclinometer sensor outputs CANopen signal, maximum measuring angle can select from ±10°~±90°. The tilt angle sensor has high seismic performance (＞2000g) and direct lead interface, which is the best instrument for industrial use.

Features

The single axis/dual axis inclinometer sensor is specially designed for applications of industrial field control. It has reliable and stable performance and good scalability, suitable for various harsh industrial control environments.
Inclinometer tilt sensors use industrial standard isolated CAN transceiver, built-in high-precision 16 bit A/D differential converter, which can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through a 5-order filtering algorithm.
Due to the built-in high-precision digital temperature sensor, the inclinometer sensor can correct the temperature drift according to the temperature value change, ensuring the high repeatability of the tilt sensor, in low and high temperature environments.
The output response frequency standard of the inclinometer sensor can reach 18Hz. If you need a higher response frequency, you can contact us for customization.

Technical Specification

Model	CHN-SCA116/SCA126-CANopen				Condition
Measuring Axis	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	-
Measuring Range*	±10°	±30°	±60°	±90°	-
Resolution	0.01°	0.01°	0.02°	0.03°	-
Absolute Accuracy	0.05°	0.05°	0.05°	0.05°	@25℃
Long Term Stability	0.05°	0.05°	0.05°	0.05°	-
Zero Temperature Coefficient	±0.006°/℃	±0.006°/℃	±0.006°/℃	±0.006°/℃	-40~85℃
Sensitivity Temperature Coefficient	≤100 ppm/℃	≤100 ppm/℃	≤100 ppm/℃	≤100 ppm/℃	-40~85℃
Power On Time	0.5s	0.5s	0.5s	0.5s	-
Response Time	0.02s	0.02s	0.02s	0.02s	-
Response Frequency	5Hz, 15Hz, 35Hz, 50Hz for set
Output Signal	CANopen
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3 Times/Axis (half sinusoid))
Anti-Vibration	10grms, 10～1000Hz
Protection Grade	IP67
High Seismic Performance	＞2000g
Cables	Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm²
Dimension	4635.413.6mm
Weight	120g (without cable)

*Note: This Technical data only list ±10°, ±30°, ±60°, ±90° series for reference, other measuring range please refer to the adjacent specifications.

Electrical Specification

Item	Min	Standard	Max	Condition
Power Supply	9V	12V, 24V	36V	Standard
Power Supply	-	5V	-	Customizable
Working Current	-	40mA	-	No-load
Working Temperature	-40℃	-	+85℃	-
Store Temperature	-55℃	-	+125℃	-

CANopen Inclinometer Sensor Electrical Wiring

Line Color Function	BLACK	WHITE	GREEN	RED
Line Color Function	GND Power negative	CAN_L	CAN_H	Vcc 9~36V Power positive

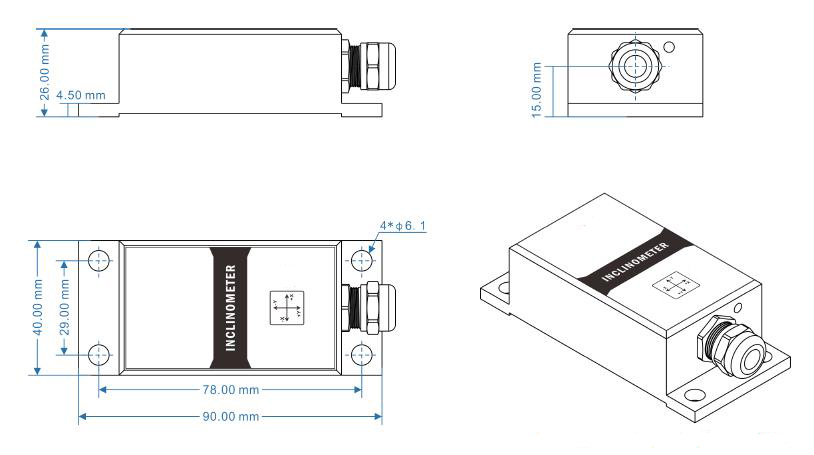

CANopen Inclinometer Sensor Dimensions Diagram

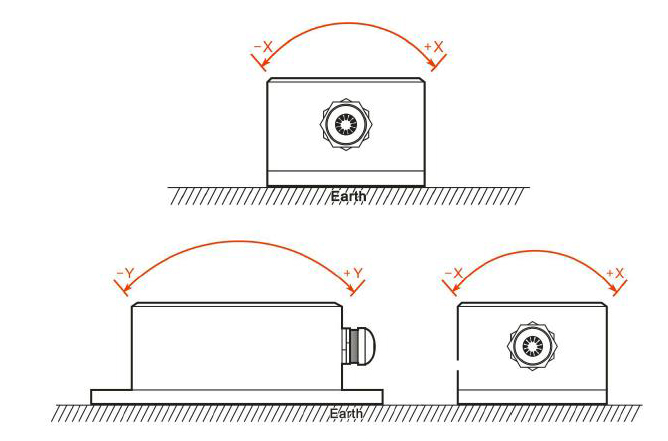

Inclinometer Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

Tips: How to install inclinometer sensor correctly?

The mounting surface of inclinometer sensor and the surface to be measured must be tight, flat and stable. If the installing surface is uneven, it is easy to cause errors in the angle measured by the sensor.
The axis of inclinometer sensor and the axis to be measured must be parallel. Try not to have an angle between the two axes.
