Digital Output Gyroscope Sensor, ±180°

Lower price angular velocity sensor with supply voltage AC9-36V, DC5V, azimuth accuracy <0.2°/ m, nonlinear 0.3% of FS, resolution 0.02°. It has advantages of high performance, waterproof, light wight and long service life.

Specification

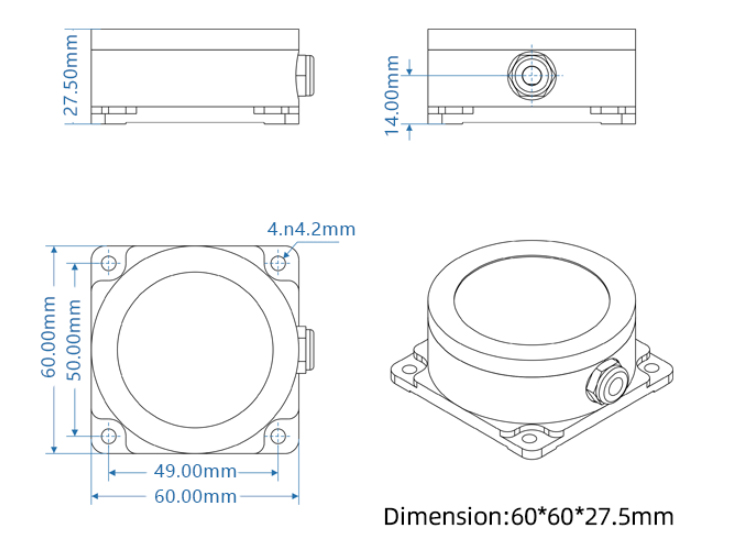

Dimension (unit=mm)

Tips: Working Principle of Gyroscope Sensor.

The direction pointed by the axis of rotation of a rotating object will not change when it is not affected by external forces. According to this principle, use it to maintain direction. Then use a variety of methods to read the direction indicated by the axis, and automatically transmit the data signal to the control system. Modern gyroscope is an instrument that can accurately determine the position of a moving object. It is an inertial navigation instrument widely used in modern aviation, navigation, aerospace and defense industries. The main part of the traditional inertial gyroscope is a mechanical gyroscope, and the mechanical gyroscope has high requirements on the process structure. The fiber optic gyroscope has a compact structure, high sensitivity and reliable operation. Fiber optic gyroscopes have completely replaced mechanical traditional gyroscopes in many fields and become a key component in modern navigation instruments.
