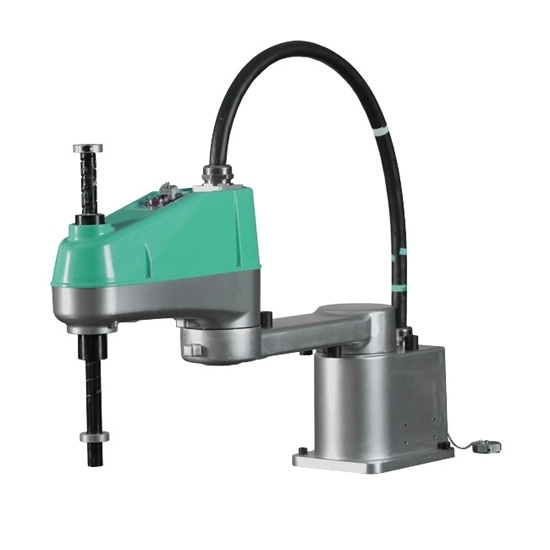

4 Axis SCARA Robot, 550mm Arm Length, 1kg Load

550mm Arm Length, 1kg Load 4 Axis SCARA Robot features fast motion performance, light weight and compact mounting conditions. The small and refined size is suitable for the automation of various processes, and its advantages are particularly obvious in a limited production space.

Specifications

Note:

*Using ATO SCARA robots require more robot programming knowledge and automation equipment experience.
*You can install it yourself after buying our robot.
*If you have not used similar equipment before and need more buying guides, please feel free to contact us.

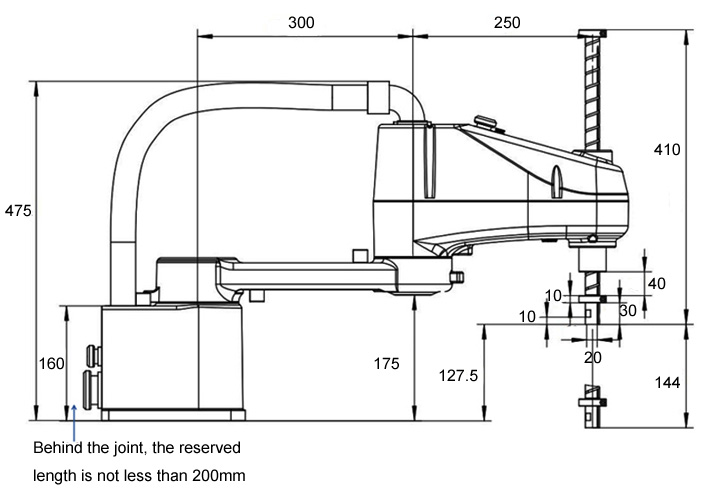

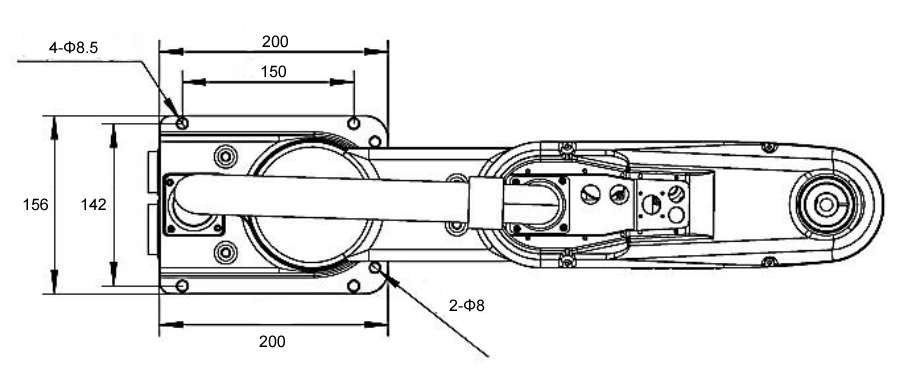

Dimension (Unit: mm)

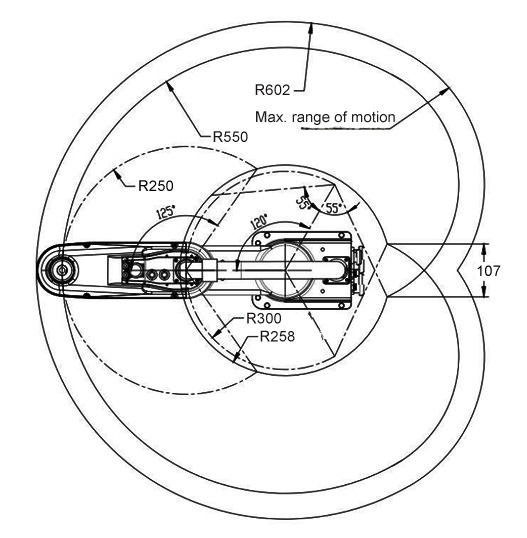

Working Range (Unit: mm)

Tips:

The SCARA robot is a high-speed running equipment, and its maximum turning radius will change due to the size of the jig installed at the end or the size of the gripping workpiece. Before running the machine, make sure that there are no obstacles in the operating range of the robot arm to avoid collision and damage to the machine. When the machine is running, the operator should always pay attention to the movement range of the robot arm to avoid injury.

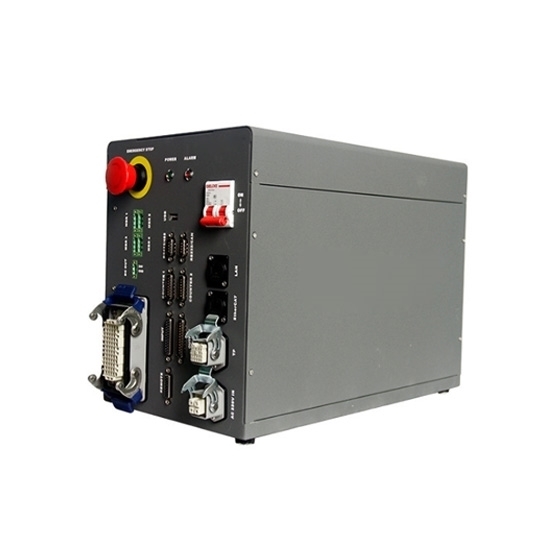

When the robot arm moves, the control system will generate a certain temperature. The control box is equipped with a cooling fan. The operator needs to pay attention to whether the fan is running normally and the cooling holes of the control box are not blocked. Avoid alarm and shutdown when the temperature in the control box is too high.
