Home > Industrial Equipment > SCARA Robot

Send Inquiry

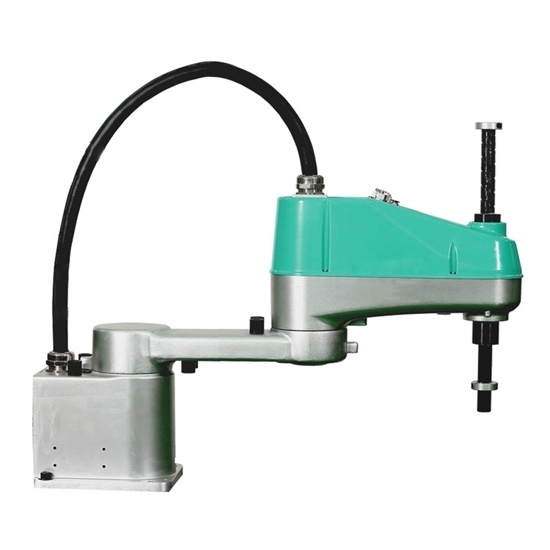

4 Axis SCARA Robot, 450mm Arm Length, 2kg Load

$7425.38

High performance 4 axis SCARA robot with arm length of 450mm, 2kg rated load capacity and maximum payload up to 5kg, combine

SKU: CHN-SCARA-450

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

450mm Arm Length, 2kg Load, 4 Axis SCARA Robot runs from single phase AC 220±10%, 50/60Hz power system, good repeatability for precision assembly, compact structure and low cost, high payload for using tools for screw-driving and adhesive application.

Specifications

Model		CHN-TS5-450
Number of Axes		4
Arm Length	Full length	450mm
	First arm	200mm
	Second arm	250mm
Load	Rated load	2kg
	Max. load	5kg
	Axis 4 moment of inertia	0.015kg.m2
Working Envelope	Axis 1	±125°
	Axis 2	±142°
	Axis 3	185mm
	Axis 4	±360°
Repeated Positioning Accuracy	X-Y	±0.05mm
	Axis 3	±0.05mm
	Axis 4	±0.05mm
Max. Speed	Axis 1	≤375°/sec
	Axis 2	≤520°/sec
	Axis 3	≤833°/sec
	Axis 4	≤1500°/sec
Environmental Requirements	Temperature	5℃-40℃
	Humidity	10%-80% (no condensation)
Arm Body I/O Line		0.2*5 core
Arm Body Tracheal Interface		Φ6*2
Arm Weight (excluding electric control box, extension cord)		15kg
Power Supply		Single phase AC 220±10%, 50/60Hz
Protection Level		IP21
Installation Method		Vertical mount

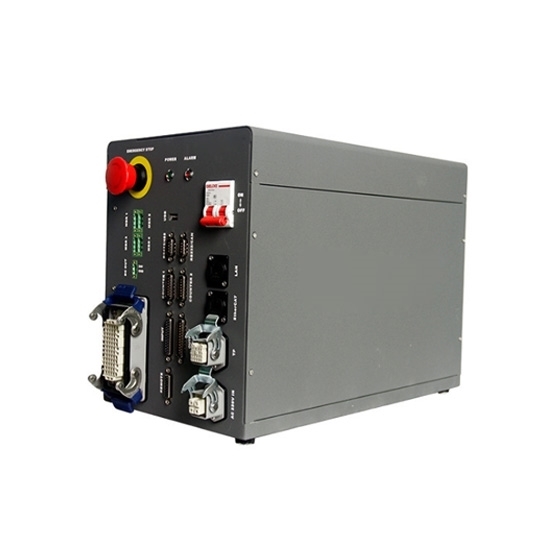

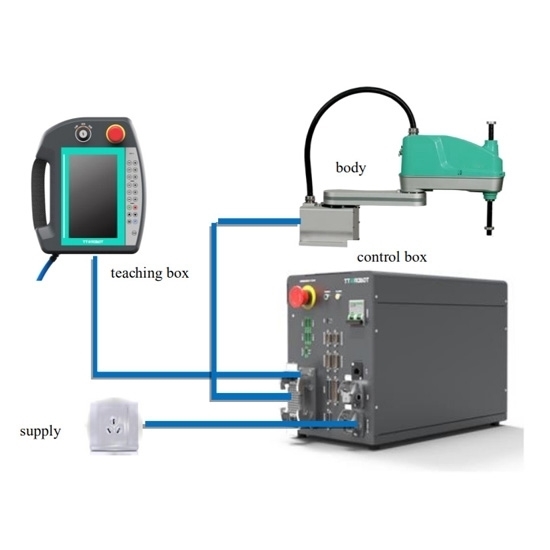

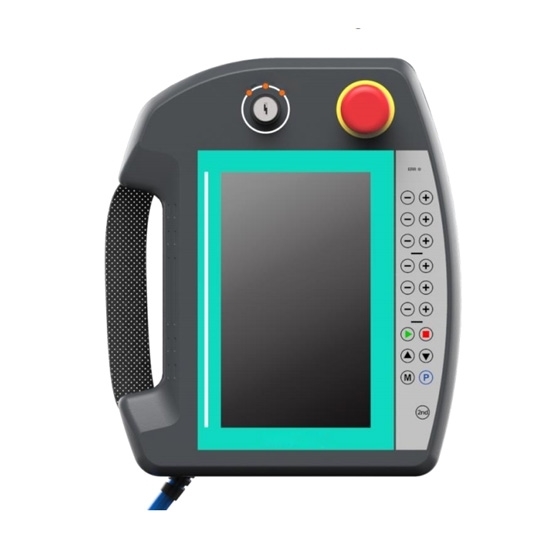

Package Included		1 x SCARA robot, 1 x control box, 1 x teaching box (total weight: 45kg)

Note:

*Using ATO SCARA robots require more robot programming knowledge and automation equipment experience.
*You can install it yourself after buying our robot.
*If you have not used similar equipment before and need more buying guides, please feel free to contact us.

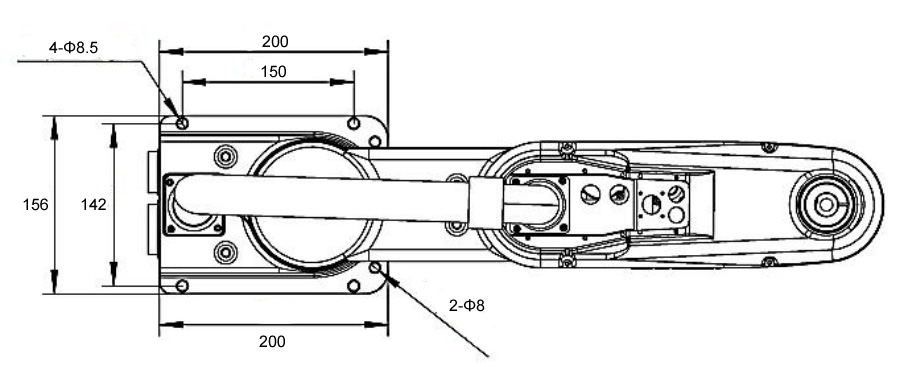

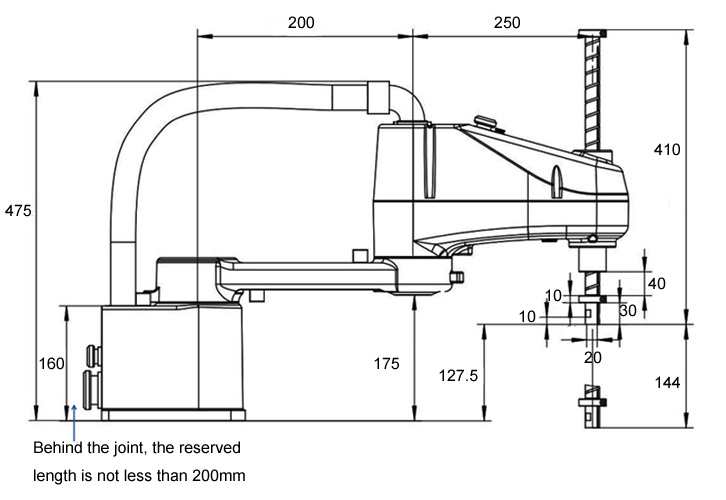

Dimension (Unit: mm)

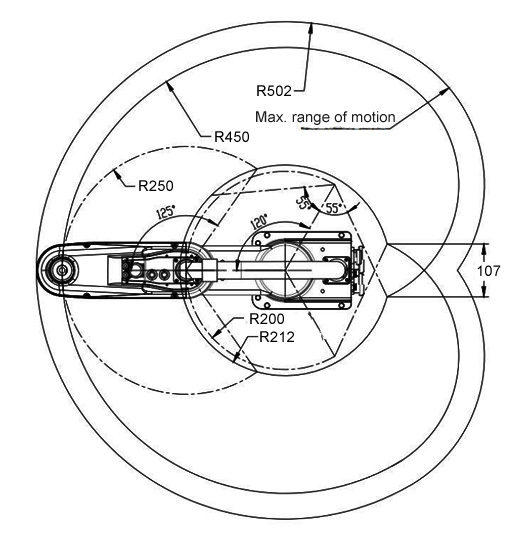

Working Range (Unit: mm)

Tips:

When teaching within the range of SCARA robot action, please observe the following items.

Keep looking at the SCARA robot from the front.
Comply with operating procedures.
Considering the strain scheme of robot suddenly moving to its orientation.
Ensure that shelters are set up in case of emergencies.

Accidental entry into the range of motion of the robot or contact with the robot may lead to personal injury accidents. In addition, in case of abnormality, please press the emergency stop key immediately (the emergency stop key is located at the front door of the control cabinet and the right side of the teaching box).
