16 Port Managed Industrial Switch, 10/100M, Din Rail

$738.46

Din-rail 100M managed Ethernet switch with 16 10/100MT(x) auto-negotiation ports, VLAN/ Qos/ Port link aggregation /port mirr

SKU: CHN-ES-EN6216

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Fanless IP40 rated 16 ports Layer 2 managed industrial switchs, operating temperature -40 to 85° C to satisfy any special needs of industrial automation, outdoor applications and harsh weather conditions.

Specification

Model	CHN-EN6216
Software Performance
Redundancy Protocol	Support MW-Ring and the recovery time<20 ms. Support STP/RSTP
Multicast Routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and Maintenance	Support Console and Web management methods Support SNMP v1/v2c Support unified PC software management
Technical Specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch Properties
Priority Queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC Table	8k
Switch Bandwidth	3.2Gbps
Switch Delay	<5μs
Interface
10/100Base Ports	Port numbers: 16
	Connector: 9 fixed F(x) (Single/multi-mode or SC/FC/ST port available) or RJ45
	Baud rate: 100Base-FX (fiber port), 10/100/1000M for adaptive port
Console Port	RS232/RJ45
Terminal Block for Power Input	5.08mm terminal block
Terminal Block for Relay Alarm	5.08mm terminal block, 1A@24VDC
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
Multi-mode Fiber	10/100Base multi mode: 1310nm 2km
Single-mode Fiber	10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km
LED Indicator Lights
Front Panel LED	Port light: LINK/ACT, SPEED
	Running light: RUN
	Power LED: PWR1/PWR2
Power Requirements
Power Input	DC110~220V (DC110~370V range) or AC100~240V (AC85~264V range) DC12V/DC24V/DC48V available
Full-load Consumption	<8W
Overload Protection	support
Inversed Protection	support
Redundancy Protection	support
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail-mounted installation
Dimension	72mm x 144mm x 110mm
Weight	600g
Industry Standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8,Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6

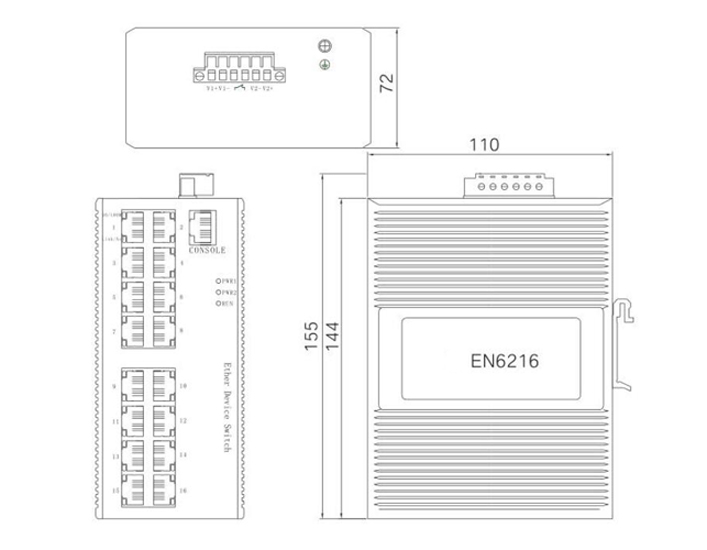

Dimensional Drawing (mm)

Tips: Industrial Ethernet switch troubleshooting
Common faults in industrial Ethernet switches are: fiber port breaks (ST port or SC port), LED lights are not lit, communication between devices is unstable, no response after the industrial switch is powered on and so on.
The fiber port is broken: Generally, the fiber is broken when the fiber is accidentally stepped on during the debugging of the industrial Ethernet switch, and occasionally it is found to be broken during the transportation process.
There is no response after the switch Ethernet port is connected to the device (the LED is not lit): Please confirm whether the connected device is powered. If it is a fiber port, please confirm whether the two optical ports of the interconnection match (100M%2F1000M, single mode %2F multimode), whether the fiber is good, whether the fiber matches the optical port (single mode %2F multimode), whether the fiber crosses connection. If you cannot solve the problem after eliminating the above reasons, please contact technical support.
Unstable communication between devices: Check if the rate and duplex mode of the twisted pair port of the industrial switch match with the device. At present, the twisted pair ports of the new device support adaptive mode (100M full duplex), but the twisted pair ports of some older devices may be 10M half duplex, 100M half duplex or 100M full duplex. Change the working mode of the corresponding port of the switch to be the same as the device.
The Ethernet port of the industrial switch is connected to the device and the LEDs are displayed normally, but cannot communicate with other devices: Check the VLAN settings of the industrial Ethernet switch.
No response after the industrial switch is powered up: Check that the input voltage matches the rated operating voltage of the switch. Is the wiring correct?
