10 Port Gigabit Managed Industrial Switch, Din Rail

$746.15

High speed 10-port Gigabit managed Ethernet switch, rugged din-rail mounting, a variety of port combinations to choose from,

SKU: CHN-ES-SCOM7210

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

High-performance Gigabit industrial Ethernet switch with 10 optional ports, support VLAN, multicast, QoS, MW-Ring and many other Layer 2 software features, user-friendly web console interface for easy configuration.

Specification

Model	CHN-SCOM7210
Software Performance
Redundancy Protocol	Support MW-Ring and the recovery time<20 ms. Support STP/RSTP
Multicast Routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and Maintenance	Support Console and Web management methods Support SNMP v1/v2c Support unified PC software management
Technical Specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch Properties
Priority Queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC Table	8k
Switch Bandwidth	5.8Gbps
Switch Delay	<5μs
Interface
Gigabit Ports	Port numbers: 2
	Connector: SFP for fiber port (LC, single or multi-mode) or adaptive 10/100/1000M-Tx module
	Baud rate:1000Base-LX(fiber port), adaptive 10/100/1000M-Txport
10/100Base Port	Port numbers: 8
	Connector:9 fixed FX (single/multi-mode; SC/FC/ST) or RJ45 port
	Baud rate:100Base-FX; adaptive 10/100Base -Tx

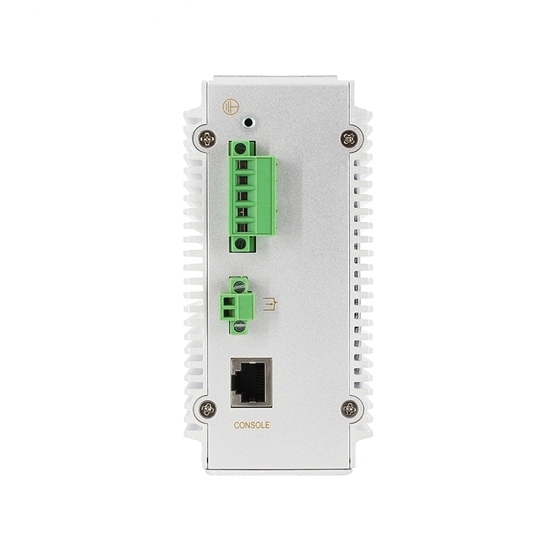

Console Port	RS232/RJ45
Terminal Block for Power Input	5.08mm terminal block
Terminal Block for Relay Alarm	5.08mm terminal block, 1A@24VDC
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
Multi-mode Fiber	Gigabit multi-mode: 850nm 550m 10/100Base multi-mode: 1310nm 2km
Single-mode Fiber	Gigabit single mode: 1310nm 20km 10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km

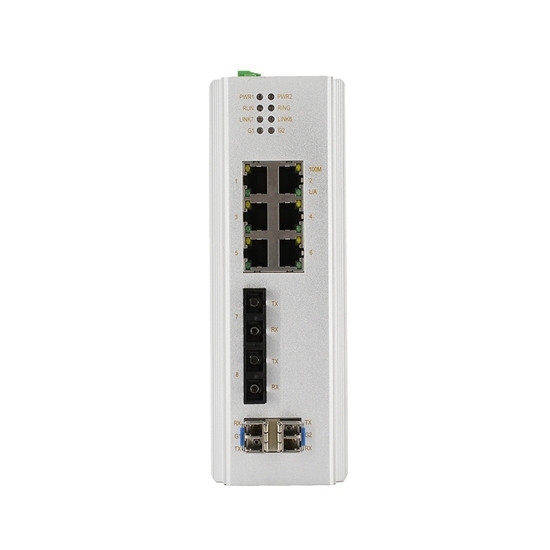

LED Indicator Lights
Front Panel LED	Port light: LINK/ACT;SPEED; Gx
	Running light: RUN
	Power LED: PWR1/PWR2
	Ring LED: RING
Power Requirements
Power Input	DC110-220V (DC110~370V range) or AC100-240V (AC85~264V range) DC12V/DC24V/DC48V available
Full-load Consumption	<10W
Overload Protection	support
Inversed Protection	support
Redundancy Protection	support
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail mounted installation
Dimension	56mm x 182mm x 128mm
Weight	1.2kg
Industry Standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6

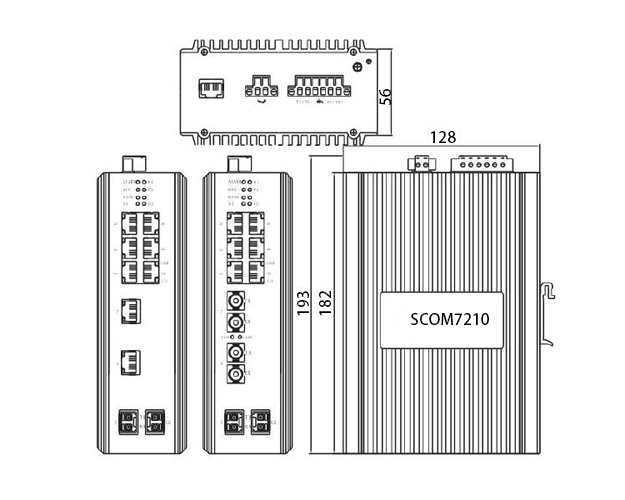

Dimensional Drawing (mm)

Tips: Notes for using industrial Ethernet switches
1. Do not place the switch near water source or wet place.
2. Do not put anything on the power cable.
3. In order to avoid fire, do not knot or wrap the cable.
4. Power connectors and other equipment connectors need to be firmly connected, and often check the solidity of the line.
5. Keep the fiber socket and plug clean. Do not look directly at the section of the fiber when the equipment is working.
6. Pay attention to the equipment cleaning, if necessary, wipe it with a cotton cloth.
7. When the equipment fails, do not repair it yourself for safety reasons.
