Affordable 8 ports layer 2 simple managed din-rail mounting industrial switch, optional single or dual power input, Ring redundancy technology and rugged industrial design, easily deploy or scale your network.

Specification

Note: Does not support built-in DC48V, DC48V needs to use external 48V to 12V power adapter.

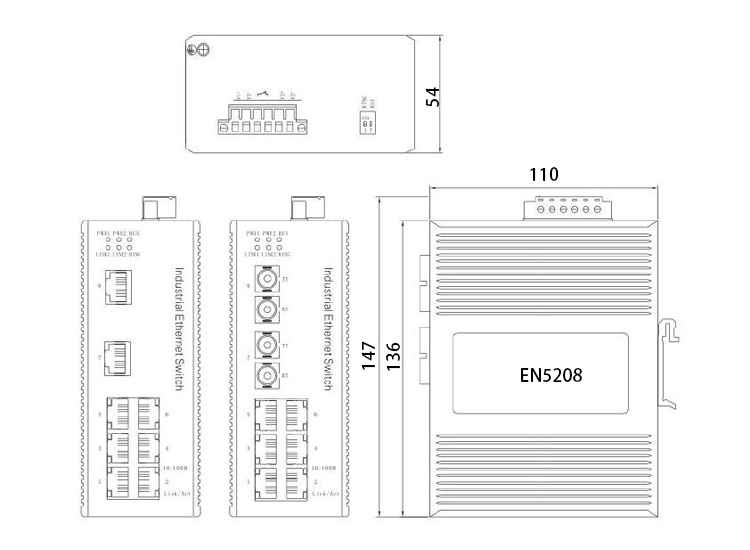

Dimensional Drawing (mm)

Tips: Industrial switch features and advantages
Industrial switches are also called industrial Ethernet switches. Industrial switches can withstand harsh working environments, the port configuration is flexible, it can meet the needs of various industrial control fields. What are the advantages of industrial switches?
1. Industrial grade components
Industrial switches have high requirements for component selection and can withstand harsh environments, so they can be well adapted to industrial environments and support industrial applications in harsh environments.
2. Fast ring network, fast redundancy
Industrial switches generally have fast ring network and fast redundancy, and the system redundancy time can be less than 50ms. Although commercial switches can also form redundant networks, the self-healing time is more than 10 to 30 s, which cannot meet the needs of industrial environments.
3. Superior anti-interference performance
It can work in harsh electromagnetic environment and has high protection level in lightning protection, waterproof, anti-corrosion, anti-shock, anti-static and so on.
4. Adapt to a wide temperature environment
Industrial switches generally use metal casing for better heat dissipation and greater protection. They can work normally in the temperature range of -40 ° C - + 75 ° C, and can adapt to complex temperature and humidity. Commercial switches can only work in the range of 0 °C - +50 °C, which can not meet the working requirements in harsh climates.
5. Redundant power supply design
Power supply is a very important part of industrial switches. Power failures generally account for more than 35% of equipment failure rates. To avoid the trouble of power failure, industrial switches use dual power supply redundancy to ensure stable and reliable operation.
6. long lasting
From the shell material to the ancillary components, the industrial grade solution is adopted, so the product has higher reliability and longer service life, and the service life is generally >10 years.
