5 Port Managed Industrial Switch, Layer 2, Din Rail


$601.00
Best selling 5 port Layer 2 managed 10/100Base Ethernet switch, except the traditional two 100MF(x) ports & three 10/100M
SKU: CHN-ES-EN5205C
Free Shipping Worldwide
Delivery date: 6-12 days

Five ports managed Ethernet switch for industrial communication front-end data access, support VLAN/ Qos/ Port link aggregation/ port mirroring, STP/RSTP for network redundancy, with advanced management and security features.

Specification

ModelCHN-EN5205C
Software Performance
Redundancy ProtocolSupport MW-Ring and the recovery time<20 ms.
Support STP/RSTP
Multicast RoutingSupport IGMP snooping/ IGMP v1/v2/v3
Support GMRP
Support static multicast
Management and MaintenanceSupport Console and Web management methods
Support SNMPv1/v2c
Support unified PC software management
Technical Specifications
Ethernet StandardIEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-FX
IEEE802.3x-Flow Control
IEEE802.1p -Class of Service
Switch Properties
Priority Queue4
VLAN ID1-4096
IGMP Groups256
MAC Table1k
Switch Bandwidth1Gbps
Switch Delay<5μs
Interface
10/100Base PortsPort numbers: 5 (2x10/100Base-F(x) + 3x10/100Base-T(x))
Connector: 9 fixed F(x) (Single/multi-mode or SC/FC/ST port available) or RJ45
Baud rate: 100Base-FX (fiber port), 10/100M for adaptive port
Serial Port

Port numbers: support 2 RS232 or RS485
Connector: 6-core locking 3.08mm terminal block
Baud rate: 300-115.2Kbps
CAN PortPort numbers: 2
Connector: 6-core locking 3.08mm terminal block
Baud rate: 1MB/s(MAX)
Terminal Block for
Power Input
2-core locking 5.08mm terminal block
Communication Distance
Twisted-pair100m (CAT5/CAT5e cable)
Multi-mode Fiber10/100Base multi mode: 1310nm 2km
Single-Mode Fiber10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km
LED Indicator Lights
LEDPower States LED, 10/100BaseF(x) LED, 10/100BaseT(x) LED, Data LED
Support customer's own external indicator
Restart ButtonSupport
ResetSupport
Ring Dialing CodeSupport
Power Requirements
Power InputDC12-48V available
Full-load Consumption<3.7W
Working Environment
Operating Temperature-40°C~85°C
Storage Temperature-40°C~85°C
Ambient Humidity5%~95% ( non-condensing)
Physical Characteristics
ShellIP40 protection, aluminum alloy shell
Installation35mm din rail-mounted installation
Dimension54mm x 138mm x 110mm
Weight600g

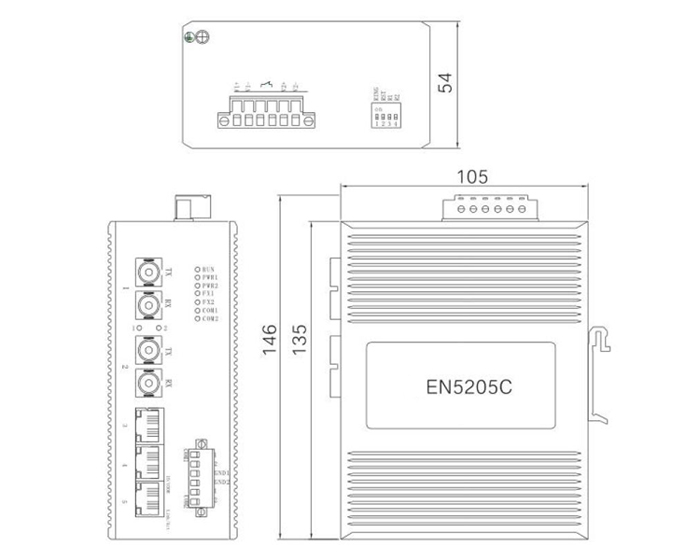

Dimensional Drawing (mm)

5-port din rail mannaged industrial switch dimension

Tips: What is the difference in the IP protection level of industrial switches?
When purchasing an industrial Ethernet switch, the user usually selects an industrial switch with the appropriate degree of protection according to the environment in which it is used.
For industrial switches, the IP protection level is the index of dust and water resistance, so what causes the difference in the index? This is mainly related to the housing material of the switch. Industrial switches are mainly made of aluminum alloy and galvanized steel. In comparison, aluminum alloys have a higher degree of protection.
Switches with a general protection rating of more than IP30 can be adapted to harsh industrial environments. The industrial switch provided by ATO.com has an IP40 degree of protection, which ensures that industrial switches can communicate securely and reliably.
