Home > Transmission & Actuator > Shaft Coupling > Jaw Coupling

Send Inquiry

Flexible Jaw Coupling, 40 x 66mm

$179.98

Flexible stainless steel jaw coupling ΦD 40mm x L 66mm, strong colloid wear resistance, plum coupling can be disassembled and

SKU: CHN-SC-GFCG-4066

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Plum clamp coupling bore size 0.3 inch to 0.9 inch, diameter 0.3 inch, length 2.5 inch, suitable for connecting two coaxial transmission shafts, with compensation for the relative offset of the two shafts, shock absorption, wear resistance and buffering performance.

Specification

Model: CHN-SC-GFCG-4066
Rated Torque: 48 Nm
Eccentricity Allowed: 0.02mm
Bore: 8 to 24mm
Allowable Declination: 1∠°
Allowable Axial Deviation: ±0.60mm
Allowable Speed: 10000rpm
Static Torsional Stiffness: 550 Nm/rad
Moment of Inertia: 3.9 x 10^-5Nm
Bushing Material: 304 Stainless steel
Rubber Block Material: Polyurethane imported from Germany
Surface Treatment: Polished
Weight: 380g
Certificate: ISO9001, REACH, RoHS
Warranty: 12 Months

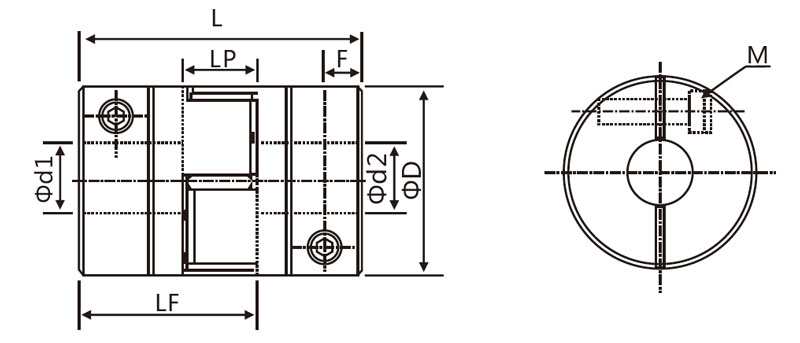

40 x 60mm Plum Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size: 6-6.35-7-8-9-10-11-12-12.7-14-15-16-17-18-19-20-22-24
ΦD: 40
L: 66
LF: 39.1
LP: 13.1
F: 8
M: M5
Tightening Torque: 8 Nm

Tips: Maintenance of the coupling

Partial disassembly and inspection of equipment, cleaning of specified parts, and dredging of pipes and valves.
Replace or clean the packing, observe whether the sealing part leaks, adjust the matching clearance of each part of the equipment, and fasten each part of the equipment.
Refuel and rust-proof the bolts of the motor and water pump.
Check whether the pressure gauges and control cabinets are normal, and repair or replace them if they are damaged.
Check the operation of the control cabinet and whether the internal components are normal.
