Flexible Jaw Coupling, 35 x 50mm

$178.96

Flexible jaw coupling size 35mm x 50mm, bore 8mm to 19mm, large bearing capacity, long service life, compensation for the rel

SKU: CHN-SC-GFCG-3550

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Stainless steel 8mm to 19mm jaw coupling, corrosion resistant and high hardness, surface polishing, widely used in 3D printers, DIY encoders, CNC routers, machines, servo stepping motors, etc.

Specification

Model: CHN-SC-GFCG-3550
Rated Torque: 21 Nm
Eccentricity Allowed: 0.02mm
Bore: 8 to 19mm
Allowable Declination: 1∠°
Allowable Axial Deviation: ±0.60mm
Allowable Speed: 10000rpm
Static Torsional Stiffness: 200 Nm/rad
Moment of Inertia: 8.1 x 10^-6Nm
Bushing Material: 304 Stainless steel
Rubber Block Material: Polyurethane imported from Germany
Surface Treatment: Polished
Weight: 185g
Certificate: ISO9001, REACH, RoHS
Warranty: 12 Months

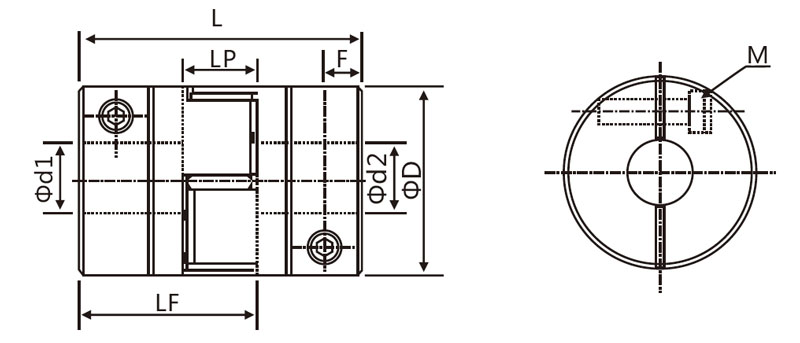

30mm x 50mm Jaw Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size: 5-6-6.35-7-8-9-10-11-12-12.7-14-15-16-17-18-19
ΦD: 35
L: 50
LF: 30
LP: 11.5
F: 6.5
M: M5
Tightening Torque: 8 Nm

Tips: Safe use of coupling

The coupling is not allowed to exceed the specified axis line skew and radial displacement, so as not to affect its transmission performance.
The bolts of the coupling shall not be loose or damaged; the keys of the coupling shall be closely matched and shall not be loose.
The gear coupling and the Oldham coupling should be lubricated regularly, and grease should be added once every 2 to 3 months, so as to avoid severe wear of the gear teeth and cause serious consequences.
The contact length of the tooth width of the gear coupling shall not be less than 70%, and its axial movement shall not exceed 5mm.
The coupling is not allowed to have cracks. If there are cracks, it needs to be replaced (it can be hit with a small hammer, and judged according to the sound).
The tooth thickness of the gear coupling is worn. When the wear amount of the lifting mechanism exceeds 15% of the original tooth thickness, the running mechanism should be scrapped when it exceeds 25%, and it should be scrapped when there are broken teeth.
If the elastic ring of the pin coupling and the sealing ring of the gear coupling are damaged and aged, they should be replaced in time.
